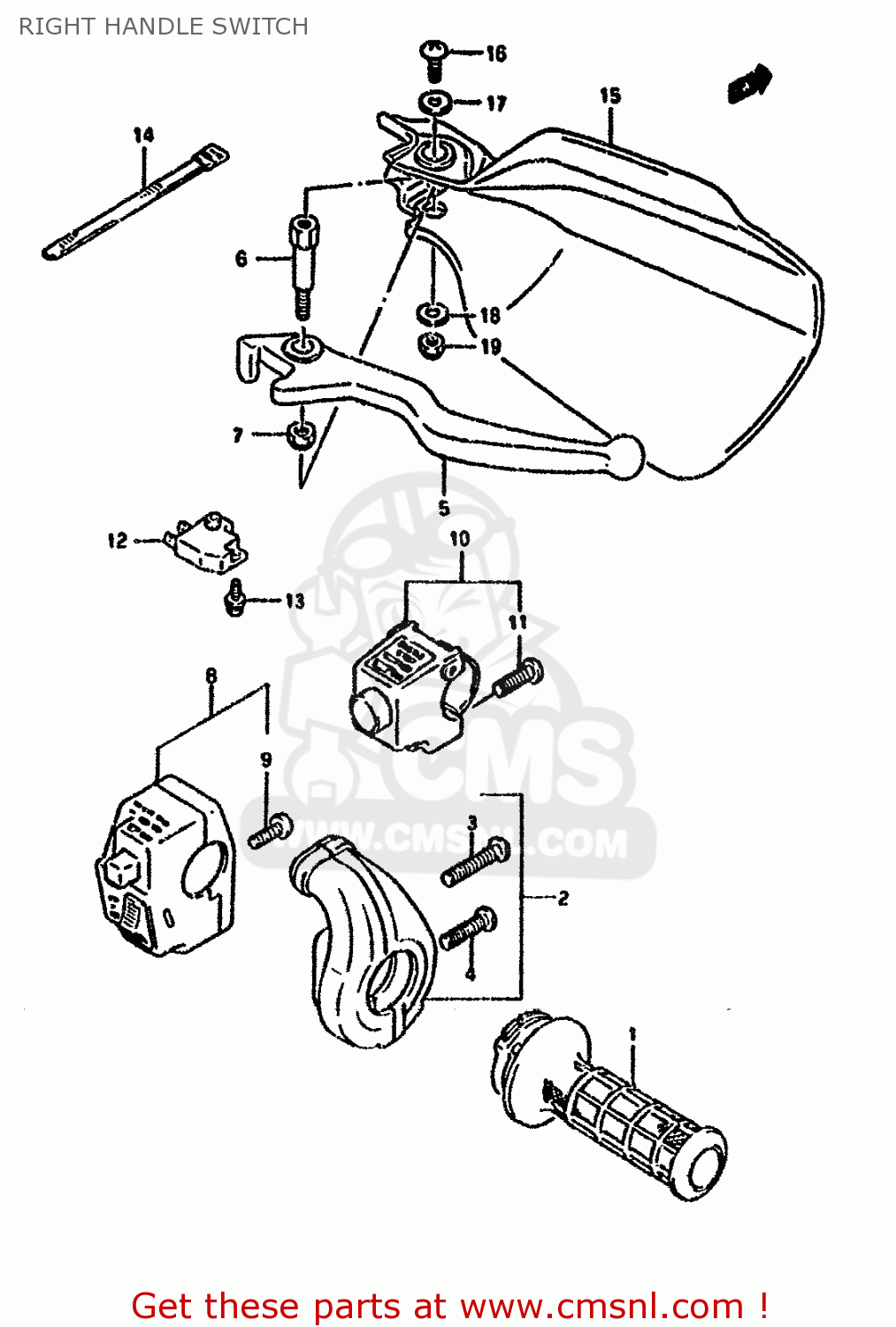

RIGHT HANDLE SWITCH

ref

part #

description

quantity

1

5711012D11
ref: 1

GRIP,THROTTLE

€ 25.50

2

5710014D00
ref: 2

CASE ASSY,THROTTLE

€ 24.00

3

0912505066
ref: 3

SCREW(5X25)

€ 2.00

4

0211205205
ref: 4

SCREW 5X20

€ 2.50

5

5742113001
ref: 5

LEVER,BRAKE

€ 18.00

6

5743105D00
ref: 6

BOLT,BRAKE LEVER PIVOT

€ 9.00

7

0831921065
ref: 7

NUT

€ 2.50

8

3720012E00
ref: 8

SWITCH ASSY,HANDLE RH

€ 93.50

9

0912505066
ref: 9

SCREW(5X25)

€ 2.00

10

3720012E10
ref: 10
E24

SWITCH ASSY, HANDLE RH

€ 0.00

11

0211205166
ref: 11
E24

SCREW

€ 2.00

12

5746017C00
ref: 12

SWITCH ASSEMBLY,STOP

€ 32.50

13

5746517C00
ref: 13

SCREW

€ 1.50

14

0940712402
ref: 14

CLAMP(L:120)

€ 3.00

15-1

5734105D0030H
ref: 15-1
MODEL N FOR 28X,29X

COVER,KNUCKLE,RIGHT

€ 18.00

15-2

5734105D000NF
ref: 15-2
MODEL P,FOR 28X MODE

COVER,KNUCKLE,R

€ 28.00

15-3

5734105D0028V
ref: 15-3
MODEL P,FOR 29X

COVER,KNUCKLE,R

€ 30.00

15-4

5734105D00019
ref: 15-4
MODEL R,FOR 019

COVER,KNUCKLE,RIGHT

€ 21.00

16-1

0912505042
ref: 16-1
MODEL N/P

SCREW(5X10)

€ 2.50

16-2

0214205107
ref: 16-2
MODEL R

SCREW

€ 2.50

17

0916005017
ref: 17

WASHER (5.5X16X1.2)

€ 2.50

18

0916006042
ref: 18

WASHER (6.5X17X1.6)

€ 2.00

19

0831921068
ref: 19

NUT 6MM

€ 2.00
