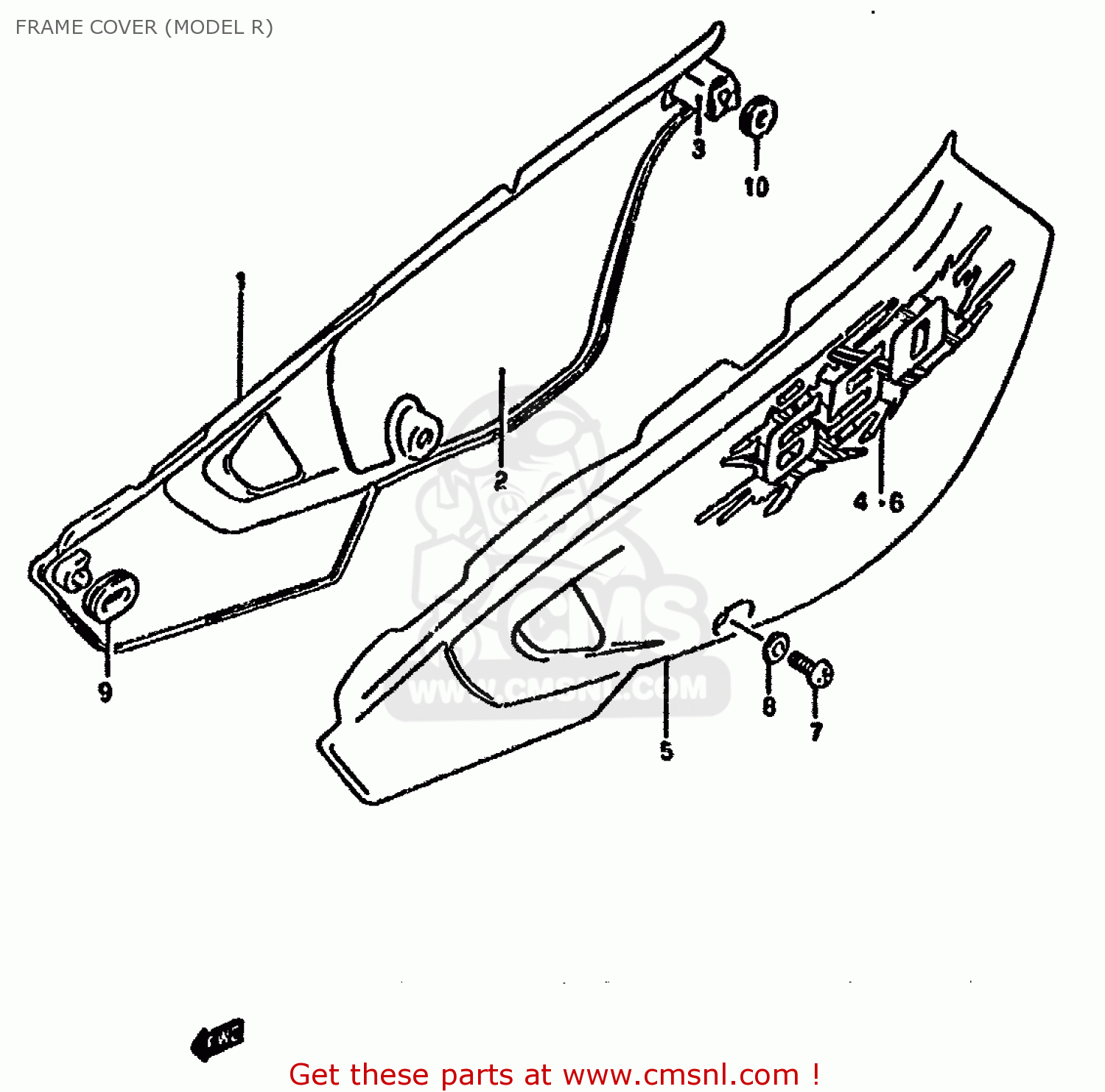

FRAME COVER (MODEL R)

ref

part #

description

quantity

1-1

4711112E0030H
ref: 1-1

COVER,FRAME,RIGHT

€ 108.50

1-2

4711112E00019
ref: 1-2

COVER,FRAME,R(BLACK)

€ 106.00

2

4716612E00
ref: 2

SHIELD,FRAME COVER,R

€ 47.50

3

4716712E00
ref: 3

SHIELD,FRAME COVER,R NO.2

€ 7.00

4-1

6813112E101WN
ref: 4-1
E21,E53 FOR 30H

TAPE,LH

€ 33.50

4-2

6813112E10C9D
ref: 4-2
E21,E53 FOR 019

TAPE,RH

€ 0.00

5-1

4721112E0030H
ref: 5-1

COVER,FRAME,L(WHITE)

€ 106.00

5-2

4721112E00019
ref: 5-2

COVER,FRAME,L(BLACK)

€ 106.00

6-1

6813112E101WN
ref: 6-1
E21,E53 FOR 30H

TAPE,LH

€ 33.50

6-2

6813112D10C9D
ref: 6-2
E21,E53 FOR 019

TAPE,LH

€ 0.00

7

0214206167
ref: 7

SCREW

€ 2.00

8

0916906028
ref: 8

WASHER

€ 2.00

9

0932008029
ref: 9

CUSHION

€ 2.50

10

0932008028
ref: 10

CUSHION

€ 2.50

10-2

4721012E0029X
ref: 10-2
MODEL N

COVER,FRAME LH (WHITE)

€ 106.00

11-1

6814512E00A1F
ref: 11-1
MODEL N FOR 28X

TAPE,LH

€ 81.00

11-2

6814512E00A1G
ref: 11-2
MODEL N FOR 29X

TAPE,LH

€ 0.00

12-1

4721012E2028X
ref: 12-1
MODEL P

COVER,FRAME,LEFT

€ 106.00

12-2

4721012E2029X
ref: 12-2
MODEL P

COVER,FRAME LH (WHITE)

€ 106.00

13-1

6814512E20A4F
ref: 13-1
MODEL P FOR 28X

EMBLEM,FRAME COVER,LEFT

€ 26.50

13-2

6814512E20A7T
ref: 13-2
MODEL P FOR 29X

EMBLEM,LH

€ 26.50

14

6814612E00
ref: 14
MODEL P

TAPE,FRAME COVER NO.2

€ 19.50

15

0214206167
ref: 15

SCREW

€ 2.00

16

0916906028
ref: 16

WASHER

€ 2.00

17

0932008029
ref: 17

CUSHION

€ 2.50

18

0932008028
ref: 18

CUSHION

€ 2.50

19

0932110018
ref: 19

CUSHION

€ 5.00

all assemblies
