REAR MASTER CYLINDER
DR650RU 1992 (N) GERMANY (E22)

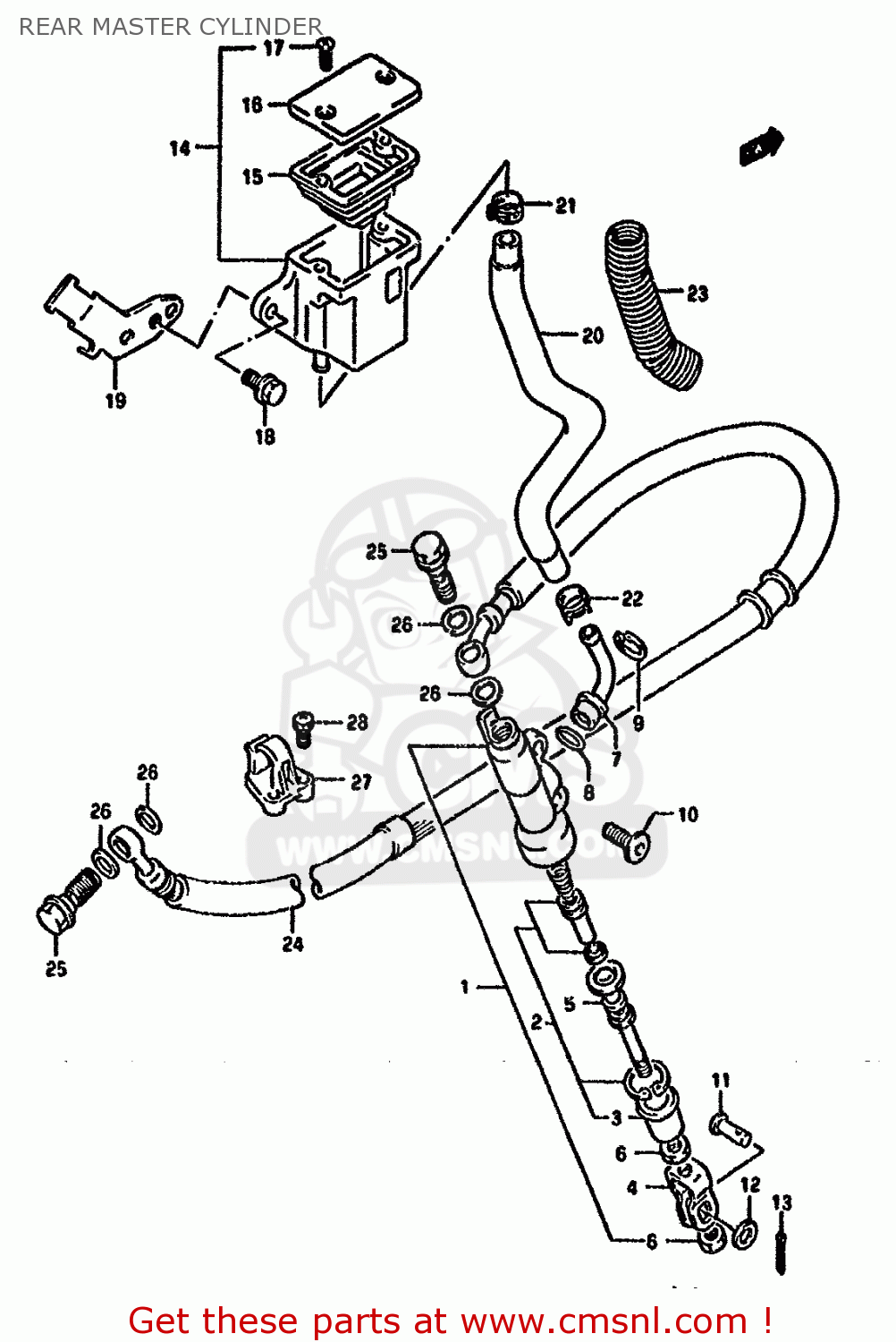

Rear master cylinder diagram DR650RU 1992 (N) GERMANY (E22)
REAR MASTER CYLINDER DR650RU 1992 (N) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
6960014A51
ref: 1
CYLINDER ASSY,RR MASTER
€ 168.50
2
6960034820
ref: 2
PISTON/CUP SET
€ 37.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969227A30
ref: 4
YOKE
€ 12.50
5
6967000B21
ref: 5
ROD,PUSH
€ 24.00
6
6969305A00
ref: 6
NUT
€ 1.50
7
6967200B20
ref: 7
CONNECTOR
€ 5.00
8
6968634200
ref: 8
O RING
€ 3.50
9
6967400B20
ref: 9
CIRCLIP
€ 3.00
10
0910606064
ref: 10
BOLT(6X18)
€ 6.00
11
0920006037
ref: 11
PIN
€ 5.00
12-1
0832221067
ref: 12-1
MODEL N/P
WASHER
€ 2.00
12-2
0832201063
ref: 12-2
MODEL R
WASHER
€ 2.00
13
0411120158
ref: 13
PIN
€ 1.50
14
6974038B21
ref: 14
TANK ASSY,RESERVOIR
€ 85.50
15
5966704700
ref: 15
DIAPHRAGM
€ 8.00
16
5966905D00
ref: 16
CAP
€ 13.50
17
6968904A00
ref: 17
SCREW
€ 2.00
18-1
0151706128
ref: 18-1
MODEL N/P
BOLT
€ 2.50
18-2
0155006123
ref: 18-2
MODEL R
BOLT
€ 2.50
19
6975012D02
ref: 19
PLATE COMP,RESERVOIR T
€ 0.00
20
6973012D00
ref: 20
HOSE COMP,RESERVOIR TANK
€ 16.00
21
0940113413
ref: 21
CLIP
€ 2.50
22-1
0940112402
ref: 22-1
MODEL N/P
CLAMP
€ 2.50
22-2
0940112404
ref: 22-2
MODEL R
CLIP
€ 2.50
23-1
6973212D00
ref: 23-1
MODEL N/P
SHIELD,RESERVOIR TANK HOSE
€ 10.50
23-2
6973212D10
ref: 23-2
MODEL R
SHIELD,RSVR TANK HOSE HEAT RR
€ 10.50
24
6948012D00
ref: 24
HOSE COMP,REAR BRAKE
€ 109.50
25-1
0936010017
ref: 25-1
MODEL N/P
BOLT UNION
€ 6.50
25-2
0936010039
ref: 25-2
MODEL R
BOLT UNION
€ 6.50
26
0916110009
ref: 26
WASHER(10X15X1.5)
€ 2.00
27
6119603D00
ref: 27
GUIDE,RR BRAKE HOSE
€ 3.00
28-1
0211235168
ref: 28-1
MODEL N/P
SCREW
€ 2.50
28-2
0211235163
ref: 28-2
MODEL R
SCREW
€ 2.50
