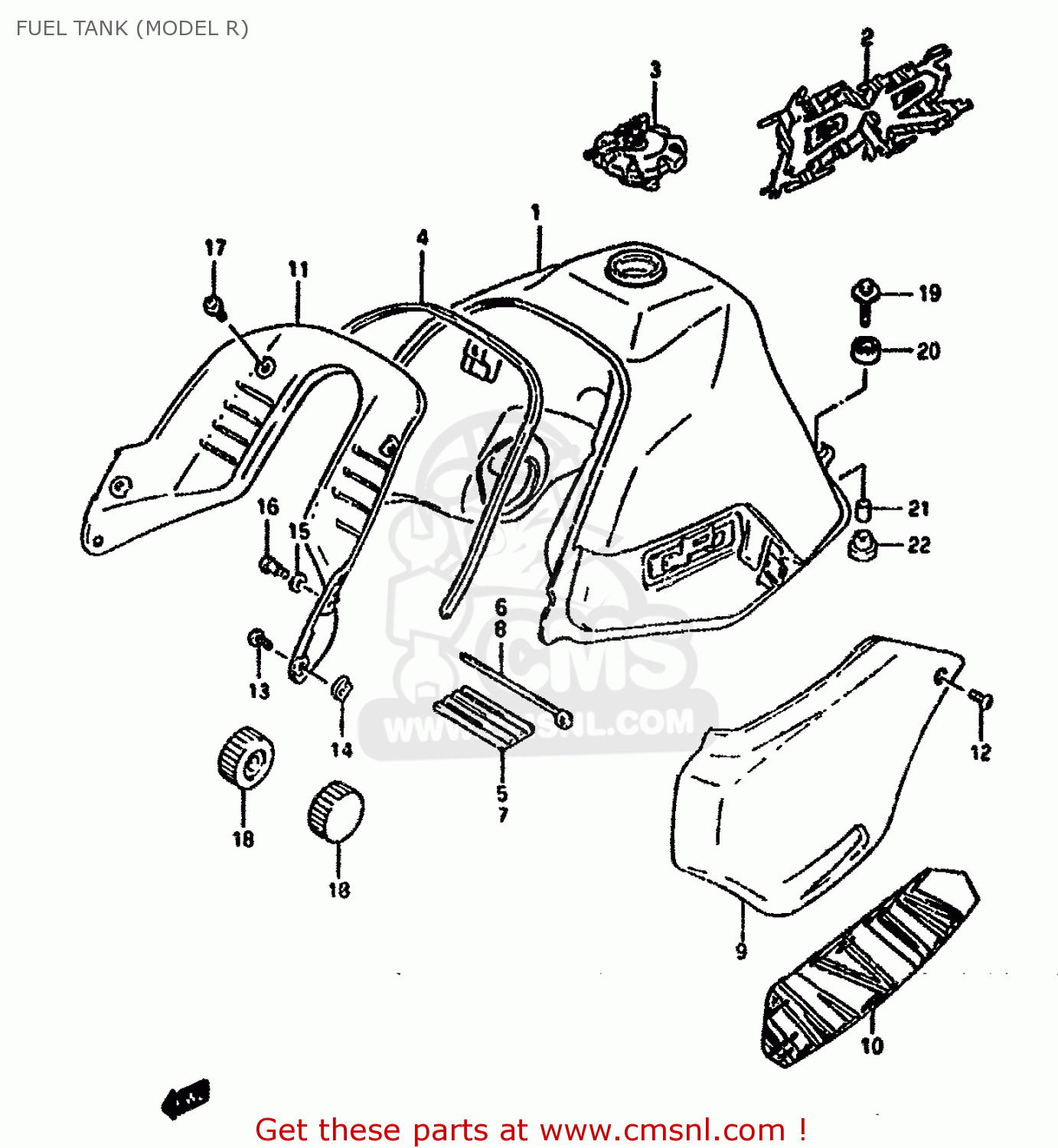

FUEL TANK (MODEL R)

ref

part #

description

quantity

1-1

4410012E8030K
ref: 1-1

TANK ASSY,FUEL (WHITE)

€ 0.00

1-2

4410012E80019
ref: 1-2

TANK ASSY, FUEL (BLACK)

€ 672.00

1-3

4410012E9030H
ref: 1-3
E22

TANK ASSY,FUEL(WHITE)

€ 706.50

1-4

4410012E90019
ref: 1-4
E22

TANK ASSY, FUEL (BLACK)

€ 672.00

2-1

6812012E001WN
ref: 2-1
FOR 30H

EMBLEM SET,FUEL TANK

€ 74.00

2-2

6812012E00C9D
ref: 2-2
FOR 019

TAPE SET, FUEL TANK

€ 73.00

3

4420012850
ref: 3

CAP SET,FUEL TANK

€ 126.00

4

6824112E00
ref: 4

MOLDING,FUEL TANK

€ 18.00

5

4454114500
ref: 5

CUSHION,FUEL TANK UPR FR

€ 4.50

6

0940720401
ref: 6

CLAMP

€ 4.50

7

4454212E00
ref: 7

CUSHION,TANK UPR RR

€ 18.00

8

0940730402
ref: 8

CLAMP(L:300)

€ 3.50

9-1

4417112E1030H
ref: 9-1

COVER,FUEL TANK,R

€ 89.00

9-2

4417112E10019
ref: 9-2

COVER,FUEL TANK SIDE,RIGHT

€ 89.00

9-3

4418112E1030H
ref: 9-3

COVER,FUEL TANK,L

€ 72.50

9-4

4418112E10019
ref: 9-4

COVER,FUEL TANK SIDE,L

€ 89.00

10-1

6812112E20C5T
ref: 10-1
FOR 30H

TAPE,TANK COVER,R

€ 38.50

10-2

6812112E20C9B
ref: 10-2
FOR 019

TAPE, TANK COVER RH

€ 41.00

10-3

6812212E20C5T
ref: 10-3
FOR 30H

TAPE,TANK COVER,LEFT

€ 41.00

10-4

6812212E20C9B
ref: 10-4
FOR 019

TAPE, TANK COVER LH

€ 41.00

11

4427112E00
ref: 11

COVER,FUEL TANK,FRONT

€ 41.50

12

0214206107
ref: 12

SCREW

€ 2.00

13

0324105163
ref: 13

SCREW

€ 1.50

14

0914805013
ref: 14

NUT

€ 1.50

15

0916007011
ref: 15

WASHER (5.1X20X1.4)

€ 2.00

16

0913905037
ref: 16

SCREW(5X18)

€ 2.00

17

0214205103
ref: 17

SCREW

€ 2.50

18

4451112D00
ref: 18

CUSHION,FUEL TANK FR

€ 5.50

19

0911606078
ref: 19

BOLT

€ 2.50

20

0932014022
ref: 20

CUSHION

€ 4.00

21

0918006072
ref: 21

SPACER

€ 2.00

22

0932010020
ref: 22

CUSHION

€ 4.00

all assemblies
