HANDLEBAR
DR650RU 1992 (N) GERMANY (E22)

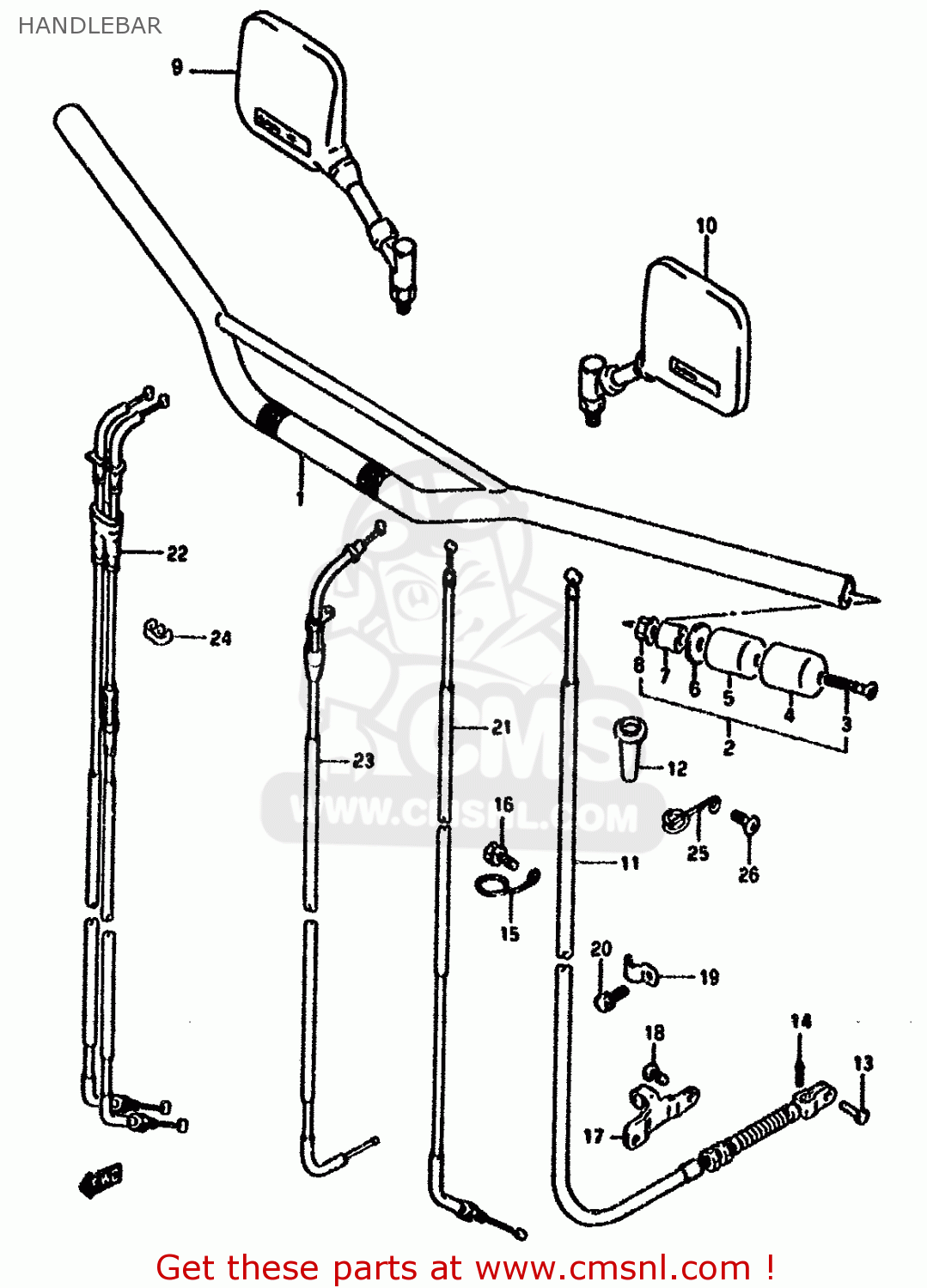

Handlebar diagram DR650RU 1992 (N) GERMANY (E22)
HANDLEBAR DR650RU 1992 (N) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
5611012E00291
ref: 1-1
-56110-12E01-291
HANDLEBAR
€ 116.50
1-2
5611012E01291
ref: 1-2
HANDLEBAR
€ 116.50
2-1
5620036810
ref: 2-1
MODEL N/P
BALANCER SET,HANDLEBAR
€ 88.00
2-2
5620012810
ref: 2-2
MODEL R
BALANCER SET,HANDLEBAR
€ 88.00
3-1
0213206655
ref: 3-1
MODEL N/P
SCREW 6X65
€ 2.50
3-2
0212206653
ref: 3-2
MODEL R
SCREW
€ 2.50
4
5627405350
ref: 4
CAP,BALANCER
€ 223.50
5
5627149420
ref: 5
BALANCER,HANDLE
€ 19.50
6
5627534400
ref: 6
SPACER,BALANCER
€ 2.50
7
5627244500
ref: 7
EXPANDER,HANDLE BALANCER
€ 3.00
8
0915906024
ref: 8
NUT
€ 2.00
9-1
5650012D02
ref: 9-1
MIRROR ASSEMBLY,REAR VIEW
€ 101.50
9-2
5650012D12
ref: 9-2
E24
MIRROR ASSY,RR VIEW,R
€ 101.50
10-1
5660012D02
ref: 10-1
MIRROR ASSEMBLY,REAR VIEW
€ 102.50
10-2
5660012D12
ref: 10-2
E24
MIRROR ASSY,RE
€ 58.00
11
5820012E00
ref: 11
CABLE ASSY,CLUTCH
€ 39.00
12
5827331000
ref: 12
BOOT,CLUTCH CABLE
€ 2.50
13
0920006004
ref: 13
PIN(L:13)
€ 1.50
14
0411120158
ref: 14
PIN
€ 1.50
15
5862117200
ref: 15
GUIDE
€ 5.50
16-1
0113706165
ref: 16-1
MODEL N/P
BOLT
€ 2.50
16-2
0157006163
ref: 16-2
MODEL R
BOLT
€ 2.50
17
5863437410
ref: 17
STOPPER,CLUTCH CABLE
€ 4.50
18-1
0211206125
ref: 18-1
MODEL N/P
SCREW
€ 1.50
18-2
0211206123
ref: 18-2
MODEL R
SCREW
€ 1.50
19
0940309306
ref: 19
CLAMP
€ 2.00
20-1
0151706125
ref: 20-1
MODEL N/P
BOLT 6X12
€ 2.50
20-2
0155006123
ref: 20-2
MODEL R
BOLT
€ 2.50
21
5890012E00
ref: 21
CABLE ASSY,DECOMP
€ 33.50
22
5830012E01
ref: 22
CABLE ASSY,THROTTLE
€ 97.50
23
5841012E00
ref: 23
CABLE,STARTER
€ 39.00
24
0940800066
ref: 24
CLIP
€ 1.50
25
5829427C00
ref: 25
GUIDE,CLUTCH CABLE
€ 8.00
26-1
0215206125
ref: 26-1
MODEL N
SCREW
€ 1.50
26-2
0215206127
ref: 26-2
MODEL P
SCREW
€ 2.00
26-3
0211216123
ref: 26-3
MODEL R
SCREW
€ 2.00
