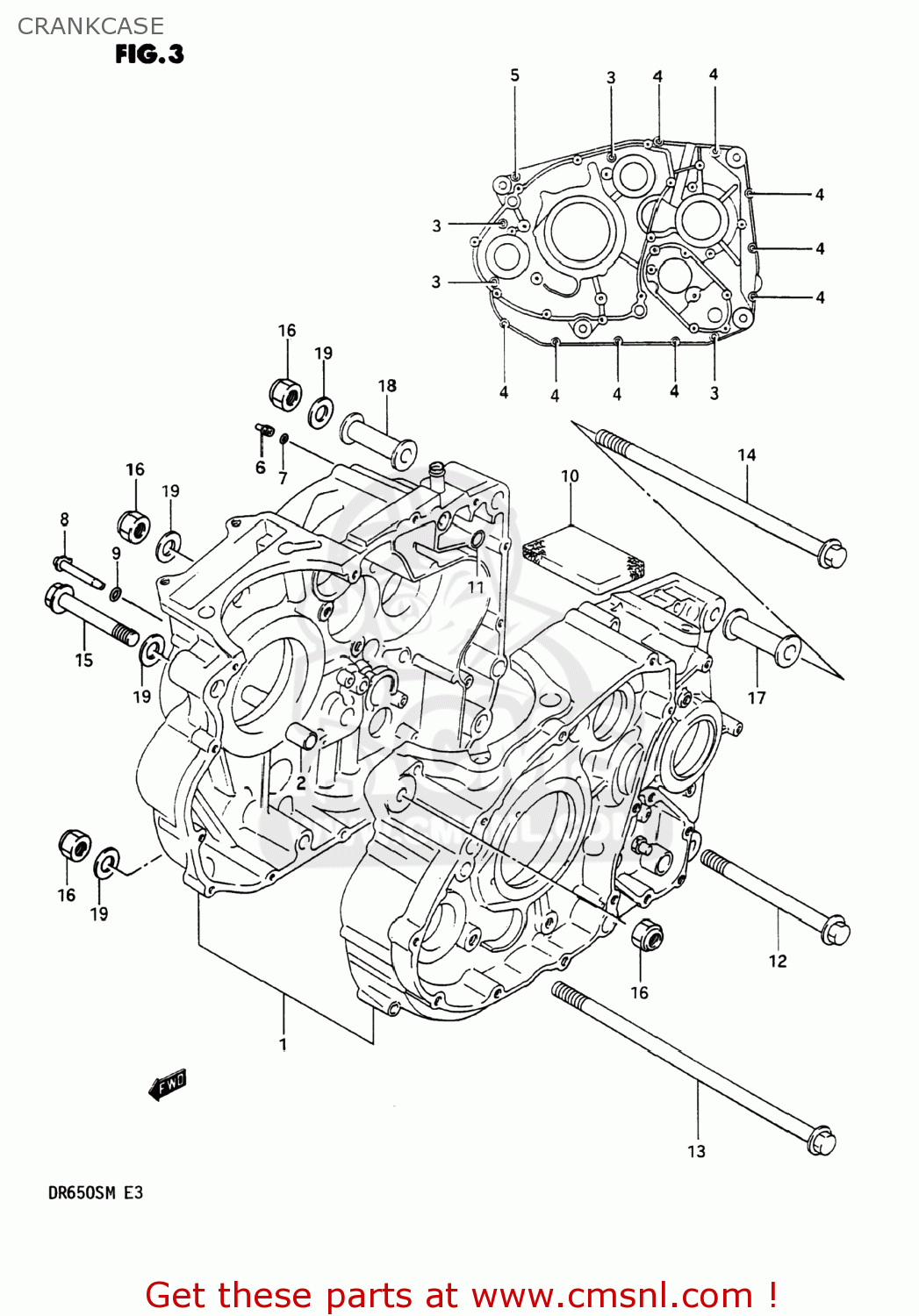

CRANKCASE

ref

part #

description

quantity

1

1130112830
ref: 1
11301-12832

CRANKCASE SET

€ 616.00

2

0920613001
ref: 2
04211-13189

PIN

€ 2.50

3

0154706605
ref: 3
01547-0660B

BOLT (6X60)

€ 3.50

4

0154706404
ref: 4
01547-0640B

BOLT 6X40

€ 3.00

5

0154706304
ref: 5
01547-06307

BOLT 6X30

€ 2.50

6

0949324012
ref: 6

JET(12)

€ 10.50

7

0928004004
ref: 7

O RING(D:1.2,ID:4)

€ 2.00

8

1139012D00
ref: 8
11390-12D01

PIPE,PISTON COOLING

€ 20.00

9

0928008016
ref: 9
09280-08012

O-RING

€ 4.00

10

1132814A02
ref: 10
11328-14A03

SEPARATOR,OIL BREATHER

€ 4.50

11

0928009004
ref: 11
09280-09005

O-RING

€ 4.00

12-1

0910310065
ref: 12-1
09103-10237

BOLT

€ 5.50

12-2

0910310237
ref: 12-2

BOLT(10X130)

€ 5.50

13-1

0910310099
ref: 13-1
09103-10238-XC0

BOLT

€ 17.00

13-2

0910310238
ref: 13-2
09103-10238-XC0

BOLT 10X230

€ 17.00

14-1

0910310084
ref: 14-1
09103-10239

BOLT

€ 12.00

14-2

0910310239
ref: 14-2

BOLT(10X235)

€ 12.00

15-1

0910310098
ref: 15-1
09103-10240

BOLT

€ 7.00

15-2

0910310240
ref: 15-2

BOLT(10X80)

€ 7.00

16

0915910044
ref: 16
09159-10115

NUT (10MM)

€ 4.00

17

1161014A00
ref: 17

SPACER,ENG MTG(L:55)

€ 9.00

18

1161045410
ref: 18

SPACER,ENGINE MOUNT(L:65)

€ 11.50

19

0832211104
ref: 19
08322-0110A

WASHER 10MM

€ 2.50
