RIGHT HANDLE SWITCH
DR650S 1991 (M) USA (E03)

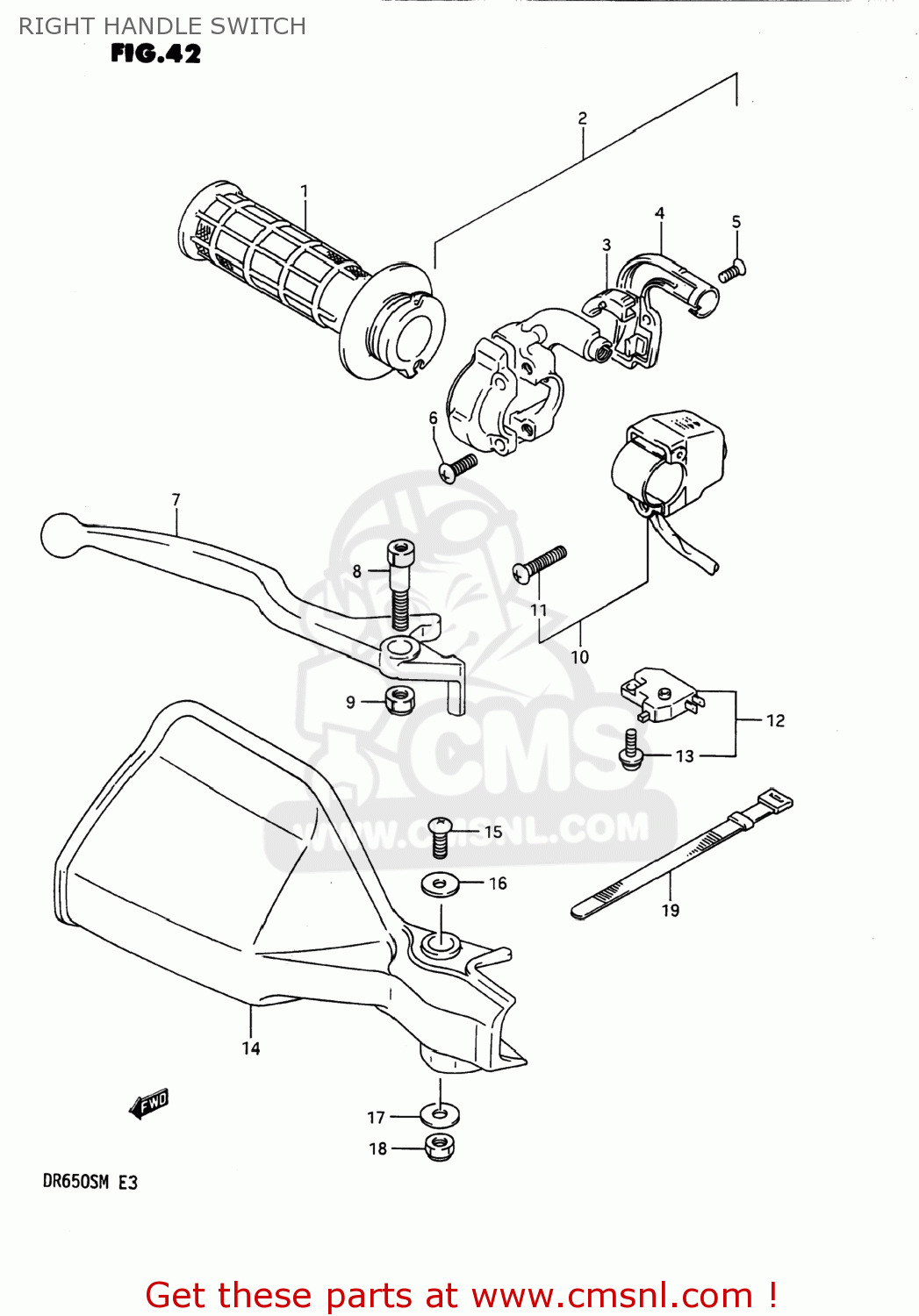

Right handle switch diagram DR650S 1991 (M) USA (E03)
RIGHT HANDLE SWITCH DR650S 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711012D00
ref: 1
GRIP,THROTTLE
€ 26.50
2
5710028B00
ref: 2
57100-13601
CASE ASSEMBLY,THROTTLE
€ 34.00
3
5712213600
ref: 3
GUIDE PIECE,THROTTLE
€ 7.50
4
5712913601
ref: 4
COVER,THROTTLE CASE
€ 7.00
5
0213204105
ref: 5
02122-0410A
SCREW 4X10
€ 2.50
6
0211205164
ref: 6
SCREW
€ 2.00
7
5742113001
ref: 7
LEVER,BRAKE
€ 18.00
8
5743105D00
ref: 8
BOLT,BRAKE LEVER PIVOT
€ 9.00
9
0831921068
ref: 9
08319-2106A
NUT 6MM
€ 2.00
10
3720014A10
ref: 10
37200-44E00
SWITCH ASSEMBLY,HANDLE,RIGHT
€ 51.50
11
0211205166
ref: 11
02112-0516A
SCREW
€ 2.00
12
5746017C00
ref: 12
57460-17C01
SWITCH ASSEMBLY,STOP
€ 32.50
13
5746517C00
ref: 13
SCREW
€ 1.50
14
5734105D000NF
ref: 14
COVER,KNUCKLE,R
€ 28.00
15
0912505042
ref: 15
SCREW(5X10)
€ 2.50
16
0916005017
ref: 16
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
17
0916006042
ref: 17
09160-06130
WASHER (6.5X17X1.6)
€ 2.00
18
0831921068
ref: 18
08319-2106A
NUT 6MM
€ 2.00
19
0940712402
ref: 19
CLAMP(L:120)
€ 3.00
