FUEL COCK

DR650S 1991 (M) USA (E03)

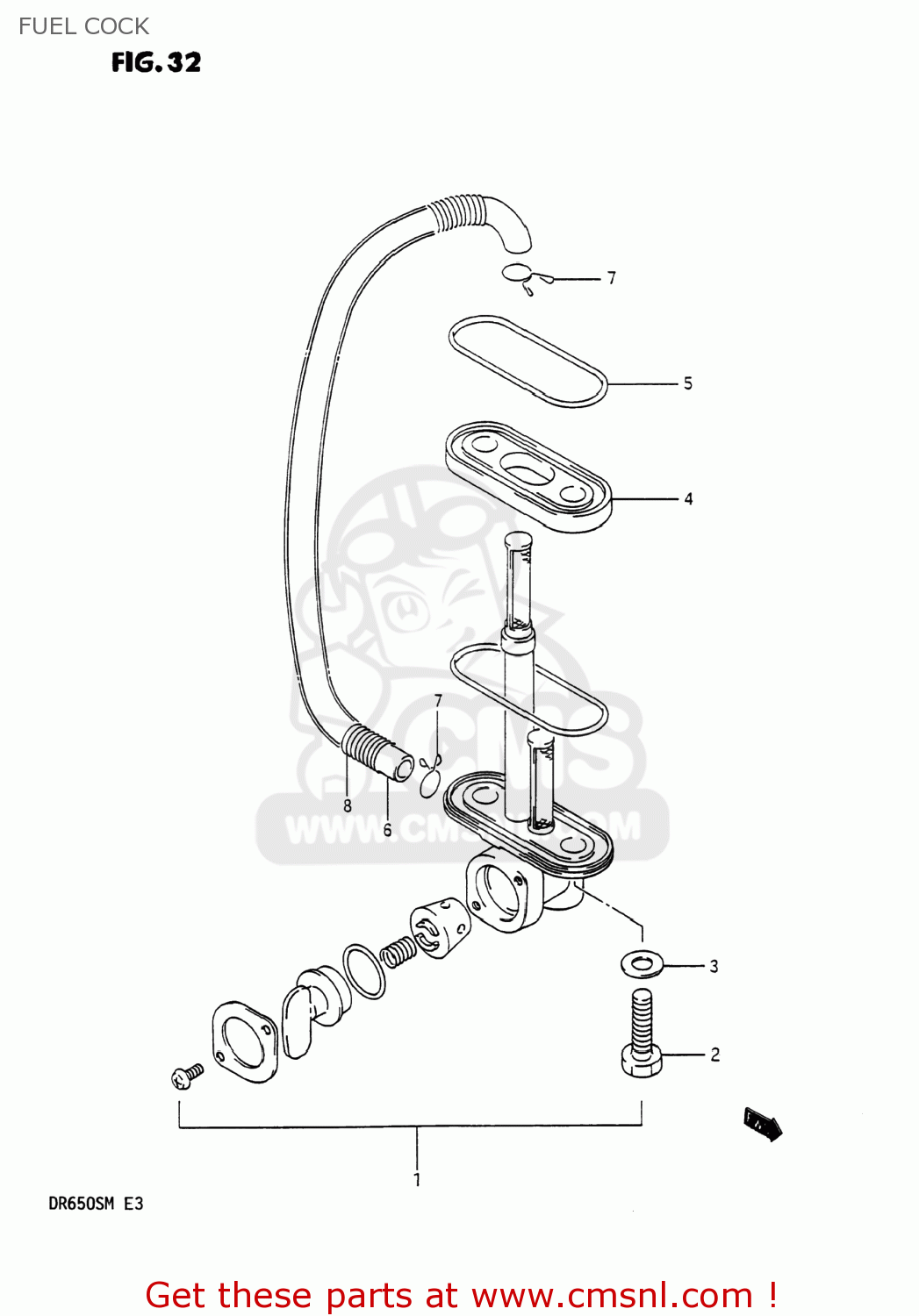

Fuel cock diagram DR650S 1991 (M) USA (E03)

FUEL COCK DR650S 1991 (M) USA (E03)

FUEL COCK DR650S 1991 (M) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4430014C70
ref: 1

COCK ASSY,FUEL

€ 108.00

2

0912806006
ref: 2
09128-06057

BOLT(6X20)

€ 2.00

3

0916806026
ref: 3

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

4

4436514A00
ref: 4

SPACER,FUEL COCK

€ 12.00

5

4436614A00
ref: 5

GASKET,FUEL COCK (NAS)

€ 2.50

6

0935270103300
ref: 6
09352-70103-600

HOSE

€ 8.00

7

0940110402
ref: 7

CLIP

€ 7.00

8

0944013050
ref: 8
09440-13041

SPRING

€ 3.50
