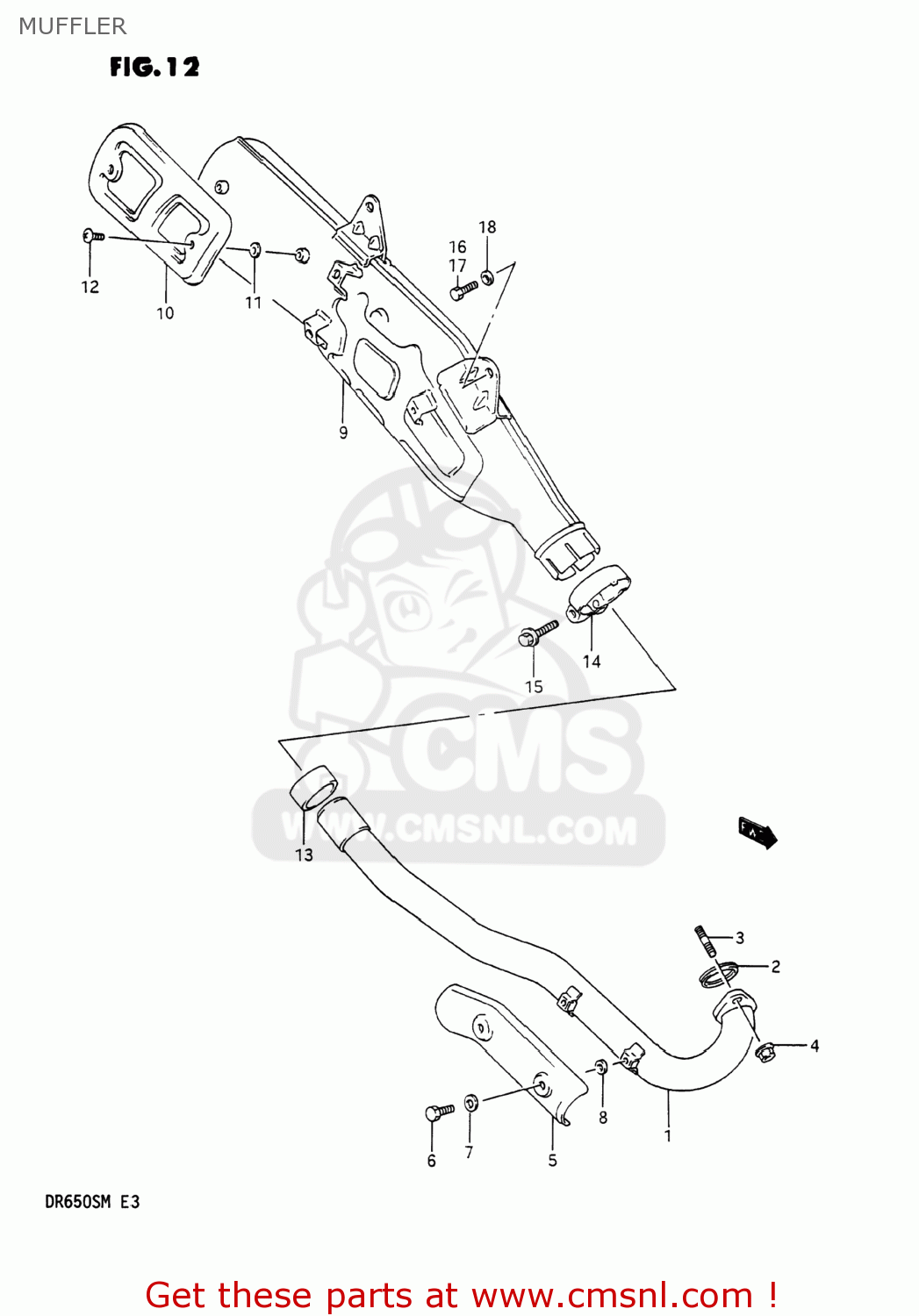

MUFFLER

ref

part #

description

quantity

1-1

1415014A20
ref: 1-1
14150-14A22

PIPE,EXHAUST

€ 149.00

1-2

1415014A21
ref: 1-2
14150-14A22

PIPE,EXHAUST

€ 149.00

2

1418101D00
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 8.00

3

0910808106
ref: 3

BOLT,STUD(8X20)

€ 3.00

4

0831626085
ref: 4
08316-2008A

NUT M8

€ 1.50

5

1418012D00
ref: 5

COVER,EXHAUST PIPE

€ 38.00

6

0913906041
ref: 6
09139-06076

SCREW

€ 2.50

7

0916006056
ref: 7

WASHER(6.5X18X1)

€ 2.00

8

0916806122
ref: 8

GASKET(6X16X1.4) (NAS)

€ 2.50

9

1431015A20H01
ref: 9

BODY,MUFFLER

€ 450.50

10

1478114A10
ref: 10

COVER,MUFFLER

€ 15.50

11

1418114A00H17
ref: 11
09168-06121

GASKET,EXHAUST PIPE

€ 3.00

12

0214206104
ref: 12
02142-0610A

SCREW

€ 2.00

13-1

1477144B10
ref: 13-1
14771-44B00

CONNECTOR,MUFFLER

€ 19.50

13-2

1477144B00
ref: 13-2

CONNECTOR,MUFFLER

€ 19.50

14

1446905A00
ref: 14

CLAMP,MUFFLER CONNECTOR LH

€ 16.00

15

0151708405
ref: 15
01550-08407

BOLT 8X40

€ 3.50

16

0910608107
ref: 16

BOLT(8X20)

€ 2.00

17

0910608106
ref: 17

BOLT(8X20)

€ 3.00

18

0916008053
ref: 18
09160-08039

WASHER (8.5X19X2.3)

€ 2.00
