DR650S 1991 (M) USA (E03)

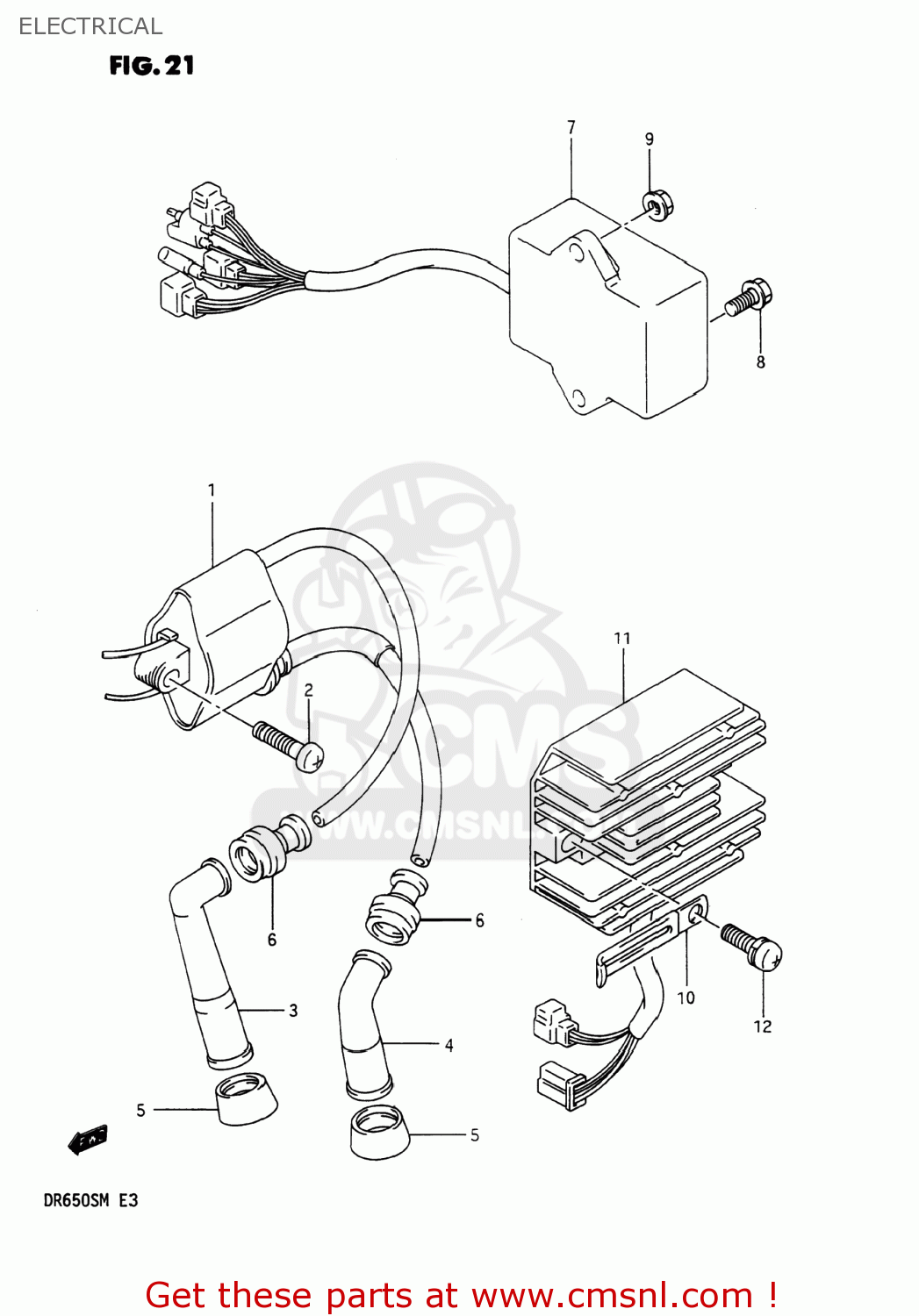

Electrical diagram DR650S 1991 (M) USA (E03)
ELECTRICAL DR650S 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3341012D00
ref: 1
COIL ASSY,IGNITION
€ 161.50
2
0211216256
ref: 2
02142-0625A
SCREW
€ 1.50
3
3351045010
ref: 3
CAP ASSY,SPARK PLUG
€ 23.00
4
3351043010
ref: 4
CAP,SPARK PLUG
€ 11.50
5
3354124510
ref: 5
33541-47D00
SEAL,SPARK PLUG CAP
€ 7.00
6
3354238B00
ref: 6
SEAL,HIGH TENSION CORD
€ 4.50
7
3290012D00
ref: 7
CDI UNIT
€ 352.50
8
0913606047
ref: 8
SCREW (6X16) WITH WASHER
€ 1.50
9
0915906017
ref: 9
08319-31067
NUT
€ 2.50
10
0940406402
ref: 10
09404-06432
CLAMP
€ 2.50
11
3280030B01
ref: 11
32800-33C01
RECTIFIER ASSY
€ 368.00
12
0211236206
ref: 12
02112-3620A
SCREW
€ 2.00
