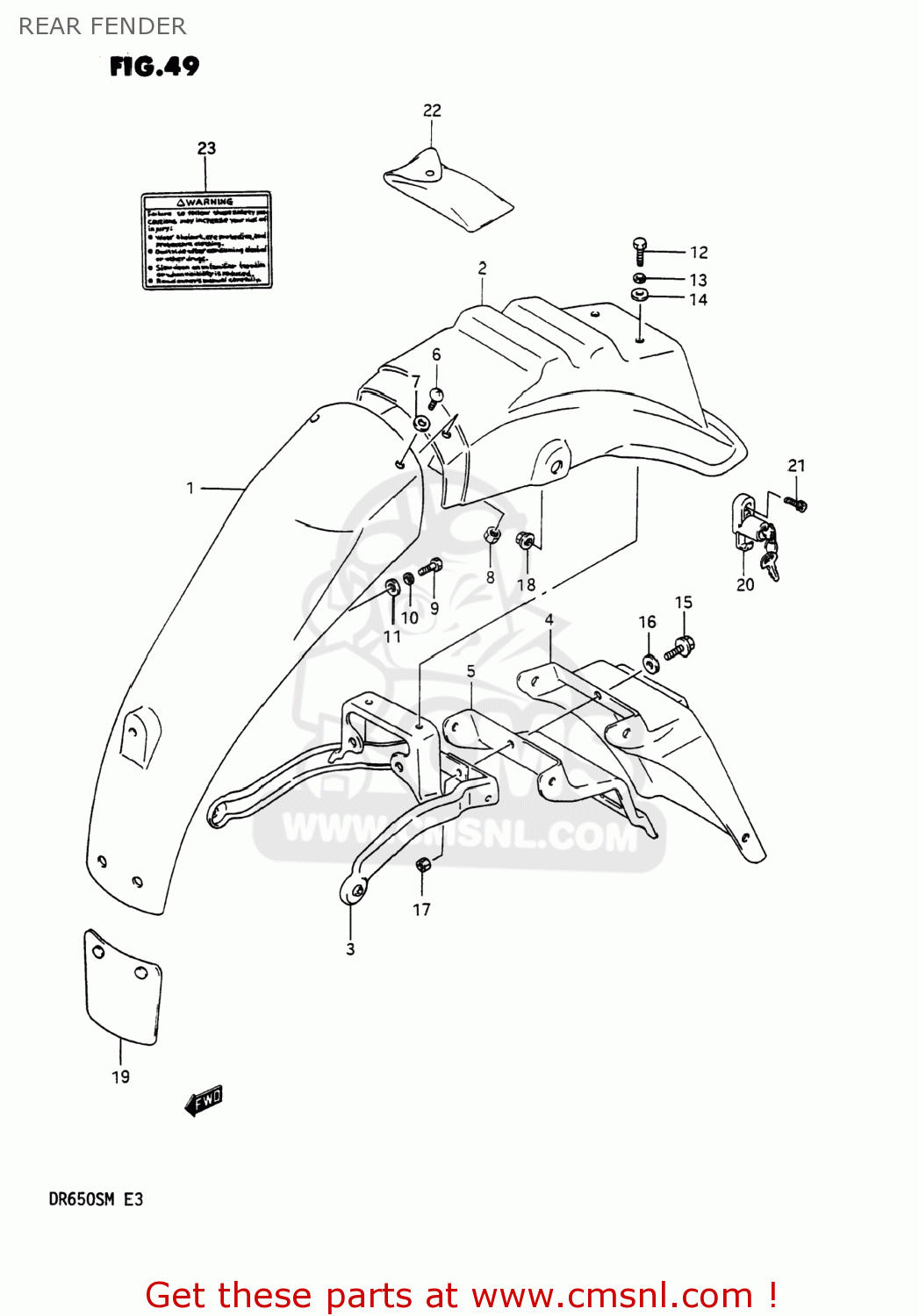

REAR FENDER

ref

part #

description

quantity

1

6311214A10
ref: 1

BODY,REAR FENDER,FRONT

€ 36.00

2

6311314A2030H
ref: 2
63113-14A20-13L

BODY,REAR FENDER,REAR

€ 89.50

3

6312014A00
ref: 3

REINFORCEMENT,REAR FENDER

€ 41.50

4

6331115A10
ref: 4
63311-15A20

EXTENSION,REAR FENDER

€ 31.00

5

6313015A10
ref: 5

REINFORCEMENT,REAR FENDER

€ 31.00

6

0214205124
ref: 6
02142-0512A

SCREW, FRONT & REAR

€ 1.50

7

0916005031
ref: 7
09160-05037

WASHER

€ 1.50

8

0831921055
ref: 8
08319-2105A

NUT 8MM

€ 1.50

9

0110706165
ref: 9
01500-0616A

BOLT 6X16

€ 2.00

10

0832121064
ref: 10
08321-0106A

WASHER,LOCK

€ 2.00

11

0916906026
ref: 11

WASHER

€ 2.00

12

0110706205
ref: 12
01500-0620A

BOLT

€ 2.00

13

0832121064
ref: 13
08321-0106A

WASHER,LOCK

€ 2.00

14

0832221064
ref: 14
08322-0106B

WASHER

€ 2.00

15

0911606152
ref: 15

BOLT(6X20)

€ 2.00

16

0916906026
ref: 16

WASHER

€ 2.00

17

0831931065
ref: 17
08319-3106A

NUT

€ 2.50

18

0831931085
ref: 18
08319-3108A

NUT

€ 2.50

19

6341113700
ref: 19

GUARD,RR FENDER FR MUD

€ 10.00

20

9570031810
ref: 20

LOCK SET,HELMET

€ 49.50

21

0711006165
ref: 21
07130-0616B

BOLT

€ 3.00

22

0980000242
ref: 22
09800-21024

TOOL ASSY

€ 55.00

23

6831915D00
ref: 23
68319-33E01

LABEL

€ 8.00
