STAND - REAR BRAKE

DR650S 1991 (M) USA (E03)

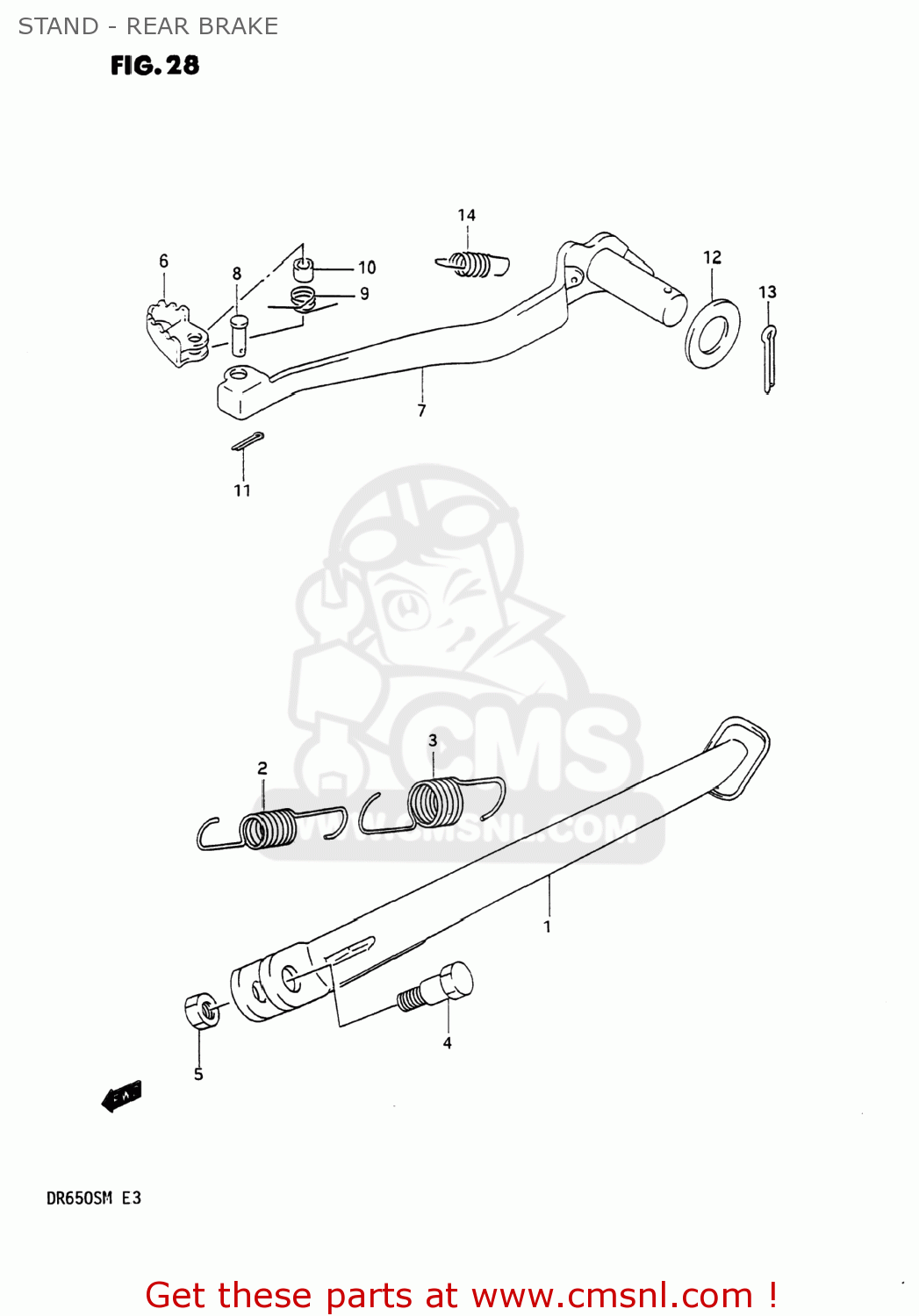

Stand - rear brake diagram DR650S 1991 (M) USA (E03)

prices are in EUR

ref

part #

description

quantity

4231014A210NF
ref: 1
42310-14A21-019

STAND,SIDE

€ 662.50

0944314030
ref: 2
09443-14030-XC0

SPRING

€ 6.00

0944322003
ref: 3

SPRING

€ 7.00

0911110047
ref: 4

BOLT(10X30)

€ 4.50

5-1

0831022107
ref: 5-1
08310-00107

NUT

€ 2.50

5-2

0831022105
ref: 5-2
09140-10043

NUT

€ 2.00

4311014130
ref: 6

PEDAL,BRAKE

€ 6.00

4312012D00
ref: 7

ARM,BRAKE PEDAL

€ 51.50

0920006038
ref: 8

PIN

€ 2.00

0944411004
ref: 9
09444-11005

SPRING

€ 3.00

0918006137
ref: 10

SPACER(9.2X9X6.5)

€ 2.50

0411120158
ref: 11
04111-2015A

PIN

€ 1.50

0916017021
ref: 12
09160-17501-XC0

WASHER (17.6X34X2)

€ 2.00

0411130308
ref: 13
04111-3030A

COTTER PIN

€ 1.50

0944310033
ref: 14

SPRING

€ 3.50
