CRANK BALANCER

DR650SE 1996 (T) USA (E03)

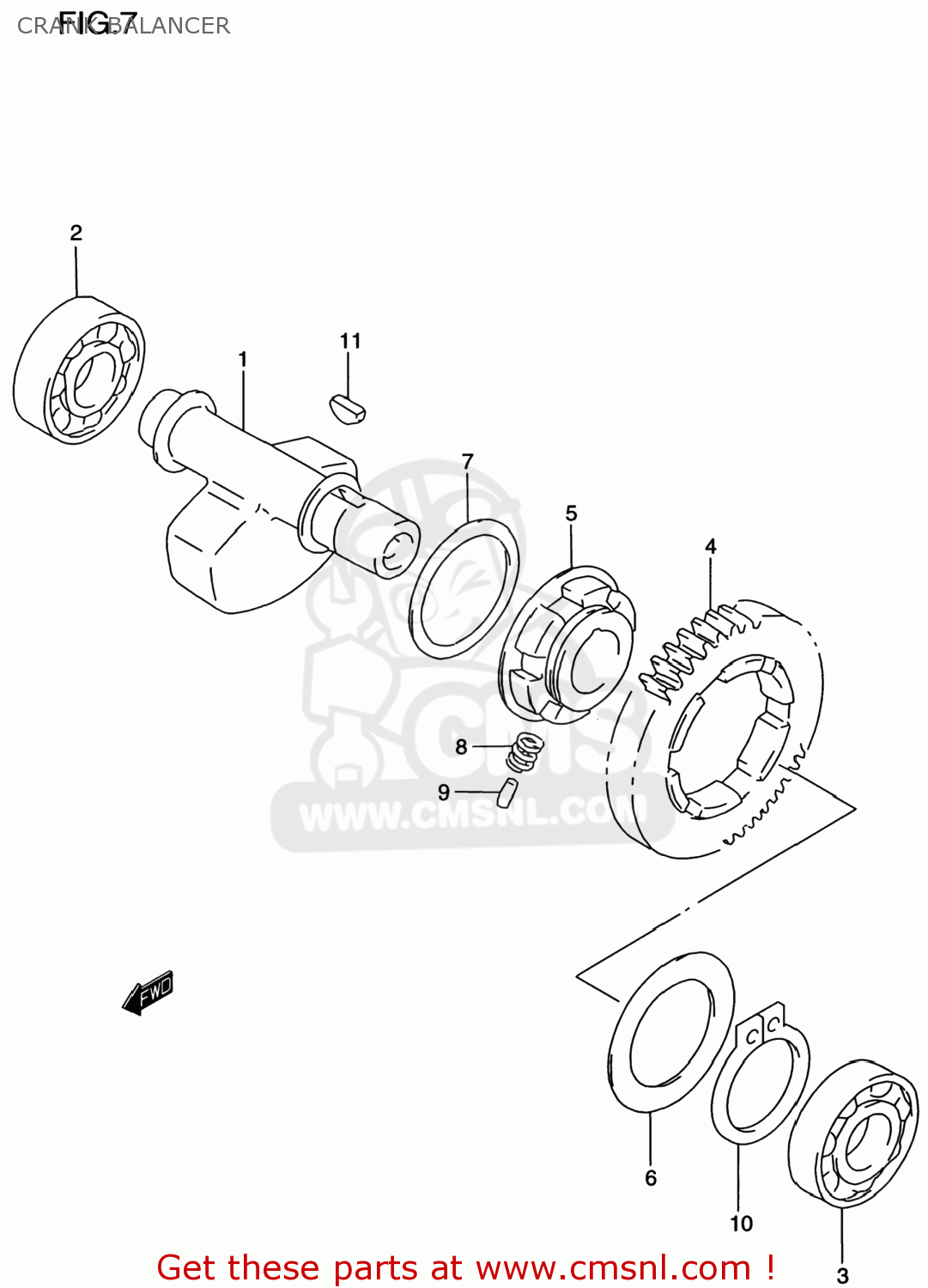

Crank balancer diagram DR650SE 1996 (T) USA (E03)

CRANK BALANCER DR650SE 1996 (T) USA (E03)

CRANK BALANCER DR650SE 1996 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1265132E00
ref: 1

BALANCER,CRANK

€ 110.00

2

0926222029
ref: 2

BEARING(22X56X16)

€ 45.50

3

0926220121
ref: 3

BEARING(20X47X14)

€ 28.00

4

1266632E00
ref: 4

GEAR,CRANK BAL DRIVEN(NT:43)

€ 91.50

5

1266932E00
ref: 5

RACE,CRK BAL DRIVEN GR INNER

€ 52.50

6

0916438003
ref: 6

WASHER

€ 4.00

7

0821138582
ref: 7

WASHER

€ 5.00

8

0944009031
ref: 8

SPRING

€ 3.00

9

0920204017
ref: 9

PIN(4.5X9.5)

€ 3.00

10

0833131383
ref: 10

CIRCLIP

€ 2.50

11

0942004008
ref: 11

KEY

€ 3.50
