REAR FENDER
DR650SE 1996 (T) USA (E03)

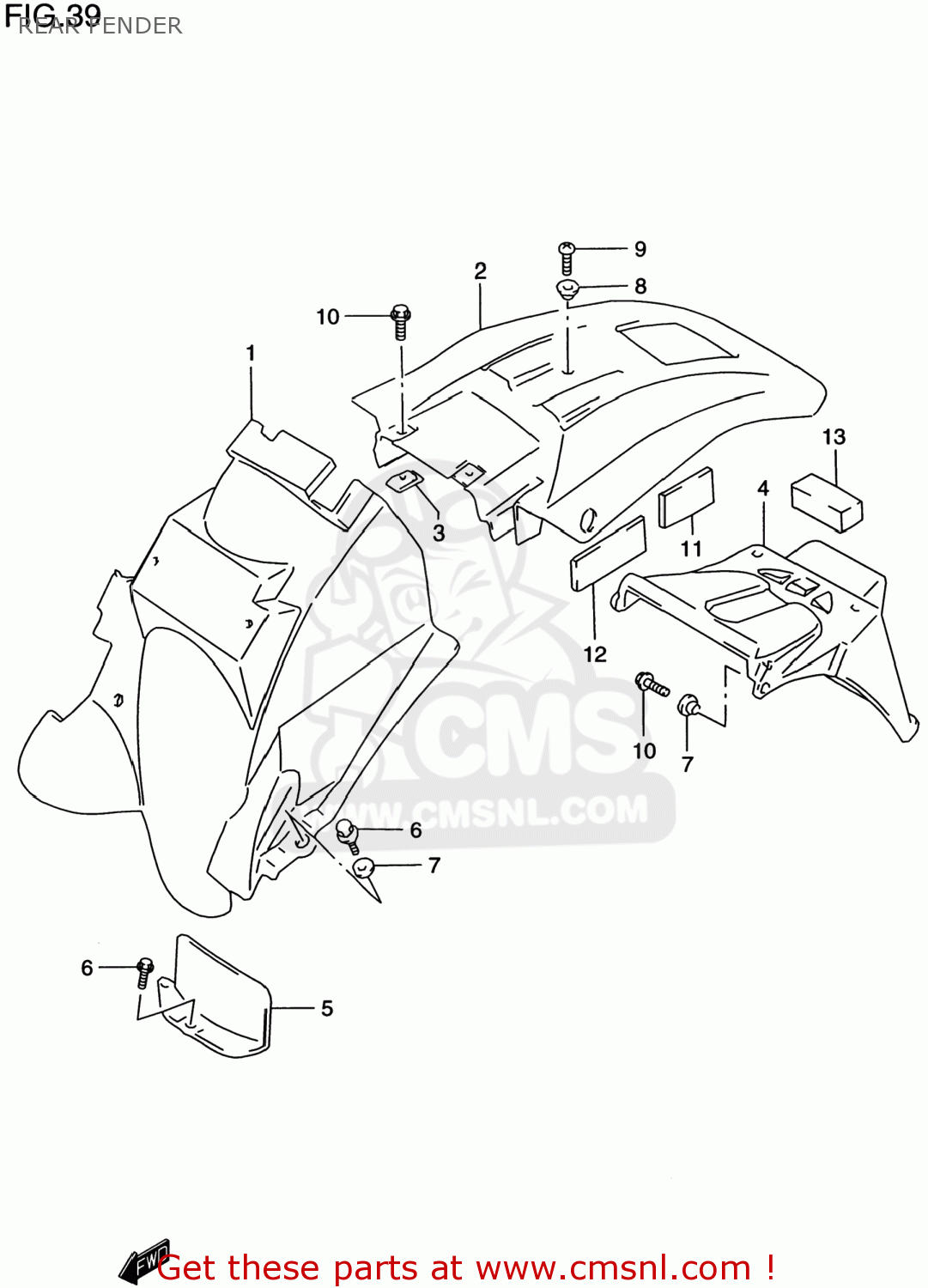

Rear fender diagram DR650SE 1996 (T) USA (E03)
REAR FENDER DR650SE 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6311232E00
ref: 1
BODY,RR FENDER FR
€ 29.50
2-1
6311332E1030H
ref: 2-1
63113-32E30-30H
BODY,REAR FENDER,REAR
€ 73.00
2-2
6311332E10019
ref: 2-2
BODY,REAR FENDER,REAR
€ 76.00
3
4715319C01
ref: 3
PLATE,FRAME COVER
€ 4.00
4
6331132E00
ref: 4
EXTENSION,RR FENDER
€ 31.50
5
6341132E00
ref: 5
MUDGUARD,RR FENDER
€ 8.00
6
0911106066
ref: 6
BOLT(6X16)
€ 2.50
7
0916906073
ref: 7
WASHER
€ 4.00
8
0916906054
ref: 8
09169-06053
WASHER
€ 2.00
9-1
0913906088
ref: 9-1
SCREW(6X16)
€ 4.00
9-2
0913906067
ref: 9-2
SCREW(6X16)
€ 3.00
10
0155006163
ref: 10
01550-0616A
BOLT
€ 2.50
11
6319125C00
ref: 11
CUSHION
€ 2.50
12
6311832E00
ref: 12
CUSHION,RR FENDER
€ 6.00
13
6311932E00
ref: 13
94475-21E00
CUSHION,EXTENSION
€ 5.50
