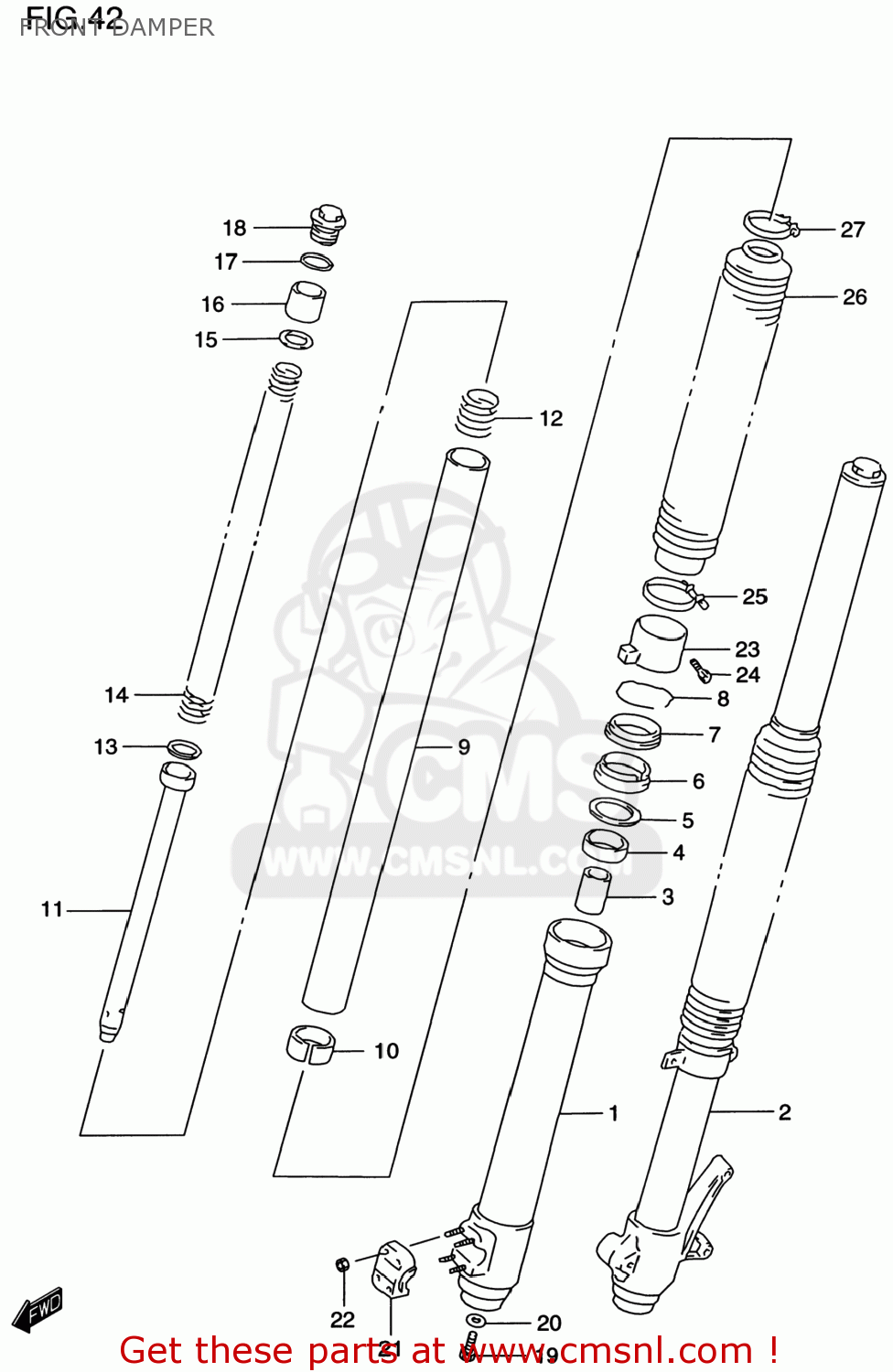

FRONT DAMPER

ref

part #

description

quantity

5110332E00
ref:

DAMPER ASSY,FR FORK,R

€ 779.00

5110432E00
ref:

DAMPER ASSY,FR FORK,L

€ 779.00

1

5113032E00
ref: 1

TUBE,OUTER,R

€ 415.00

2

5114032E00
ref: 2

TUBE,OUTER,L

€ 448.50

3

5119506C00
ref: 3

PIECE,OIL LOCK

€ 13.00

4

5116740C00
ref: 4

METAL,SLIDE

€ 13.50

5

5115814200
ref: 5

WASHER

€ 4.00

6

5115314330
ref: 6

SEAL,OIL

€ 11.00

7

5117314330
ref: 7

SEAL,DUST

€ 9.50

8

5115614200
ref: 8

RING,STOPPER

€ 4.50

9

5111032E00
ref: 9

TUBE,INNER

€ 383.50

10

5112140C00
ref: 10

PISTON

€ 11.50

11

5119032E00
ref: 11

CYLINDER

€ 114.50

12

5117714330
ref: 12

SPRING,REBOUND

€ 5.50

13

5119631D00
ref: 13

RING,PISTON

€ 6.00

14

5117132E00
ref: 14

SPRING

€ 66.00

15

5117232E00
ref: 15

WASHER

€ 4.00

16

5117632E00
ref: 16

SPACER

€ 25.00

17

5111714200
ref: 17

O RING

€ 2.00

18

5135131D00
ref: 18

CAP,FORK

€ 32.50

19

5114716510
ref: 19

BOLT,FORK CYLINDER(10X25)

€ 3.50

20

5114841310
ref: 20

GASKET (NAS)

€ 2.50

21

5113232E00
ref: 21

HOLDER,AXLE,R

€ 31.50

22

0831610067
ref: 22

NUT

€ 2.00

23

5120332E00
ref: 23

GUIDE,BOOT

€ 14.00

24

0713005207
ref: 24

BOLT

€ 2.00

25

5157600B00
ref: 25

BAND,BOOT LWR

€ 6.50

26-1

5157132E00163
ref: 26-1

BOOT, YELLOW

€ 45.50

26-2

5157132E001LU
ref: 26-2

BOOT(GRAY)

€ 38.00

26-3

5157132E00019
ref: 26-3

BOOT, BLACK

€ 45.50

27

5157532E00
ref: 27

BAND,BOOT

€ 8.00

all assemblies
