GEAR SHIFTING
DR650SE 1996 (T) USA (E03)

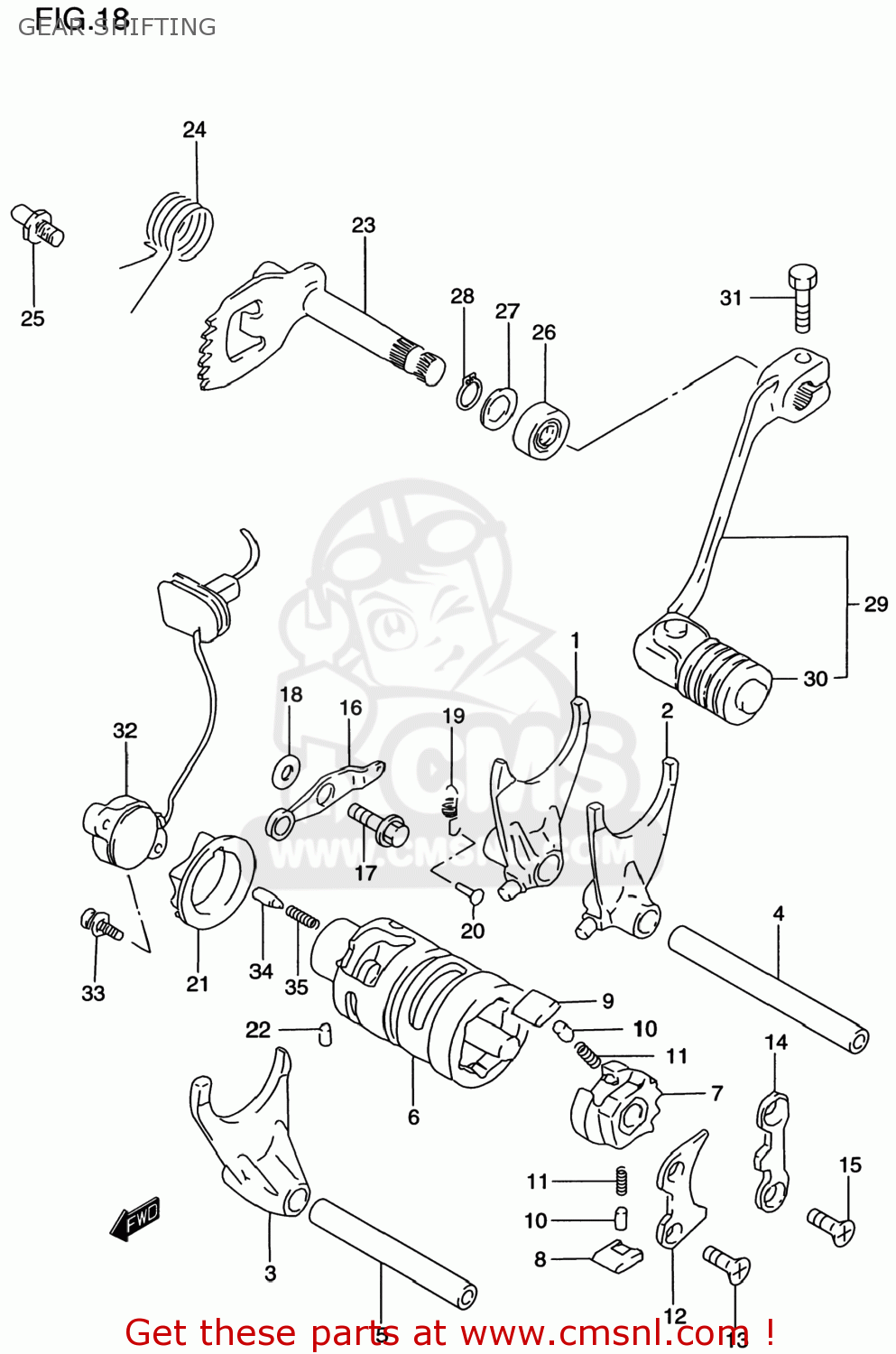

Gear shifting diagram DR650SE 1996 (T) USA (E03)
GEAR SHIFTING DR650SE 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2521137400
ref: 1-1
25211-37401
FORK,GEAR SHIFT NO.1
€ 58.50
1-2
2521137401
ref: 1-2
FORK,GEAR SHIFT NO.1
€ 58.50
2-1
2522137400
ref: 2-1
25221-37401
FORK,GEAR SHIFT NO.2
€ 58.50
2-2
2522137401
ref: 2-2
FORK,GEAR SHIFT NO.2
€ 58.50
3-1
2523114A00
ref: 3-1
25231-14A01
FORK,GEAR SHIFT NO.3
€ 54.50
3-2
2523114A01
ref: 3-2
FORK,GEAR SHIFT NO.3
€ 54.50
4
2541120A11
ref: 4
SHAFT,GEAR SHIFT FORK
€ 14.50
5
2542114A02
ref: 5
SHAFT,GEAR SHIFT FORK
€ 14.50
6
2531037400
ref: 6
CAM,GEAR SHIFT
€ 91.50
7-1
2532231301
ref: 7-1
25322-31310
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
7-2
2532231302
ref: 7-2
25322-31310
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
7-3
2532231310
ref: 7-3
GEAR,GEAR SHIFT CAM DRIVEN
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533114A00
ref: 12
LIFTER,GEAR SHAFT PAWL
€ 6.00
13
0212206123
ref: 13
02122-0612A
SCREW
€ 3.00
14
2534140001
ref: 14
STOPPER,GEAR SHIFT POLE
€ 6.50
15
0212206123
ref: 15
02122-0612A
SCREW
€ 3.00
16
2535037400
ref: 16
STOPPER,GEAR SHIFT CAM
€ 8.00
17
0911106054
ref: 17
BOLT(6X14.6)
€ 1.50
18
0821106141
ref: 18
WASHER
€ 2.50
19
0944308020
ref: 19
SPRING
€ 2.00
20
0922304001
ref: 20
RIVET
€ 1.50
21
2538137401
ref: 21
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
22
0422104069
ref: 22
PIN
€ 2.00
23
2551032E00
ref: 23
SHAFT,GEAR SHIFT
€ 64.00
24-1
0944426013
ref: 24-1
SPRING
€ 3.50
24-2
0944426023
ref: 24-2
SPRING
€ 3.00
25
2567101000
ref: 25
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
26
0928512002
ref: 26
09285-12006
OIL SEAL
€ 7.00
27
0821212201
ref: 27
WASHER
€ 1.50
28
0833131126
ref: 28
08331-3112A
CIRCLIP,12 MM
€ 2.00
29
2560032E00
ref: 29
LEVER ASSY,GEAR SHIFT
€ 29.00
30
2565203D00
ref: 30
RUBBER,GEAR SHIFT PEDAL
€ 3.50
31
0150006203
ref: 31
01500-0620A
BOLT
€ 2.00
32
3772032E10
ref: 32
BASE ASSY,NEUTRAL SW TERMINAL
€ 44.50
33
0211205163
ref: 33
02112-0516A
SCREW
€ 2.00
34
0920905011
ref: 34
PIN(5X15.5)
€ 2.00
35
0944004010
ref: 35
SPRING
€ 1.50
