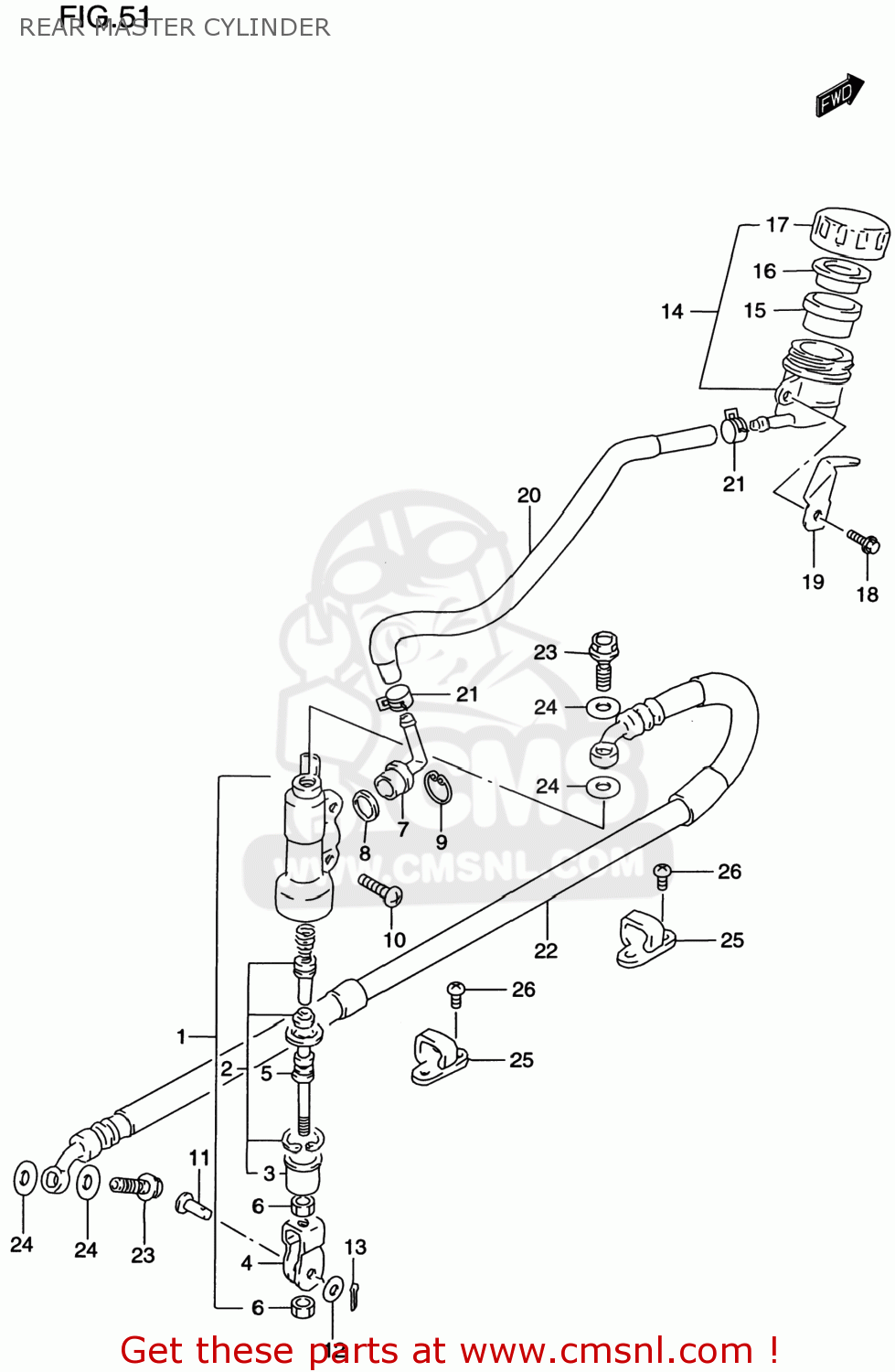

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960032E00
ref: 1

CYLINDER ASSY,RR MASTER

€ 131.50

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969213E00
ref: 4

YOKE

€ 11.00

5

6967027A30
ref: 5

ROD,PUSH

€ 13.50

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967200B20
ref: 7

CONNECTOR

€ 5.00

8

6968634200
ref: 8

O RING

€ 3.50

9

6967400B20
ref: 9

CIRCLIP

€ 3.00

10

0913906067
ref: 10

SCREW(6X16)

€ 3.00

11

0920008048
ref: 11

PIN(8X20)

€ 3.00

12-1

0916008074
ref: 12-1

WASHER(8.5X13X1.6)

€ 2.50

12-2

0916008119
ref: 12-2
09160-08090

WASHER (8.5X14X1.6)

€ 2.50

13

0411125158
ref: 13
04111-2515A

PIN 20X15

€ 1.50

14

6974003D00
ref: 14

TANK ASSY,RR BRAKE RESERVOIR

€ 40.50

15

6966700B20
ref: 15

DIAPHRAGM

€ 9.50

16

6966800B20
ref: 16

PLATE

€ 4.00

17

6966903D00
ref: 17

CAP

€ 11.00

18

0155006163
ref: 18
01550-0616A

BOLT

€ 2.50

19

6974314D10
ref: 19

GUARD,RSVR TANK CAP

€ 4.50

20

6973032E00
ref: 20

HOSE,RESERVOIR TANK

€ 30.50

21

0940112404
ref: 21

CLIP

€ 2.50

22

6948032E00
ref: 22
69480-32E01

HOSE COMP,REAR BRAKE

€ 63.00

23

0936010042
ref: 23
09360-10062

BOLT UNION

€ 5.00

24

0916110009
ref: 24

WASHER(10X15X1.5)

€ 2.00

25-1

6119627C20
ref: 25-1

GUIDE,RR BRAKE HOSE

€ 9.00

25-1

6119627C20
ref: 25-1

GUIDE,RR BRAKE HOSE

€ 9.00

25-2

6119627C30
ref: 25-2

GUIDE,RR BRAKE

€ 5.50

25-2

6119627C30
ref: 25-2

GUIDE,RR BRAKE

€ 5.50

26-1

0214205103
ref: 26-1
02142-0510B

SCREW

€ 2.50

26-2

0214205103
ref: 26-2
02142-0510B

SCREW

€ 2.50
