CYLINDER
DR650SE 1996 (T) USA (E03)

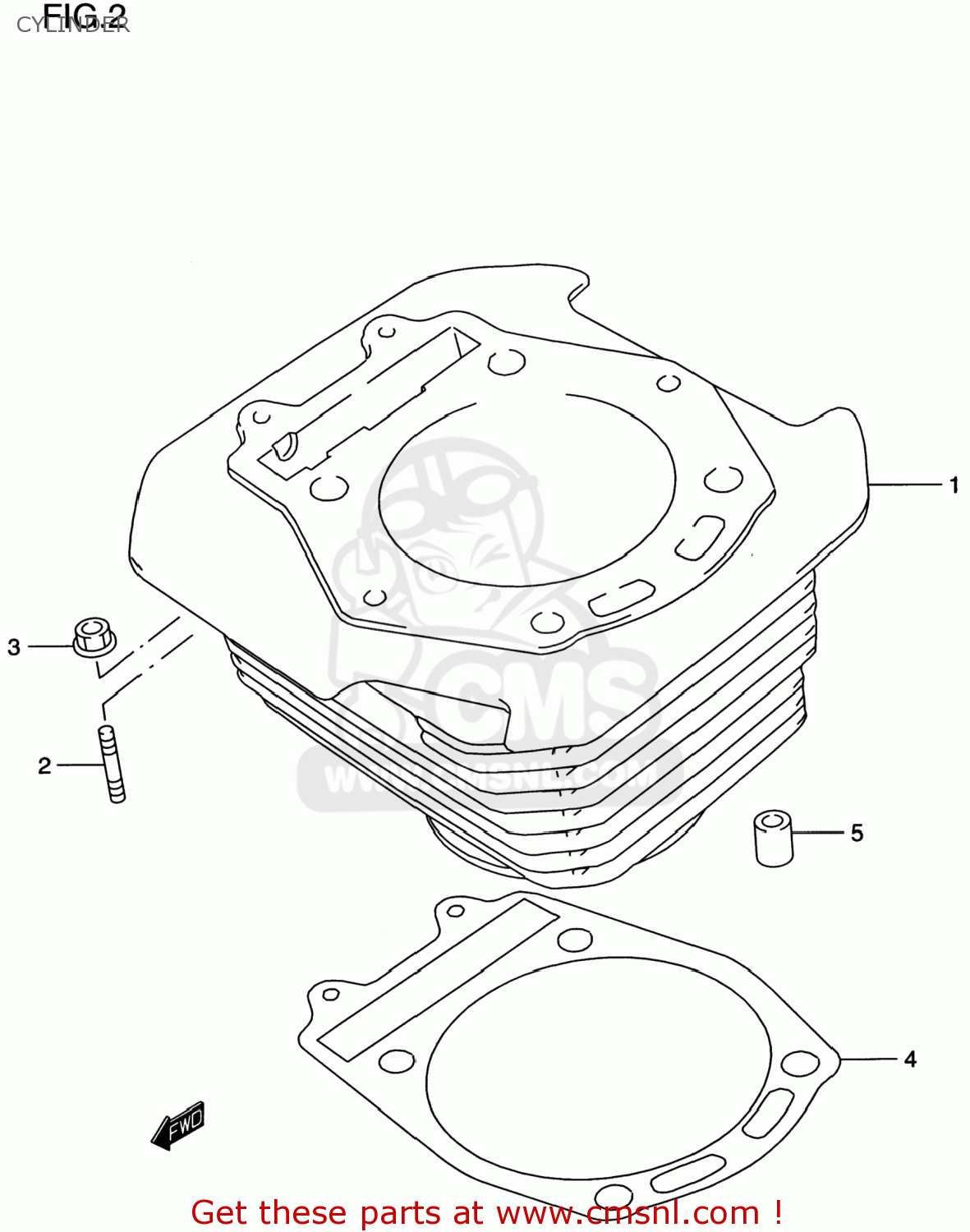

Cylinder diagram DR650SE 1996 (T) USA (E03)
CYLINDER DR650SE 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121132E000F0
ref: 1-1
11211-32E02-0F0
CYLINDER
€ 759.50
1-2
1121132E010F0
ref: 1-2
11211-32E02-0F0
CYLINDER
€ 759.50
1-3
1121132E020F0
ref: 1-3
CYLINDER
€ 759.50
2-1
0142106208
ref: 2-1
01421-0620A
STUD 6X20
€ 2.50
2-2
0142106203
ref: 2-2
01421-0620A
STUD,M6X1X32
€ 2.50
3
0831610063
ref: 3
08316-1006B
NUT
€ 2.50
4-1
1124132E00
ref: 4-1
11241-04F20
GASKET,CYLINDER
€ 17.00
4-2
1124104F00
ref: 4-2
11241-04F20
GASKET,CYLINDER (NAS)
€ 17.00
5
0421113189
ref: 5
PIN
€ 2.50
