FRAME (MODEL T/V/W/X)
DR650SE 1996 (T) USA (E03)

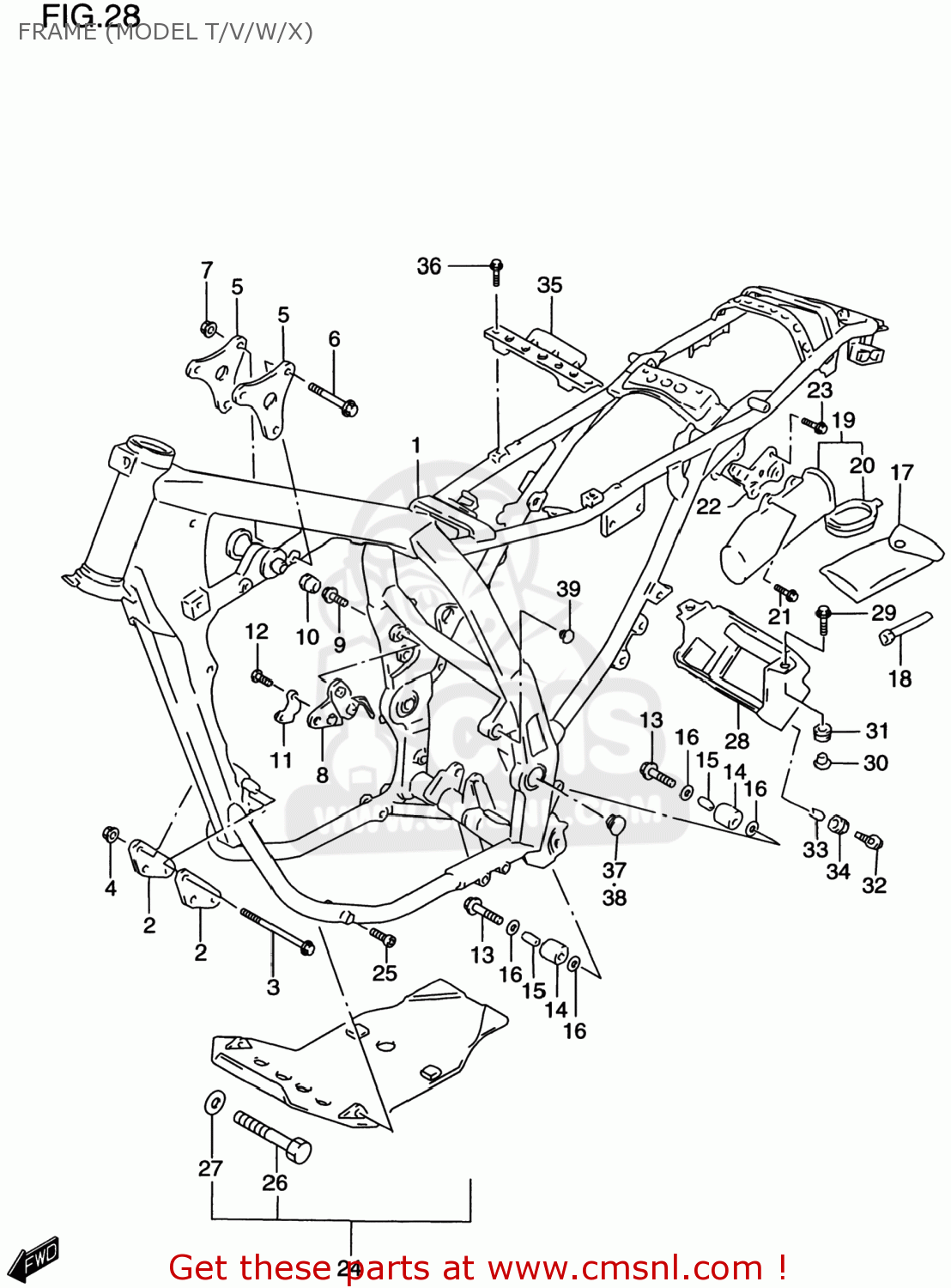

Frame (model t/v/w/x) diagram DR650SE 1996 (T) USA (E03)
FRAME (MODEL T/V/W/X) DR650SE 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110032E00Z16
ref: 1-1
FRAME COMP
€ 2,041.50
1-2
4110032E30Z16
ref: 1-2
FRAME COMP
€ 2,041.50
1-3
4110032E3024K
ref: 1-3
FRAME(CHARCOAL)
€ 2,021.50
1-4
4110032E20Z16
ref: 1-4
FRAME COMP
€ 0.00
1-5
4110032E2024K
ref: 1-5
FRAME(CHARCOAL)
€ 0.00
2
4191132E00
ref: 2
PLATE,ENG MTG FR
€ 16.00
3
0910308139
ref: 3
BOLT(8X100)
€ 5.50
4-1
0831921083
ref: 4-1
08319-2108A
NUT
€ 1.50
4-2
0831931083
ref: 4-2
08319-3108A
NUT
€ 2.50
5
4199132E00
ref: 5
PLATE,ENG MTG UPR
€ 21.50
6-1
0910308027
ref: 6-1
09103-08339
BOLT 8X55
€ 3.50
6-2
0910308170
ref: 6-2
09103-08339
BOLT
€ 3.50
7
0831931083
ref: 7
08319-3108A
NUT
€ 2.50
8
4193032E00019
ref: 8
PLATE,ENG MTG RR,R
€ 17.00
9-1
0910308254
ref: 9-1
BOLT(8X20)
€ 3.00
9-2
0155008203
ref: 9-2
01550-0820A
BOLT
€ 3.00
10
0925020012
ref: 10
PLUG(OD:22)
€ 5.50
11
4325132E00
ref: 11
BRACKET,STOP SWITCH
€ 8.00
12
0216206163
ref: 12
02162-0616B
SCREW
€ 2.50
13
0910308178
ref: 13
BOLT(8X38)
€ 5.00
14
4391113E00
ref: 14
ROLLER,CHAIN CONTROL UPR
€ 10.00
15
0918008119
ref: 15
09180-08156
SPACER(8.6X12X25.5)
€ 6.50
16
0821108201
ref: 16
WASHER
€ 2.00
17
0980021034
ref: 17
TOOL ASSY
€ 55.00
18
0981600100
ref: 18
SPARK PLUG WRENCH(16)
€ 7.50
19
4155032E00
ref: 19
HOLDER,TOOL
€ 31.50
20
4155237210
ref: 20
CAP,HOLDER
€ 5.00
21
0911606006
ref: 21
BOLT(6X16)
€ 2.00
22
4744032E00
ref: 22
BRACKET,TOOL HOLDER
€ 0.00
23
0155006163
ref: 23
01550-0616A
BOLT
€ 2.50
24
4250032810
ref: 24
Skid Plate
€ 279.50
25
0910608098
ref: 25
BOLT(8X14)
€ 6.50
26
0910310154
ref: 26
BOLT(10X245)
€ 16.00
27
0916010091
ref: 27
WASHER(10X24X2)
€ 5.50
28
4154032E00
ref: 28
HOLDER,BATTERY
€ 50.50
29
0911606167
ref: 29
BOLT(6X20)
€ 2.00
30-1
4157047D00
ref: 30-1
09169-06065
SPACER COMP,BATTERY
€ 3.00
30-2
0916906065
ref: 30-2
WASHER
€ 3.50
31
0932008021
ref: 31
CUSHION
€ 4.00
32
0911606168
ref: 32
BOLT(6X16)
€ 2.50
33
0918006038
ref: 33
SPACER(6.1X9X7.5)
€ 2.00
34
0932008021
ref: 34
CUSHION
€ 4.00
35
4156132E00
ref: 35
PLATE,BATTERY FITING
€ 9.50
36
0155006103
ref: 36
01550-0610A
BOLT
€ 2.50
37
4358532E00
ref: 37
PLUG,FRAME PIVOR,R
€ 3.00
38
4359532E00
ref: 38
PLUG,FRAME PIVOR,L
€ 3.00
39
4358632E00
ref: 39
PLUG,FRAME BOSS
€ 2.50
