BATTERY

DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37

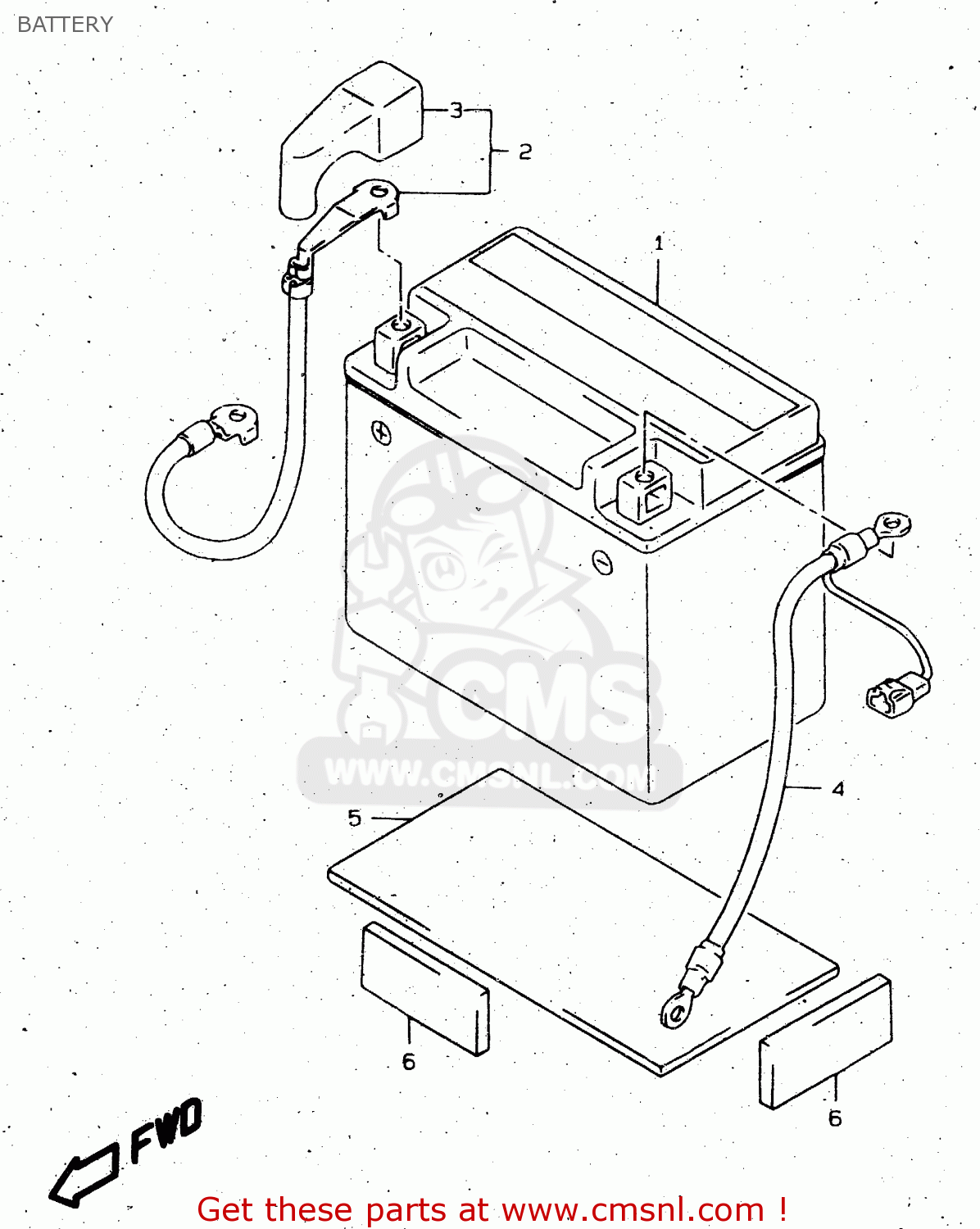

Battery diagram DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37

BATTERY DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37

BATTERY DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37

prices are in EUR

ref

part #

description

quantity

1

3361032C10
ref: 1

BATTERY ASSY(YTX9-BS,12V8AH)

€ 108.50

2

3382032E00
ref: 2

WIRE,BATTERY PLUS

€ 15.00

3

3362432E00
ref: 3

CAP,BATTERY PLUS TERMINAL

€ 4.50

4

3386032E00
ref: 4

WIRE,BATTERY MINUS

€ 12.50

5

3365137000
ref: 5
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

6

3365228000
ref: 6

CUSHION 20X45X6

€ 6.00
