CAM CHAIN

DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37

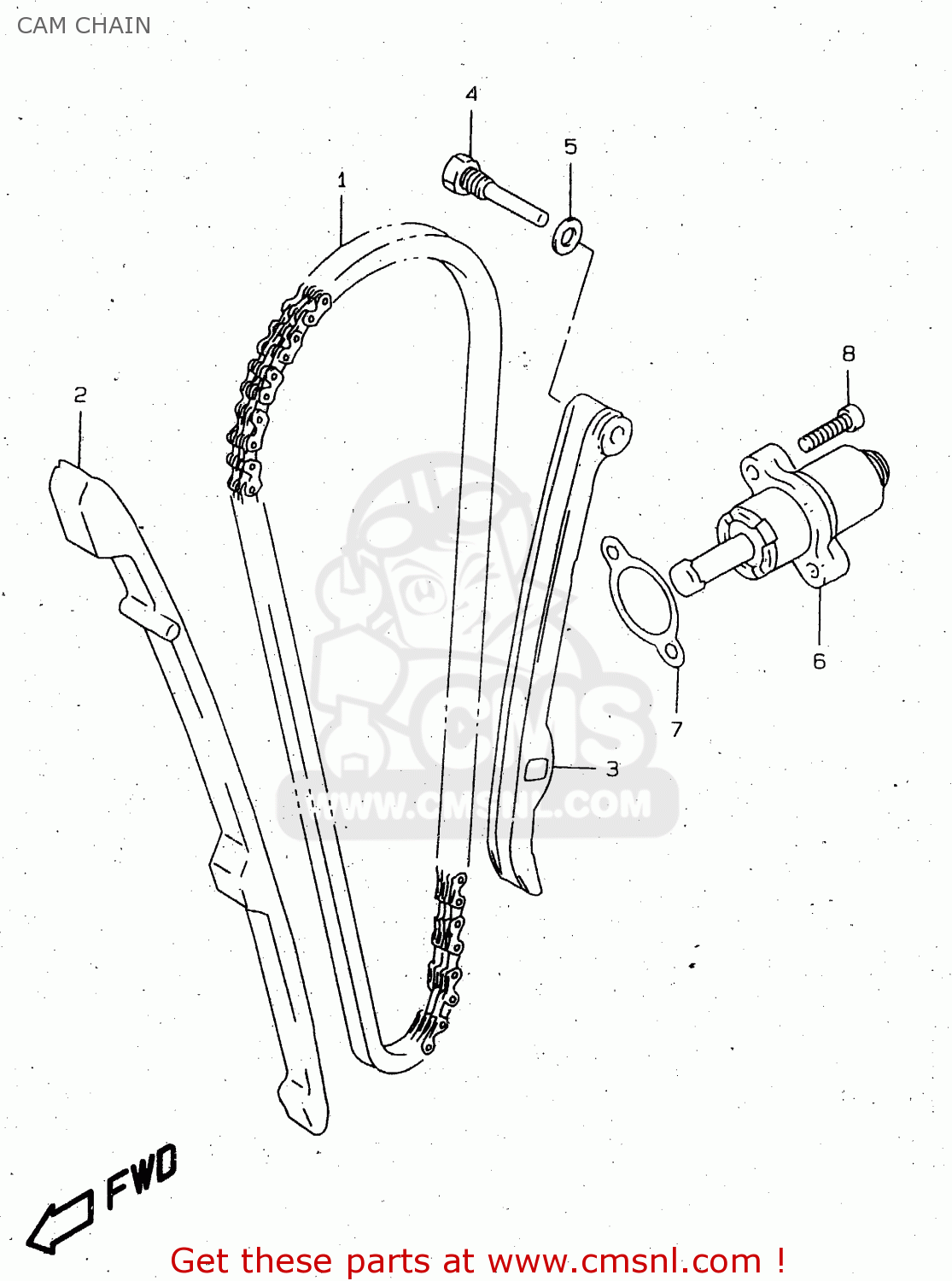

Cam chain diagram DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37

prices are in EUR

ref

part #

description

quantity

1276032E00
ref: 1
120LE

CHAIN,CAMSHAFT DRIVE

€ 94.50

1277132E00
ref: 2

GUIDE,CAM CHAIN

€ 36.50

1281132E00
ref: 3

TENSIONER,CAM CHAIN

€ 37.00

1281232410
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

1283032E00
ref: 6

ADJUSTER ASSY,TENSIONER

€ 63.00

1283724A10
ref: 7

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

0713006253
ref: 8

BOLT,CL.COVER

€ 3.00
