STARTING MOTOR

DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37

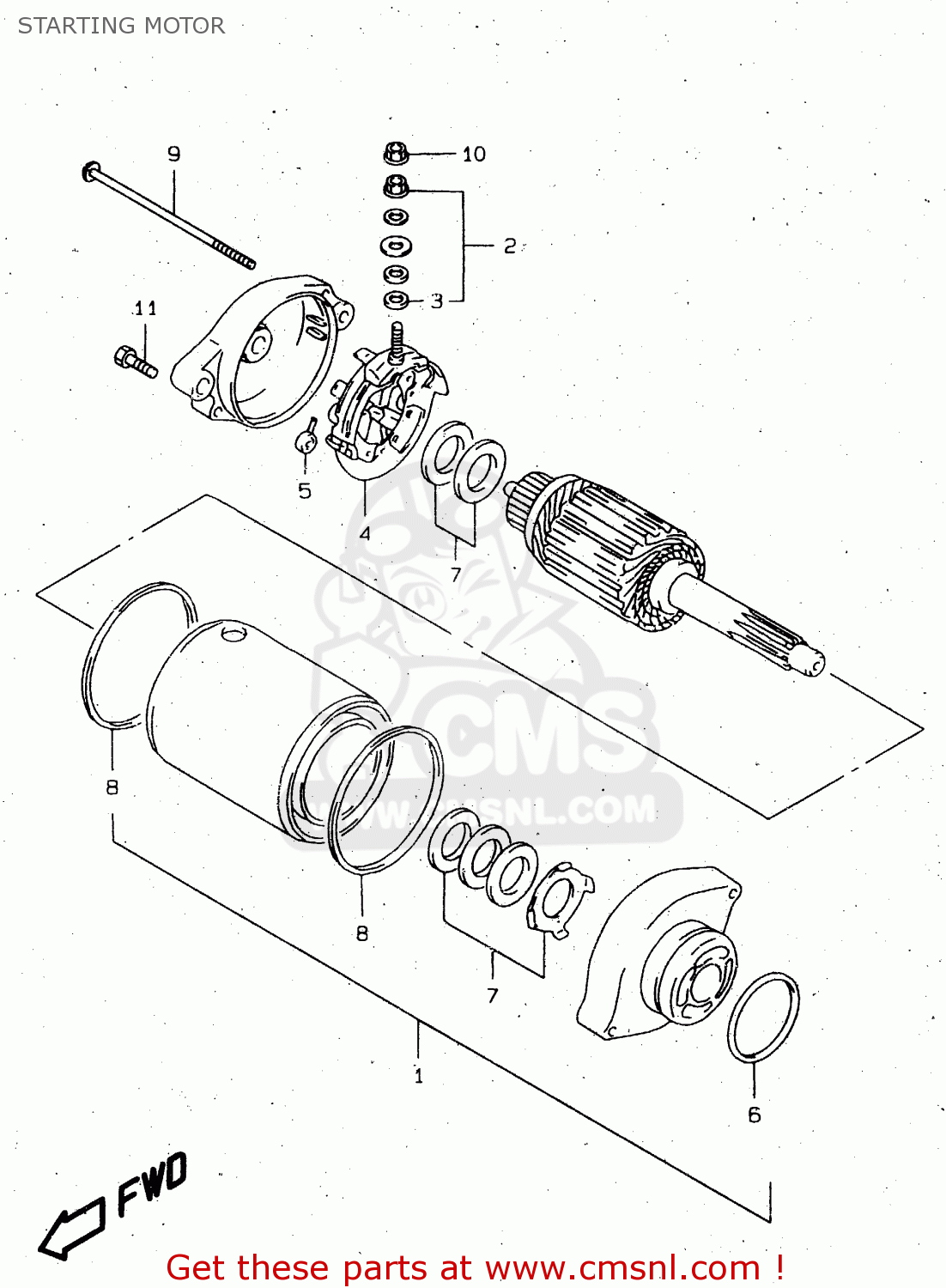

Starting motor diagram DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37

STARTING MOTOR DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37
STARTING MOTOR DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37
STARTING MOTOR DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37
prices are in EUR
ref
part #
description
quantity
1
3110032E01
ref: 1
MODEL T/V, <-31100-3
MOTOR ASSY,STARTING
€ 606.00
1
3110044D10
ref: 1
MODEL W/X
MOTOR ASSY,STARTING
€ 488.00
2
3113038B00
ref: 2
TERMINAL SET,BRUSH
3113038B00
€ 45.00
3
3114349040
ref: 3
O RING
3114349040
€ 3.00
4
3113238B00
ref: 4
HOLDER SET,BRUSH
3113238B00
€ 45.00
5
3113538B00
ref: 5
SPRING,BRUSH
3113538B00
€ 3.50
6
3115648B00
ref: 6
O RING
3115648B00
€ 8.50
7
3117032E00
ref: 7
WASHER SET
€ 8.00
8
3126432E00
ref: 8
<-31264-31300
SQUARE RING
3126432E00
€ 7.50
9
3128026D00
ref: 9
BOLT
3128026D00
€ 12.50
10
0836135068
ref: 10
NUT
0836135068
€ 2.00
11
0154706303
ref: 11
BOLT,G/S SWITC
0154706303
€ 3.00
