REAR SWINGING ARM

DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37

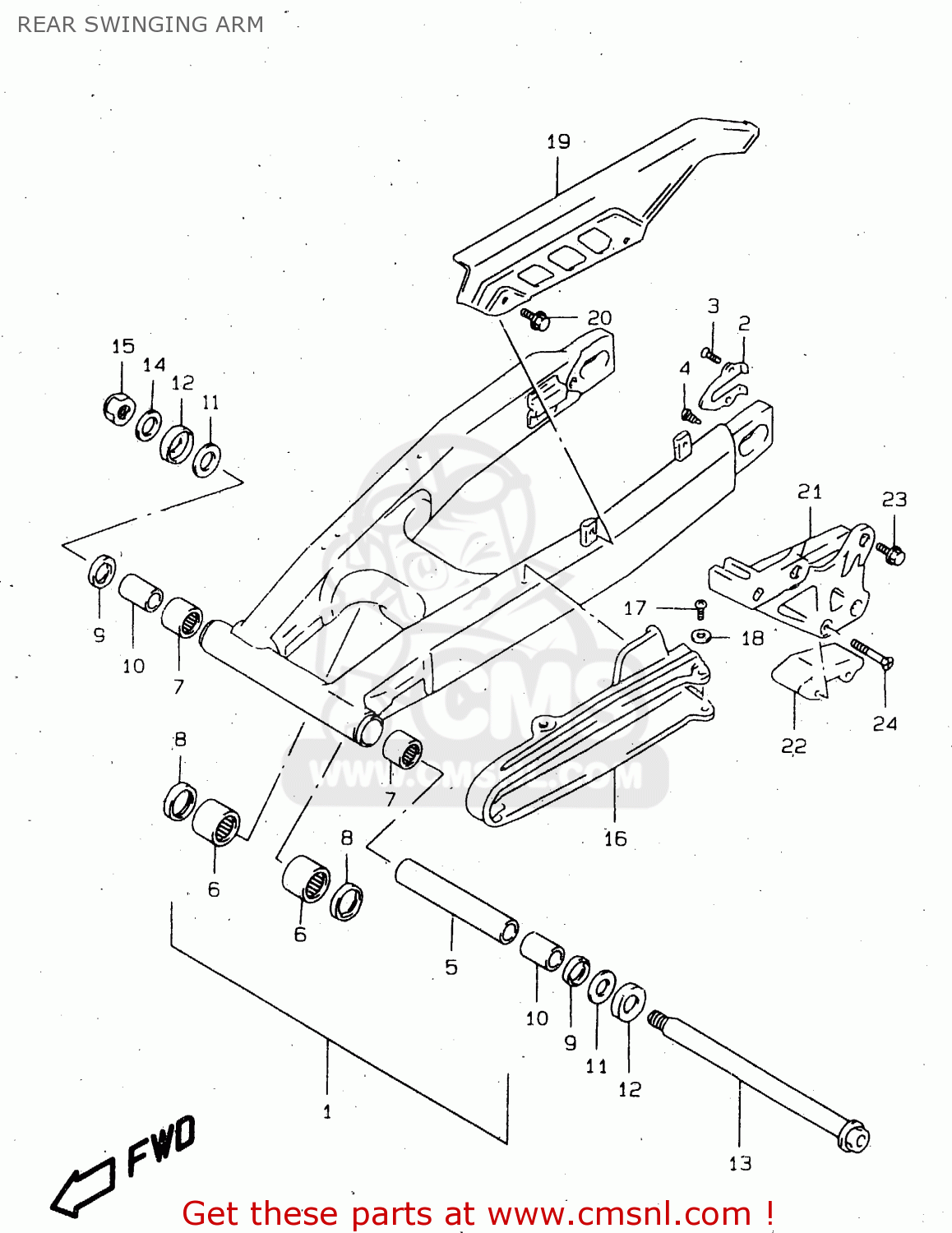

Rear swinging arm diagram DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37

REAR SWINGING ARM DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37
REAR SWINGING ARM DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37
REAR SWINGING ARM DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37
prices are in EUR
ref
part #
description
quantity
1
6100032E00
ref: 1
SWING ARM ASSEMBLY,REAR
6100032E00
€ 1,048.00
2
6112829E00
ref: 2
PLATE,RR SWING ARM AXLE
6112829E00
€ 8.50
3
0912605009
ref: 3
SCREW(5X8)
0912605009
€ 2.50
4
6143113E00
ref: 4
STOPPER,CHAIN ADJUSTER
6143113E00
€ 7.00
5
6128232E00
ref: 5
SPACER,SWGARM PIVOT CTR
6128232E00
€ 11.00
6
0926320071
ref: 6
BEARING(20X27X23.5)
0926320071
€ 21.50
7
0926322017
ref: 7
BEARING(22X29X30)
0926322017
€ 18.50
8
0928320031
ref: 8
SEAL,OIL(20X27X5)
0928320031
€ 5.00
9
0928522001
ref: 9
SEAL,OIL(22X29X4)
0928522001
€ 5.00
10
6125114D00
ref: 10
SPACER,SWGARM PIVOT BRG
6125114D00
€ 11.00
11
0821117341
ref: 11
WASHER
0821117341
€ 2.00
12
6126228C10
ref: 12
COVER,SWINGINGARM PIVOT
6126228C10
€ 4.50
13
6471108D00
ref: 13
AXLE,RR
€ 74.00
14
0832201163
ref: 14
WASHER, FIXED DRIVE FACE
0832201163
€ 2.00
15
0915916007
ref: 15
NUT
0915916007
€ 10.50
16
6127313E01
ref: 16
BUFFER,CHAIN TOUCH DEFENSE
6127313E01
€ 30.00
17
0214206123
ref: 17
SCREW 6X12
0214206123
€ 2.00
18
0916906057
ref: 18
WASHER
0916906057
€ 4.00
19
6131101A03
ref: 19
CASE,CHAIN
6131101A03
€ 33.50
20
0911606096
ref: 20
BOLT(6X10)
0911606096
€ 2.00
21
6134015E00
ref: 21
GUIDE,CHAIN
6134015E00
€ 39.50
22
6134815E00
ref: 22
DEFENSE,CHAIN GUIDE
6134815E00
€ 14.50
23
0155006163
ref: 23
BOLT
0155006163
€ 2.50
24
0212206503
ref: 24
SCREW
0212206503
€ 3.00
