Buy Suzuki DR Parts Online


REAR WHEEL

DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37

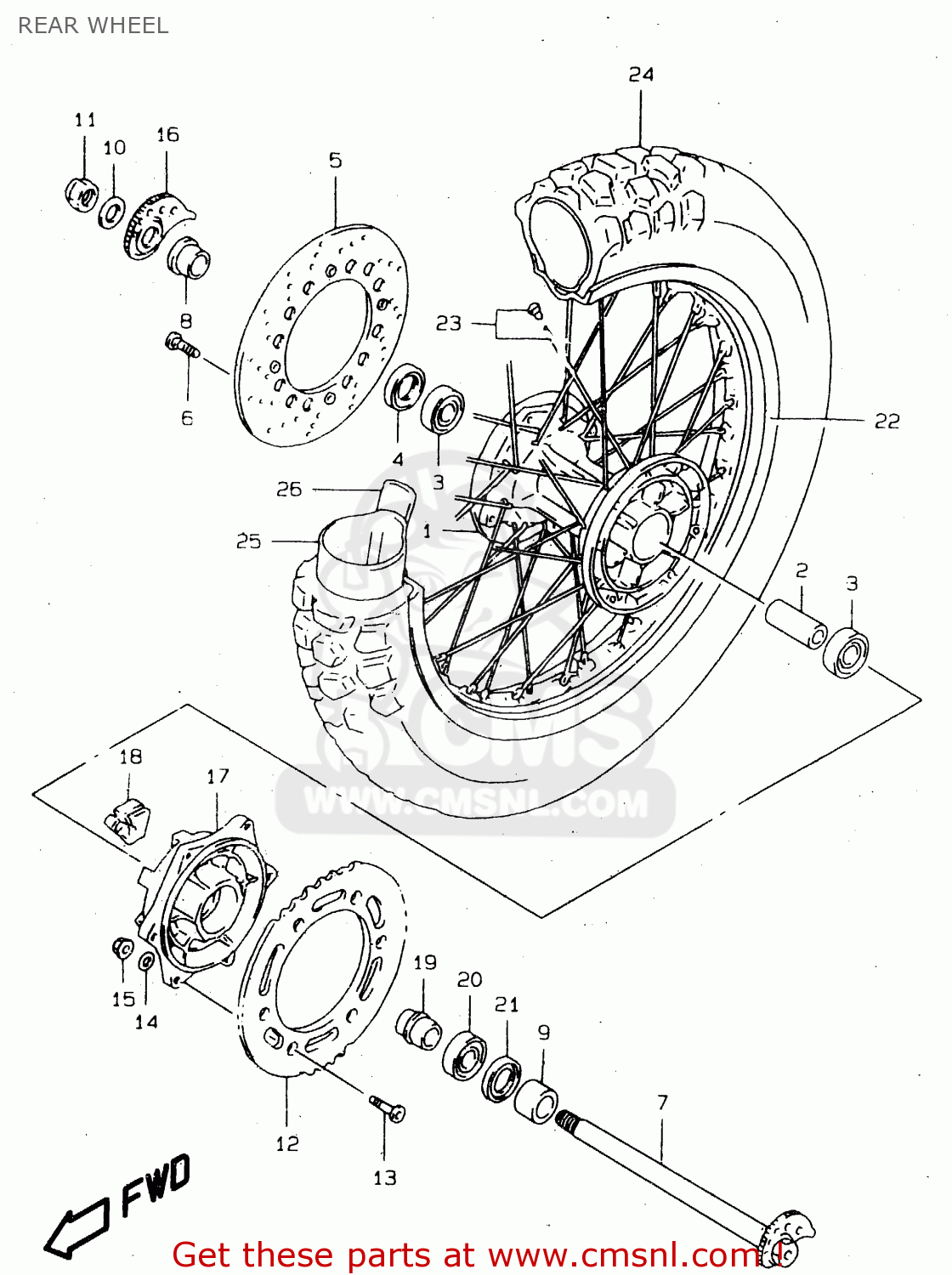

Rear wheel diagram DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37

REAR WHEEL DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37
REAR WHEEL DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37
REAR WHEEL DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37
prices are in EUR
ref
part #
description
quantity
1
6411115D10
ref: 1
HUB,RR WHEEL
6411115D10
€ 216.00
2
6473115D00
ref: 2
SPACER,RR HUB BEARING
6473115D00
€ 14.00
3
0812362047
ref: 3
BEARING
0812362047
€ 17.00
4
0928326019
ref: 4
SEAL,OIL(26X47X5)
0928326019
€ 9.50
5
6921132E00
ref: 5
MODEL T/V, F.NO JS1S
DISC,REAR BRAKE
€ 130.50
5
6921132E01
ref: 5
MODEL V, F.NO JS1SP4
DISC,RR BRAKE
6921132E01
€ 130.50
6
5942103A10
ref: 6
BOLT,BRAKE DISC
5942103A10
€ 4.00
7
6471032E00
ref: 7
AXLE,RR
6471032E00
€ 74.00
8
6474105D00
ref: 8
SPACER,RR AXLE,R
6474105D00
€ 9.00
9
6475115D00
ref: 9
SPACER,RR AXLE,L
6475115D00
€ 17.50
10
0916019022
ref: 10
WASHER(19X32X3.2)
0916019022
€ 5.00
11
0831921188
ref: 11
NUT 18MM
0831921188
€ 3.50
12
6451132E10
ref: 12
SPROCKET,RR(NT:41-525)
6451132E10
€ 77.50
13
0912008010
ref: 13
BOLT(8X30.5)
0912008010
€ 2.50
14
0832201083
ref: 14
WASHER
0832201083
€ 1.50
15
0831931087
ref: 15
NUT
0831931087
€ 2.50
16
6141032E00
ref: 16
ADJUSTER,CHAIN,R
6141032E00
€ 11.50
17
6461115D01
ref: 17
DRUM,RR SPROCKET MOUNTING
6461115D01
€ 75.50
18
6465132E00
ref: 18
ABSORBER,RR HUB SHOCK
6465132E00
€ 7.50
19
6473315D00
ref: 19
RETAINER,RR SPROCKET DRUM
6473315D00
€ 23.00
20
0926225061
ref: 20
BEARING(25X52X15)
0926225061
€ 27.50
21
0928334003
ref: 21
SEAL,OIL(34X52X6)
0928334003
€ 9.00
22
6531132E00
ref: 22
RIM,REAR WHEEL (17XMT2.50)
€ 565.50
23
6532032E00
ref: 23
SPOKE SET,RR WHEEL
6532032E00
€ 44.00
24
6511032E00
ref: 24
TIRE,RR(120/90-17 64S)
€ 99.50
25
6520032E00
ref: 25
TUBE ASSY,WHEEL INNER
€ 31.00
26
6526132E00
ref: 26
PROTECTOR,WHEEL,INNER
€ 5.50
