FOOTREST

DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37

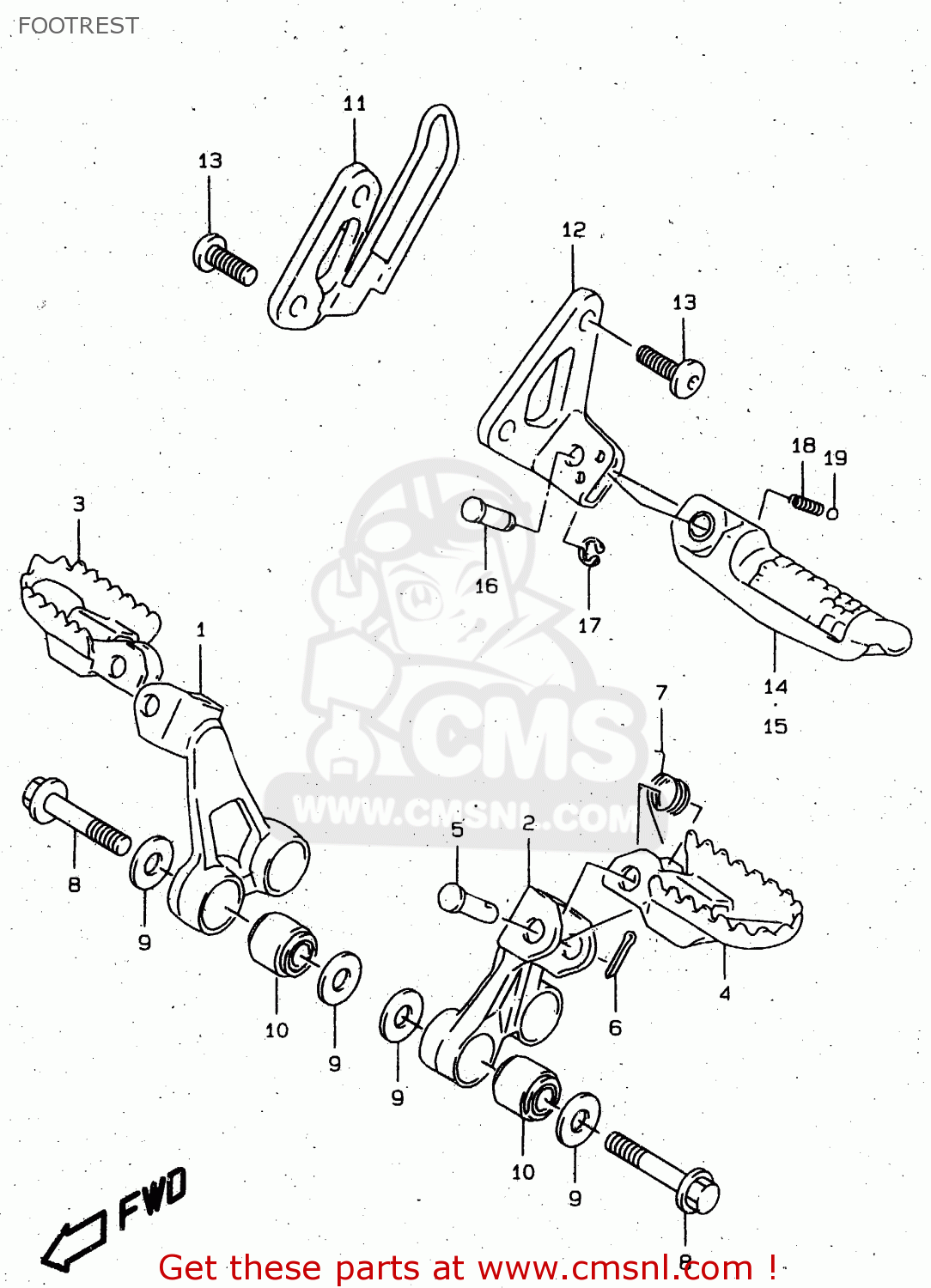

Footrest diagram DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37

FOOTREST DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37
FOOTREST DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37
FOOTREST DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37
prices are in EUR
ref
part #
description
quantity
1
4351032E00
ref: 1
BRACKET,FR FOOTREST,R
4351032E00
€ 49.50
2
4352032E00
ref: 2
BRACKET,FR FOOTREST,L
€ 49.50
3
4355014D10019
ref: 3
MODEL T/V
FOOTREST COMP,FRONT,RIGHT
€ 69.00
3
4355014D30
ref: 3
MODEL W/X
FOOTREST,FRONT,RIGHT
4355014D30
€ 17.50
4
4356014D10019
ref: 4
MODEL T/V
FOOTREST COMP,FRONT,LEFT
€ 122.00
4
4356014D30
ref: 4
MODEL W/X
FOOTREST,FRONT,LEFT
€ 17.50
5
0920010013
ref: 5
PIN
0920010013
€ 2.50
6
0411120208
ref: 6
PIN 20X20
0411120208
€ 1.50
7
0944815004
ref: 7
SPRING
0944815004
€ 2.50
8
0910310232
ref: 8
BOLT(10X50)
0910310232
€ 4.50
9
0916010059
ref: 9
MODEL T/V
WASHER
0916010059
€ 2.50
9
0916010124
ref: 9
MODEL W/X
WASHER(10.1X23X2.3)
0916010124
€ 2.50
10
0931910033
ref: 10
BUSH(10.2X25X19)
0931910033
€ 6.50
11
4365032E00019
ref: 11
BRACKET,PILLION FOOT,R(BLACK)
€ 38.00
12
4375032E00019
ref: 12
BRACKET,PILLION FOOT,L(BLACK)
4375032E00019
€ 32.00
13
0910608118
ref: 13
BOLT 8X20
€ 4.00
14
4361023E00
ref: 14
BAR,PILLION FOOTREST,R
4361023E00
€ 33.00
15
4371023E00
ref: 15
BAR,PILLION FOOTREST,L
4371023E00
€ 33.00
16
0920808011
ref: 16
PIN
0920808011
€ 3.00
17
0833211063
ref: 17
E.RING
0833211063
€ 2.00
18
0944005005
ref: 18
SPRING
0944005005
€ 1.50
19
0611107004
ref: 19
BALL
0611107004
€ 1.50
