CLUTCH

DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37

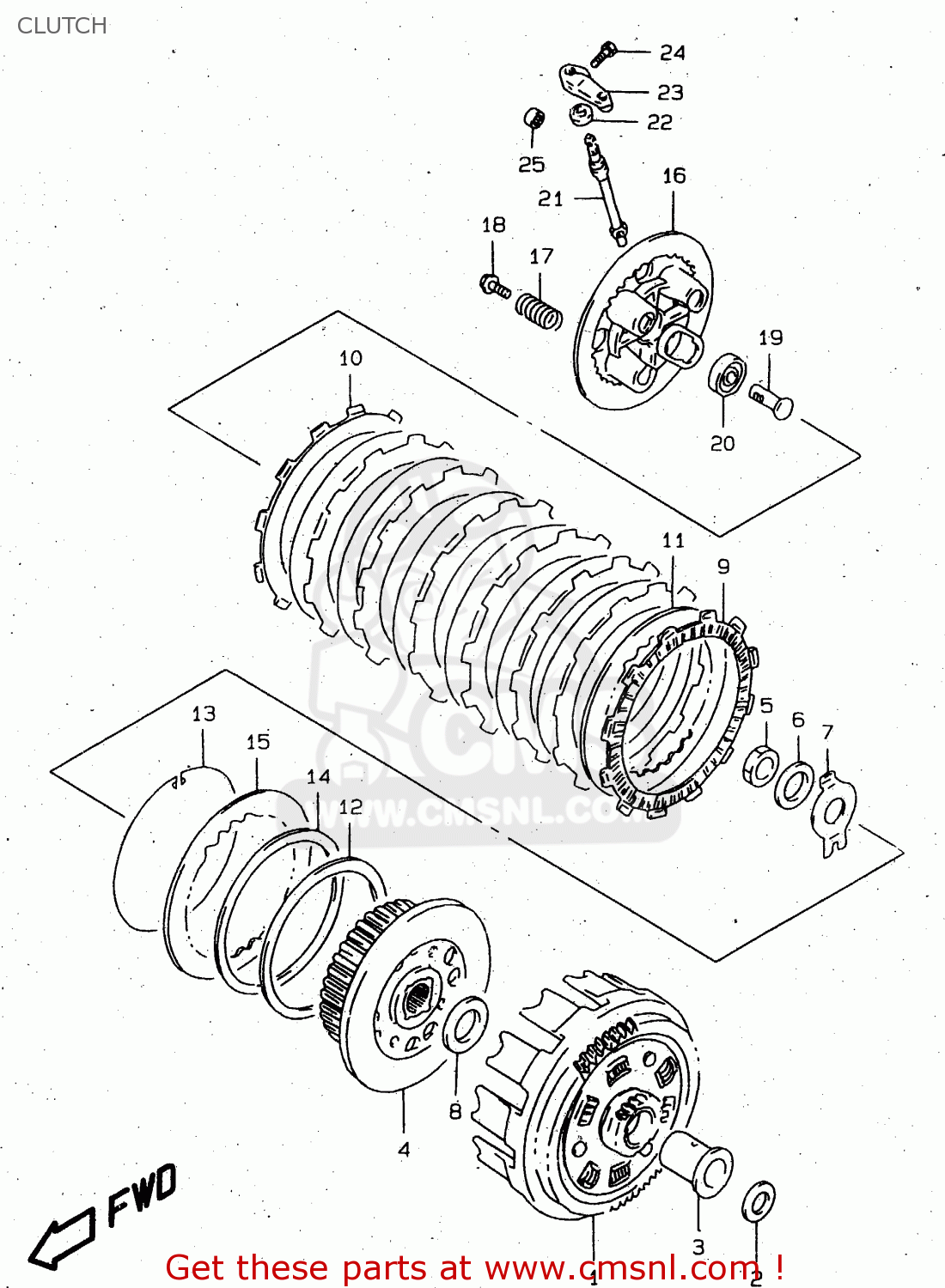

Clutch diagram DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37

CLUTCH DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37
CLUTCH DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37
CLUTCH DR650SE 1999 (X) (E02 E04 E17 E18 E22 E24 E34) P37
prices are in EUR
ref
part #
description
quantity
1
2120044B13
ref: 1
<-21200-44B12
GEAR ASSEMBLY,PRIMARY DRIVE
€ 296.00
2
0916022032
ref: 2
WASHER(22X32X3)
0916022032
€ 4.00
3
2125132E00
ref: 3
SPACER,PRIMARY DRIVEN GEAR
2125132E00
€ 18.00
4
2141044B00
ref: 4
HUB,CLUTCH SLEEVE
2141044B00
€ 95.50
5
0914020001
ref: 5
<-09140-20002
NUT
0914020001
€ 3.50
6
0916420002
ref: 6
WASHER
0916420002
€ 3.50
7
0916920005
ref: 7
WASHER
0916920005
€ 2.50
8
0916022068
ref: 8
WASHER(22X44X2)
0916022068
€ 9.00
9
2144131D00
ref: 9
PLATE,CLUTCH DRIVE (NAS)
2144131D00
€ 16.00
10
2144144B01
ref: 10
PLATE,CLUTCH DRIVE (NAS)
2144144B01
€ 13.50
11
2145144B00
ref: 11
T:1.6
PLATE,CLUTCH DRIVEN NO.1 (NAS)
2145144B00
€ 7.00
12
2147149100
ref: 12
SEAT,WAVE WASHER
2147149100
€ 8.00
13
2148145100
ref: 13
RING,STOPPER
2148145100
€ 5.00
14
0916400003
ref: 14
WASHER
0916400003
€ 9.00
15
2145149200
ref: 15
T:2
PLATE,CLUTCH DRIVEN (NAS)
2145149200
€ 6.00
16
2146231D00
ref: 16
DISC,CLUTCH PRESSURE
2146231D00
€ 38.50
17
0944020016
ref: 17
SPRING
0944020016
€ 5.00
18
0911606168
ref: 18
BOLT(6X16)
0911606168
€ 2.50
19
2316531D00
ref: 19
RACK,CLUTCH RELEASE
2316531D00
€ 17.00
20
0813062007
ref: 20
MODEL T
BEARING
0813062007
€ 12.50
20
0815062007
ref: 20
MODEL V/W/X
BEARING
0815062007
€ 15.50
21
2326132E00
ref: 21
PINION,CLUTCH RELEASE
2326132E00
€ 39.00
22
0928510004
ref: 22
SEAL,OIL(10X17X5)
0928510004
€ 3.50
23
2327131D00
ref: 23
ARM,CLUTCH RELEASE
2327131D00
€ 27.50
24
0150006163
ref: 24
BOLT
0150006163
€ 2.00
25
0926312024
ref: 25
BEARING(12X16X10)
0926312024
€ 11.00
