CHAIN CASE-REAR SHOCK ABSOBER

GN125 1982 (Z) (E01 E02 E04 E18 E30)

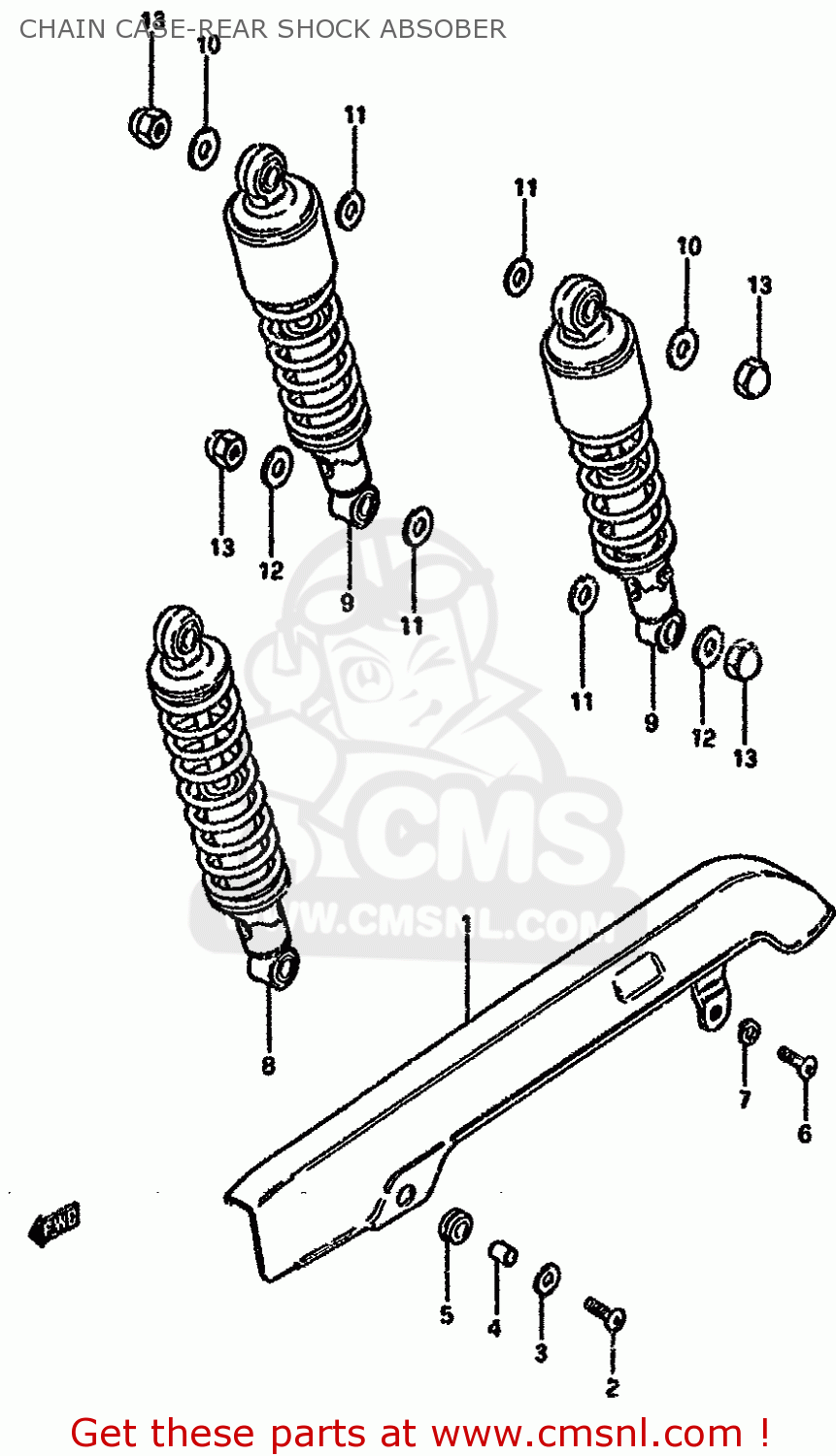

Chain case-rear shock absober diagram GN125 1982 (Z) (E01 E02 E04 E18 E30)

CHAIN CASE-REAR SHOCK ABSOBER GN125 1982 (Z) (E01 E02 E04 E18 E30)
CHAIN CASE-REAR SHOCK ABSOBER GN125 1982 (Z) (E01 E02 E04 E18 E30)
CHAIN CASE-REAR SHOCK ABSOBER GN125 1982 (Z) (E01 E02 E04 E18 E30)
prices are in EUR
ref
part #
description
quantity
1
6131005301
ref: 1
CASE,CHAIN
6131005301
€ 43.50
2-1
0211206167
ref: 2-1
MODEL Z/D/K/M/N
SCREW
0211206167
€ 2.50
2-2
0211206163
ref: 2-2
MODEL R
SCREW 6X16
0211206163
€ 2.00
3
0916006027
ref: 3
WASHER (6.5X20X1.2)
0916006027
€ 2.00
4
0918007005
ref: 4
SPACER (7X9X7)
0918007005
€ 2.50
5
0932008021
ref: 5
CUSHION
0932008021
€ 4.00
6-1
0211206167
ref: 6-1
MODEL Z/D/K
SCREW
0211206167
€ 2.50
6-2
0211236168
ref: 6-2
MODEL M/N
SCREW
€ 2.00
6-3
0211236163
ref: 6-3
MODEL R
SCREW
0211236163
€ 2.50
7
0832121067
ref: 7
MODEL Z/D/K
WASHER,LOCK
0832121067
€ 2.50
8
6210005300
ref: 8
MODEL Z
ABSORBER ASSY,RR SHOCK
€ 141.50
9
6210005330
ref: 9
MODEL D/K/M/N/R
ABSORBER ASSY,RR SHOCK
€ 178.00
10-1
0916010001
ref: 10-1
WASHER
0916010001
€ 2.00
10-2
0916010001
ref: 10-2
E22
WASHER
0916010001
€ 2.00
10-3
0916010001
ref: 10-3
GN125EN/ER E30
WASHER
0916010001
€ 2.00
11
0916012020
ref: 11
WASHER (12.5X27X1.6)
0916012020
€ 2.00
12
0916010001
ref: 12
WASHER
0916010001
€ 2.00
13-1
0831311107
ref: 13-1
MODEL Z/D/K/M/N
NUT
0831311107
€ 2.50
13-2
0831310107
ref: 13-2
MODEL R
NUT
0831310107
€ 2.50
