FRONT FENDER-HEADLAMP HOUSING

GN125 1982 (Z) (E01 E02 E04 E18 E30)

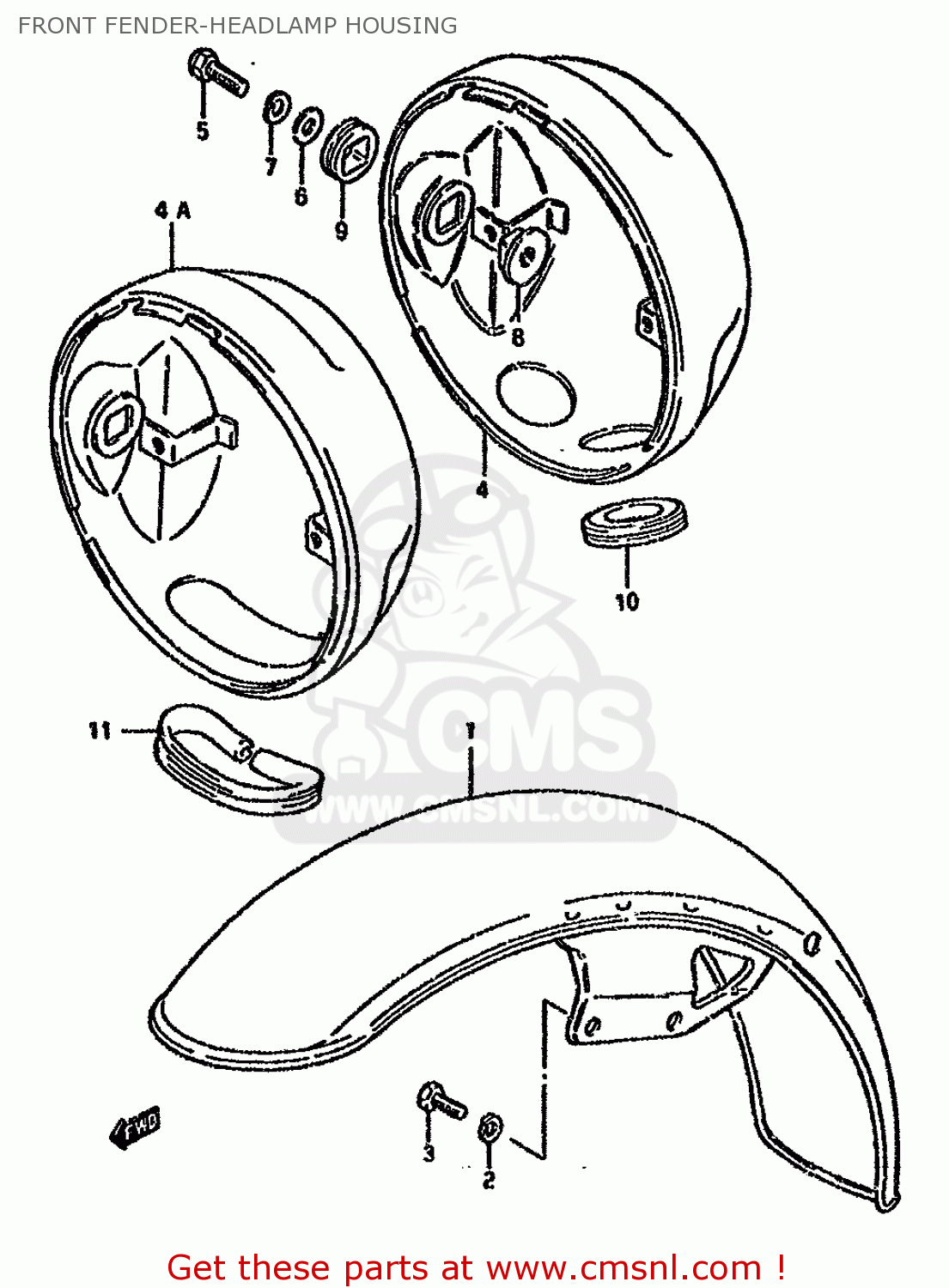

Front fender-headlamp housing diagram GN125 1982 (Z) (E01 E02 E04 E18 E30)

prices are in EUR

ref

part #

description

quantity

5311005301
ref: 1

FENDER,FR

€ 87.00

0832121088
ref: 2
MODEL Z/D/K

LOCK WASHER

€ 2.00

3-1

0110708167
ref: 3-1
MODEL Z/D/K

BOLT,8X16

€ 2.00

3-2

0113708168
ref: 3-2
MODEL M/N

BOLT

€ 2.50

3-3

0157008163
ref: 3-3
MODEL R

BOLT, UPPER

€ 2.00

5181044200
ref: 4
MODEL Z/D/K/M/N

HOUSING,HEADLAMP

€ 76.50

5181044201
ref: 4A
MODEL R

HOUSING,HEADLAMP

€ 76.50

5-1

0120408207
ref: 5-1
MODEL Z/D/K/M/N

BOLT

€ 3.00

5-2

0126408207
ref: 5-2
MODEL R

BOLT

€ 3.00

0832221088
ref: 6
MODEL Z/D/K/M/N

WASHER

€ 2.00

0832121088
ref: 7
MODEL Z/D/K/M/N

LOCK WASHER

€ 2.00

5182136200
ref: 8

SPACER,HEADLAMP HOUSING

€ 7.50

5182727302
ref: 9

CUSHION,HEADLAMP HOUSING

€ 3.00

5184531031
ref: 10
MODEL Z/D/K/M/N

GROMMET,HEADLAMP HOUSING

€ 4.00

9463133C01
ref: 11
MODEL R

MOLDING WINDSCREEN

€ 10.00

FRONT FENDER-HEADLAMP HOUSING

all assemblies
