REAR WHEEL (GN125Z/D/K/M/R)

GN125 1982 (Z) (E01 E02 E04 E18 E30)

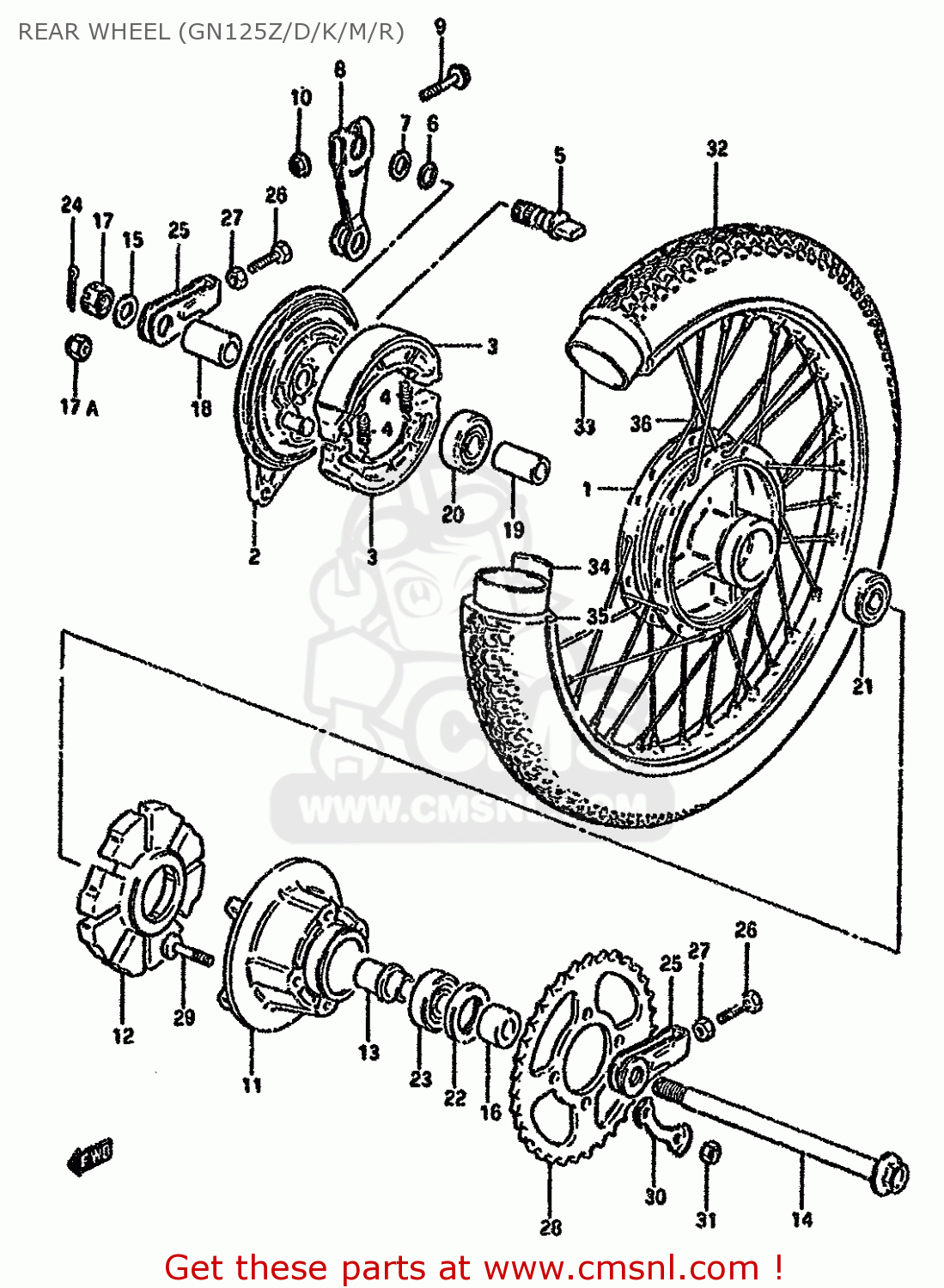

Rear wheel (gn125z/d/k/m/r) diagram GN125 1982 (Z) (E01 E02 E04 E18 E30)

REAR WHEEL (GN125Z/D/K/M/R) GN125 1982 (Z) (E01 E02 E04 E18 E30)
REAR WHEEL (GN125Z/D/K/M/R) GN125 1982 (Z) (E01 E02 E04 E18 E30)
REAR WHEEL (GN125Z/D/K/M/R) GN125 1982 (Z) (E01 E02 E04 E18 E30)
prices are in EUR
ref
part #
description
quantity
1-1
6411007604
ref: 1-1
~F.NO.179060
HUB,RR
6411007604
€ 149.00
1-2
6411007005
ref: 1-2
F.NO.179061~
HUB,RR WHEEL
€ 234.00
2-1
6421039104
ref: 2-1
~F.NO.179060
PANEL,RR BRAKE ANCHOR
€ 165.50
2-2
6421039115
ref: 2-2
F.NO.179061~
PANEL,RR BRAKE ANCHOR
6421039115
€ 125.00
3-1
5441007003
ref: 3-1
MODEL Z/D/K/M/N E1,E
SHOE,BRAKE
5441007003
€ 35.00
3-2
5441007040
ref: 3-2
MODEL M E34 MODEL R
SHOE,BRAKE
€ 35.00
4
0944307001
ref: 4
SPRING(L:34)
0944307001
€ 2.50
5
5444129305
ref: 5
-54441-29304
CAM,BRAKE
5444129305
€ 13.00
6
0928014003
ref: 6
O-RING (D:2.4 ID:13.8)
0928014003
€ 3.50
7
0916014001
ref: 7
WASHER (14.5X22X1.6)
0916014001
€ 2.50
8
6445148000
ref: 8
LEVER,RR BRAKE CAM
6445148000
€ 32.50
9-1
0151706358
ref: 9-1
MODEL Z/D/K/M
BOLT 6X35
0151706358
€ 2.50
9-2
0155006353
ref: 9-2
MODEL R
BOLT
0155006353
€ 2.50
10-1
0915906017
ref: 10-1
MODEL Z/D/K/M
NUT
0915906017
€ 2.50
10-2
0831610063
ref: 10-2
MODEL R
NUT
0831610063
€ 2.50
11
6461005301
ref: 11
DRUM,RR SPROCKET MOUNTING
€ 61.00
12
6465107001
ref: 12
ABSORBER ASSY,HUB SHOCK
6465107001
€ 16.00
13
6473305301
ref: 13
RETAINER,RR SPROCKET DRUM
6473305301
€ 6.50
14-1
6471105300
ref: 14-1
-64711-48001
AXLE,REAR
6471105300
€ 35.50
14-2
6471148001
ref: 14-2
AXLE,RR
6471148001
€ 35.50
14-3
6471105310
ref: 14-3
E22
AXLE,RR
€ 25.00
15-1
0832211148
ref: 15-1
MODEL Z/D/K/M E1,E2,
WASHER
0832211148
€ 2.00
15-2
0832201143
ref: 15-2
MODEL R E1,E2,E4,E18
WASHER
0832201143
€ 2.00
16
0918015042
ref: 16
SPACER(15X28X19)
0918015042
€ 5.50
17
0914114001
ref: 17
E1,E2,E4,E18,E21,E34
NUT
0914114001
€ 4.50
17A
0915914008
ref: 17A
E22
NUT
0915914008
€ 5.00
18
0918015002
ref: 18
SPACER(15.2X26X33)
0918015002
€ 5.00
19
0918015011
ref: 19
SPACER(15.3X21.7X63)
0918015011
€ 7.50
20
0814463027
ref: 20
BEARING
0814463027
€ 17.50
21
0814362027
ref: 21
BEARING
0814362027
€ 12.50
22
0928528001
ref: 22
SEAL,OIL(28X47X7)
0928528001
€ 11.50
23
0926220069
ref: 23
BEARING(20X47X14)
0926220069
€ 28.00
24
0411130308
ref: 24
E1,E2,E4,E18,E21,E34
COTTER PIN
0411130308
€ 1.50
25
6141036002
ref: 25
ADJUSTER,CHAIN
6141036002
€ 11.50
26-1
0910408006
ref: 26-1
-09104-08034
BOLT
0910408006
€ 3.00
26-2
0910408034
ref: 26-2
BOLT(8X50)
0910408034
€ 3.00
27-1
0831012088
ref: 27-1
MODEL Z/D/K/M
NUT
0831012088
€ 2.00
27-2
0831000087
ref: 27-2
MODEL R
NUT
0831000087
€ 2.00
28-1
6451139300
ref: 28-1
MODEL Z/D/K/M
SPROCKET,REAR
6451139300
€ 57.00
28-2
6451112601
ref: 28-2
MODEL R
SPROCKET,REAR (NT:42)
€ 0.00
29
0911908043
ref: 29
BOLT
0911908043
€ 2.00
30
0916908012
ref: 30
WASHER
0916908012
€ 2.00
31-1
0831012088
ref: 31-1
MODEL Z/D/K/R
NUT
0831012088
€ 2.00
31-2
0831000083
ref: 31-2
MODEL R
NUT
0831000083
€ 1.50
32-1
6510005310
ref: 32-1
MODEL Z/D/K
TIRE
€ 0.00
32-2
6510005320
ref: 32-2
MODEL M/R
TIRE,RR(3.50-16 4PR)
€ 0.00
33
6520026700
ref: 33
TUBE
€ 29.00
34-1
5526108010
ref: 34-1
-65261-37300
PROTECTOR,WHEEL,INNER
€ 4.50
34-2
6526137300
ref: 34-2
PROTECTOR,INNER TUBE
6526137300
€ 4.50
35
6531105300
ref: 35
RIM,RR WHEEL(185X16)
6531105300
€ 91.50
36-1
6532005300
ref: 36-1
MODEL Z/D/K/M/N
SPOKE SET,REAR WHEEL
€ 37.00
36-2
6532038301
ref: 36-2
MODEL R
SPOKE ASSY,RR WHEEL
6532038301
€ 37.00
