HEADLAMP (MODEL N/R E30)

GN125 1982 (Z) (E01 E02 E04 E18 E30)

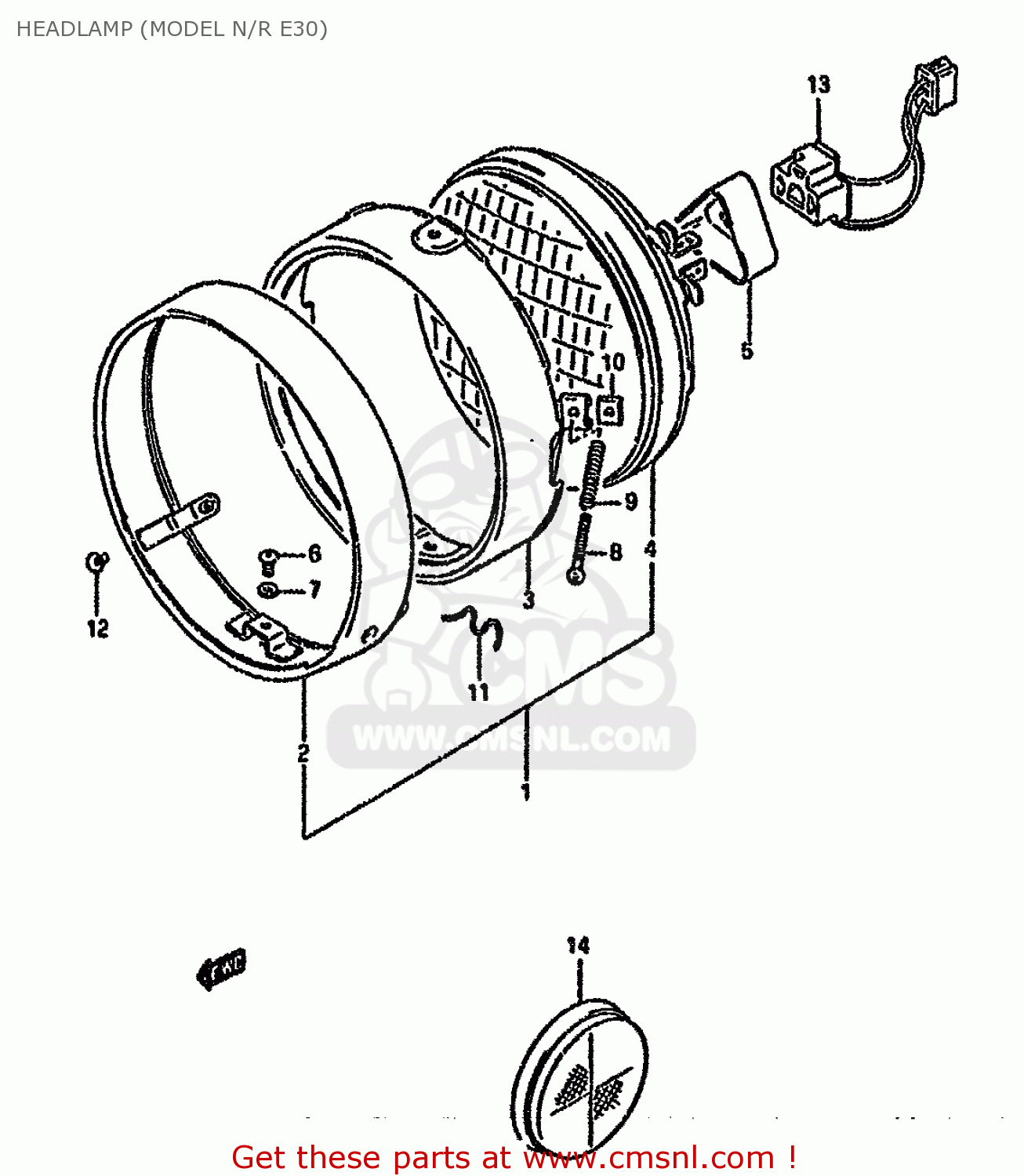

Headlamp (model n/r e30) diagram GN125 1982 (Z) (E01 E02 E04 E18 E30)

HEADLAMP (MODEL N/R E30) GN125 1982 (Z) (E01 E02 E04 E18 E30)
HEADLAMP (MODEL N/R E30) GN125 1982 (Z) (E01 E02 E04 E18 E30)
HEADLAMP (MODEL N/R E30) GN125 1982 (Z) (E01 E02 E04 E18 E30)
prices are in EUR
ref
part #
description
quantity
1
3510044250
ref: 1
LAMP ASSEMBLY,HEAD
3510044250
€ 124.00
2
3511144250
ref: 2
RIM
3511144250
€ 34.50
3
3512729610
ref: 3
RETAINER
3512729610
€ 15.50
4
3512144250
ref: 4
12V,45/40W
LAMP UNIT
3512144250
€ 124.00
5
3517329610
ref: 5
COVER
3517329610
€ 3.00
6
3513629610
ref: 6
SCREW
3513629610
€ 3.00
7
0832121057
ref: 7
LOCK WASHER
0832121057
€ 2.00
8
3515131610
ref: 8
SCREW
3515131610
€ 4.00
9
3515433630
ref: 9
SPRING
3515433630
€ 2.50
10
3515215611
ref: 10
NUT
3515215611
€ 3.50
11
3512829611
ref: 11
SPRING,HEAD LAMP UNIT
3512829611
€ 3.50
12-1
0912705013
ref: 12-1
MODEL N
SCREW(5X12)
0912705013
€ 2.50
12-2
0211205127
ref: 12-2
MODEL R
SCREW
0211205127
€ 2.50
13
3685330500
ref: 13
LEAD WIRE,HEADLAMP
3685330500
€ 13.00
14
3595049080
ref: 14
REFLEX REFLECTOR,RR
3595049080
€ 17.50
16
0912705013
ref: 16
SCREW(5X12)
0912705013
€ 2.50
17
0916905008
ref: 17
MODEL K/M/R
WASHER
0916905008
€ 3.00
18
0214205087
ref: 18
MODEL K/M/R
SCREW
0214205087
€ 2.00
