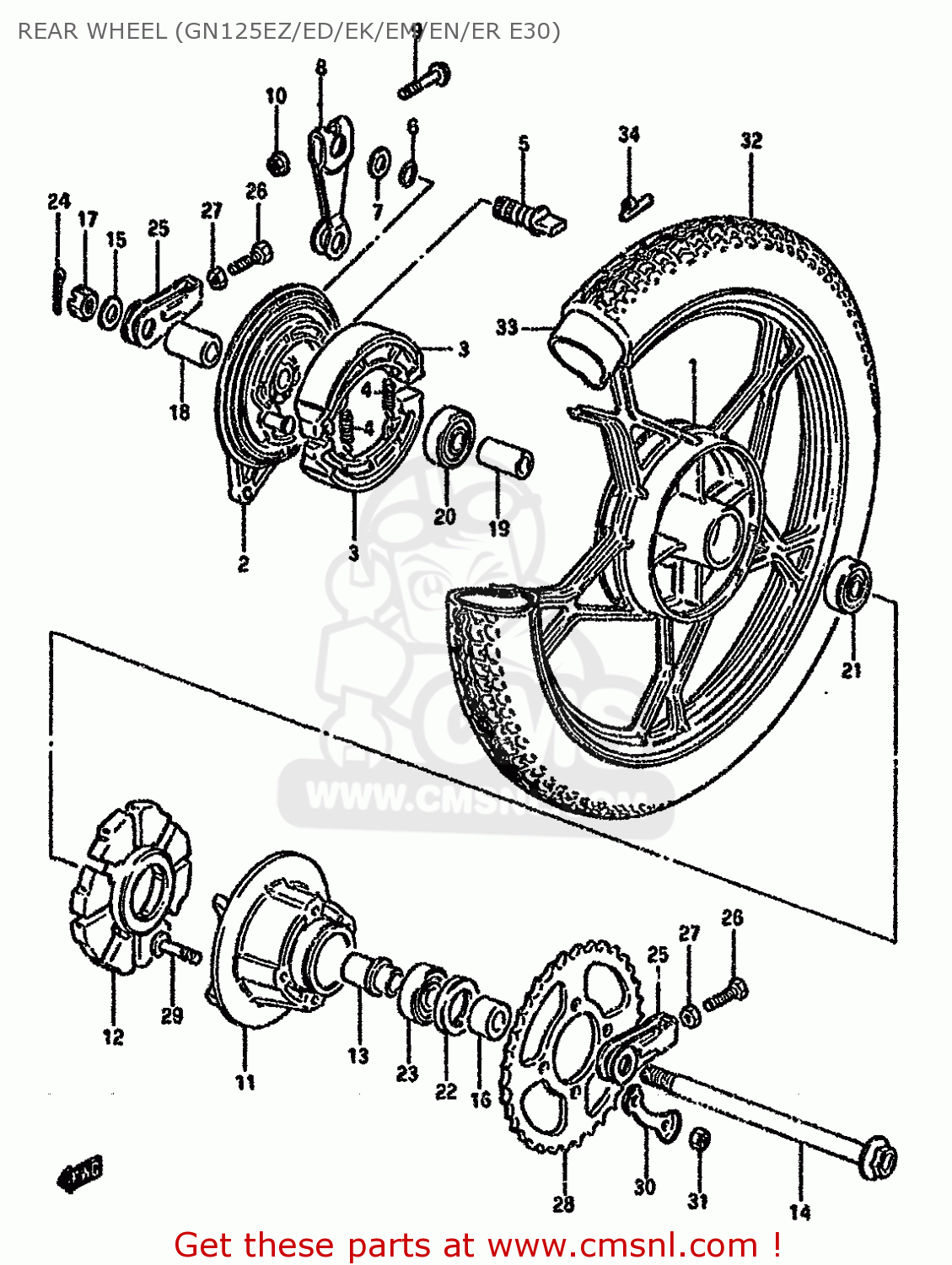

REAR WHEEL (GN125EZ/ED/EK/EM/EN/ER E30)

ref

part #

description

quantity

1-1

641503830012V
ref: 1-1
MODEL Z/D/K

WHEEL,REAR (2.15X16)(GOLD)

€ 532.50

1-2

6415038300291
ref: 1-2
MODEL M/N/R

WHEEL,RR(2.15X10)

€ 532.50

2

6421039104
ref: 2

PANEL,RR BRAKE ANCHOR

€ 165.50

3-1

5441007004
ref: 3-1
MODEL Z/D/K/M/N

SHOE,BRAKE

€ 35.00

3-2

5441007040
ref: 3-2
MODEL R

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129304
ref: 5

CAM,FRONT BRAKE

€ 13.00

6

0928014003
ref: 6

O-RING (D:2.4 ID:13.8)

€ 3.50

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

6445148000
ref: 8

LEVER,RR BRAKE CAM

€ 32.50

9-1

0151706358
ref: 9-1
MODEL Z/D/K/M/N

BOLT 6X35

€ 2.50

9-2

0155006353
ref: 9-2
MODEL R

BOLT

€ 2.50

10-1

0915906017
ref: 10-1
MODEL Z/D/K/M/N

NUT

€ 2.50

10-2

0831610063
ref: 10-2
MODEL R

NUT

€ 2.50

11

6461005301
ref: 11

DRUM,RR SPROCKET MOUNTING

€ 61.00

12

6465138300
ref: 12

ABSORBER,RR HUB SHOCK

€ 20.00

13

6473305301
ref: 13

RETAINER,RR SPROCKET DRUM

€ 6.50

14-1

6471105300
ref: 14-1
-64711-48001

AXLE,REAR

€ 35.50

14-2

6471148001
ref: 14-2

AXLE,RR

€ 35.50

15-1

0832211148
ref: 15-1
MODEL Z/D/K/M/N

WASHER

€ 2.00

15-2

0832201143
ref: 15-2
MODEL R

WASHER

€ 2.00

16

0918015042
ref: 16

SPACER(15X28X19)

€ 5.50

17

0914114001
ref: 17

NUT

€ 4.50

18

0918015002
ref: 18

SPACER(15.2X26X33)

€ 5.00

19

0918015011
ref: 19

SPACER(15.3X21.7X63)

€ 7.50

20

0814463027
ref: 20

BEARING

€ 17.50

21

0814362027
ref: 21

BEARING

€ 12.50

22

0928528001
ref: 22

SEAL,OIL(28X47X7)

€ 11.50

23

0926220069
ref: 23

BEARING(20X47X14)

€ 28.00

24

0411130308
ref: 24

COTTER PIN

€ 1.50

25

6141036002
ref: 25

ADJUSTER,CHAIN

€ 11.50

26-1

0910408006
ref: 26-1
-09104-08034

BOLT

€ 3.00

26-2

0910408034
ref: 26-2
MODEL R

BOLT(8X50)

€ 3.00

27-1

0831012088
ref: 27-1
MODEL Z/D/K/M/N

NUT

€ 2.00

27-2

0831000087
ref: 27-2
MODEL R

NUT

€ 2.00

28

6451139300
ref: 28

SPROCKET,REAR

€ 57.00

29

0911908043
ref: 29

BOLT

€ 2.00

30

0916908012
ref: 30

WASHER

€ 2.00

31-1

0831012088
ref: 31-1
MODEL Z/D/K/M/N

NUT

€ 2.00

31-2

0831000083
ref: 31-2
MODEL R

NUT

€ 1.50

32-1

6510005310
ref: 32-1
MODEL Z/D/K

TIRE

€ 0.00

32-2

6510005320
ref: 32-2
MODEL M/N/R

TIRE,RR(3.50-16 4PR)

€ 0.00

33

6520026700
ref: 33

TUBE

€ 29.00

34-1

5541145100
ref: 34-1
MODEL Z/D

BALANCER,WHEEL

€ 7.00

34-2

5541245100
ref: 34-2
MODEL Z/D

BALANCER,WHEEL

€ 4.00

34-3

5541345100
ref: 34-3
MODEL Z/D

BALANCER,WHEEL

€ 6.50

34-4

5541100A00
ref: 34-4
MODEL K/M

BALANCER,WHEEL (10G)

€ 6.50

34-5

5541200A00
ref: 34-5
MODEL K/M

BALANCER,WHEEL

€ 7.00

34-6

5541300A00
ref: 34-6
MODEL K/M

BALANCER,WHEEL

€ 4.00

34-7

5541147001
ref: 34-7
MODEL N/R

BALANCER,WHEEL

€ 4.00

34-8

5541247001
ref: 34-8
MODEL N/R

BALANCER,WHEEL

€ 3.50

34-9

5541247001
ref: 34-9
MODEL N/R

BALANCER,WHEEL

€ 3.50
