FRONT MASTER CYLINDER (MODEL M/N/R)

GN125 1982 (Z) (E01 E02 E04 E18 E30)

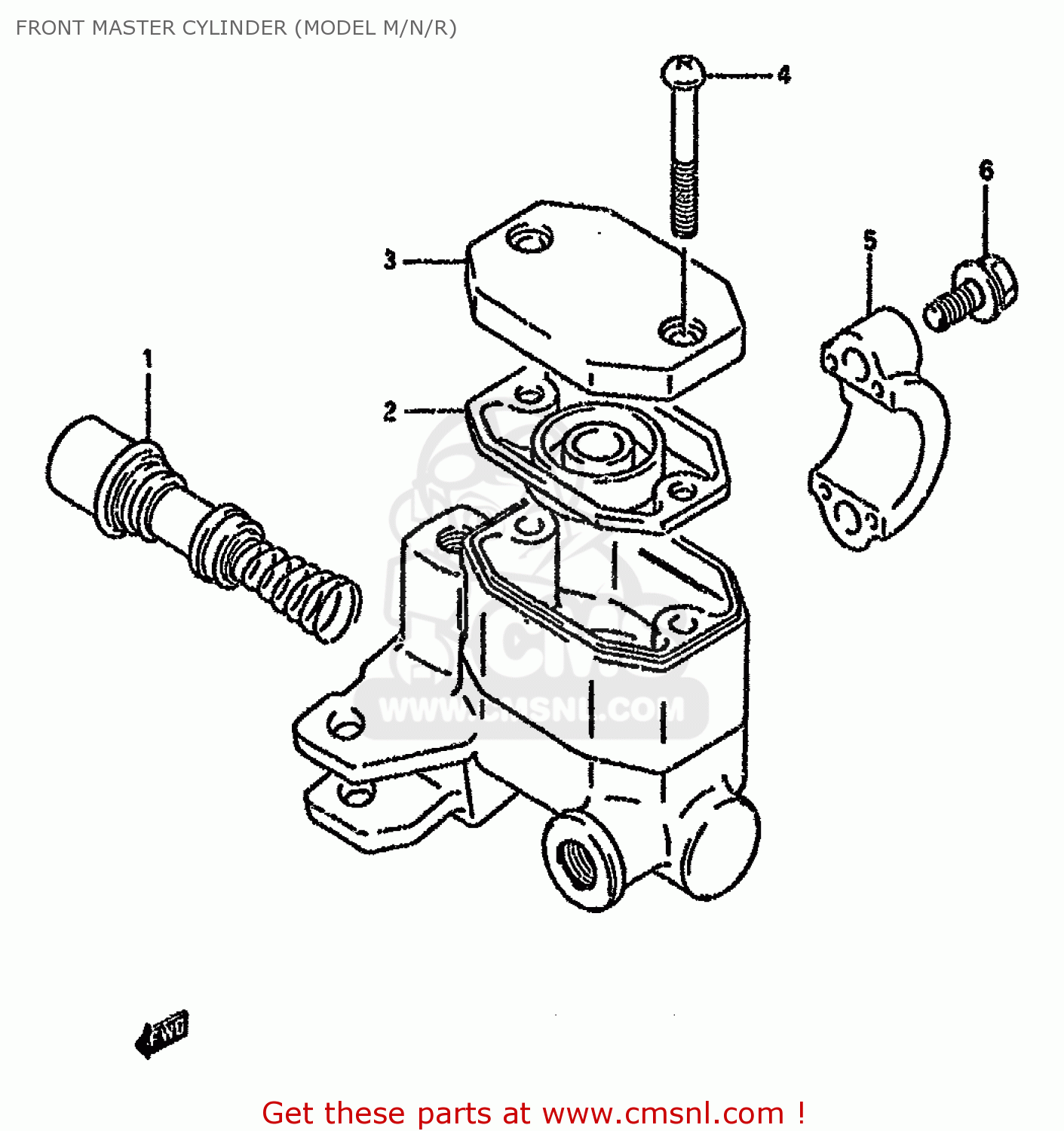

Front master cylinder (model m/n/r) diagram GN125 1982 (Z) (E01 E02 E04 E18 E30)

prices are in EUR

ref

part #

description

quantity

5960005350
ref: 0
MODEL M E1,E2,E30

CYLINDER ASSY,FR MASTER

€ 188.00

5960005360
ref: 0
MODEL M E4,E21,E34 M

CYLINDER ASSY,FR MASTER

€ 263.00

5960036810
ref: 1

PISTON & CUP SET

€ 38.50

5966736500
ref: 2

DIAPHRAGM

€ 8.00

3-1

5966936500
ref: 3-1
MODEL M E1,E2,E30

CAP,RESERVOIR

€ 13.50

3-2

5966936510
ref: 3-2
MODEL M E4,E21,E34 M

CAP

€ 9.00

5969136500
ref: 4

SCREW

€ 1.50

5967105300
ref: 5

HOLDER

€ 13.00

0155006253
ref: 6

BOLT

€ 2.50

5967105300
ref: 7

HOLDER

€ 13.00

0110706255
ref: 8

BOLT

€ 2.50

0832221064
ref: 9

WASHER

€ 2.00
