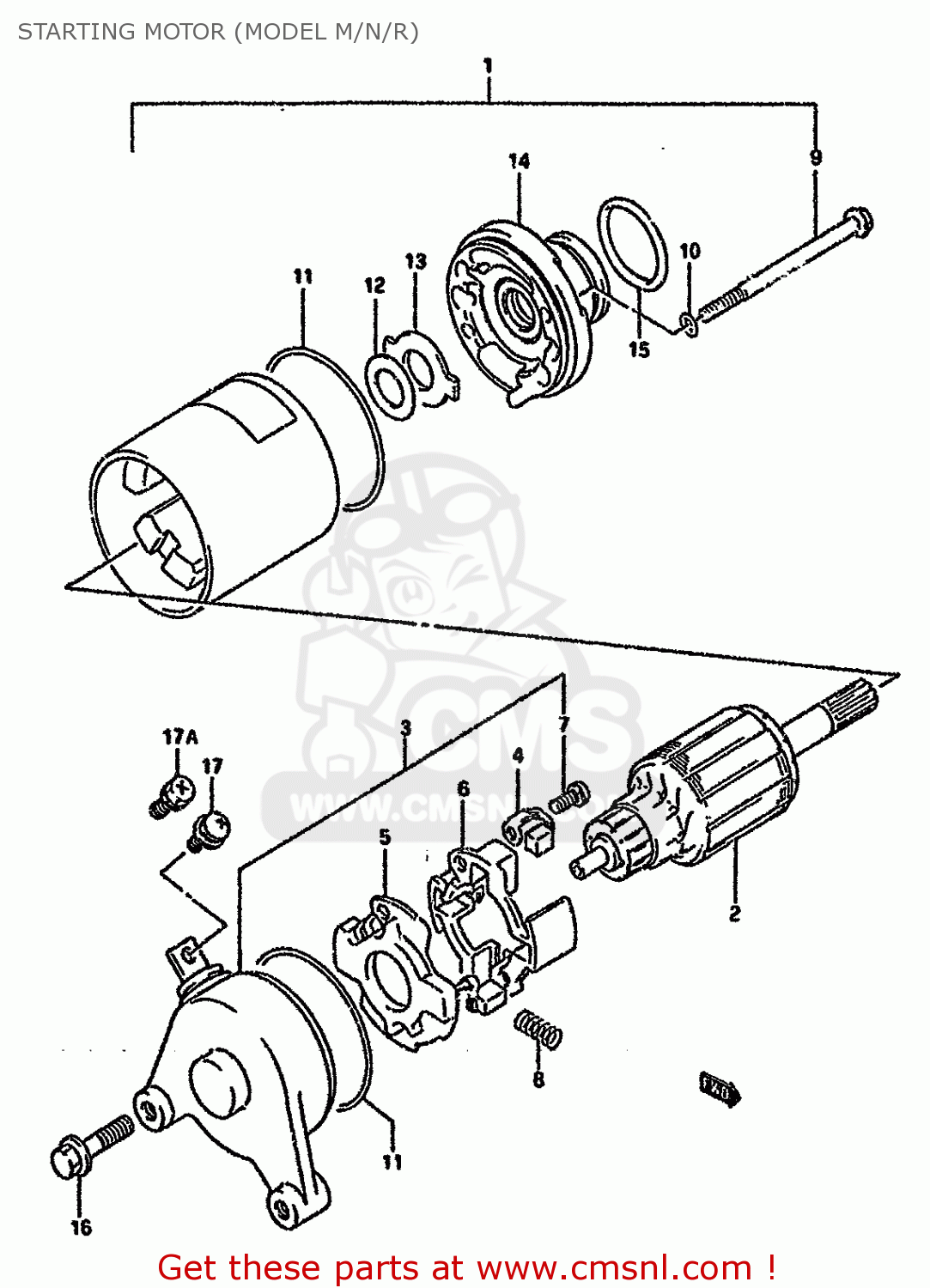

STARTING MOTOR (MODEL M/N/R)

ref

part #

description

quantity

1-1

3110005320
ref: 1-1
MODEL M/N

MOTOR ASSEMBLY,STARTING

€ 899.00

1-2

3110005500
ref: 1-2
MODEL R

MOTOR ASSEMBLY,STARTING

€ 899.00

2

3131011D00
ref: 2

ARMATURE

€ 265.50

3-1

3117505320
ref: 3-1
MODEL M/N

FRAME ASSEMBLY,COMMUTATOR

€ 66.50

3-2

3117529B00
ref: 3-2
MODEL R

FRAME ASSEMBLY,COMMUTATOR

€ 66.50

4

3113232C10
ref: 4

BRUSH

€ 14.50

5

3113032C20
ref: 5

BRUSH SUB ASSY,STARTER

€ 28.00

6

3113332C10
ref: 6

HOLDER,BRUSH

€ 9.00

7

0211234123
ref: 7

SCREW

€ 2.00

8

3113532C10
ref: 8

SPRING

€ 3.50

9

3128132C10
ref: 9

BOLT

€ 8.50

10

3115638300
ref: 10

O RING

€ 3.00

11

3126432C10
ref: 11

O RING

€ 9.00

12

3136138300
ref: 12

SHIM

€ 1.50

13

3136132C10
ref: 13

PLATE,LOCK

€ 2.50

14-1

3115032C10
ref: 14-1
MODEL M/N

BRACKET

€ 112.00

14-2

3115006C00
ref: 14-2
MODEL R

BRACKET

€ 112.00

15

0928024003
ref: 15

O RING(D:3,ID:24.5)

€ 2.00

16

0154706357
ref: 16

BOLT

€ 2.50

17

0211275087
ref: 17
MODEL M

SCREW

€ 0.00

17A

0913705004
ref: 17A
MODEL N/R

SCREW(5X8)

€ 2.00

21

0832121067
ref: 21

WASHER,LOCK

€ 2.50

22

0916006003
ref: 22

WASHER (6.7X16X1.8)

€ 2.00

23

0928024003
ref: 23

O RING(D:3,ID:24.5)

€ 2.00

24

0154706307
ref: 24

BOLT

€ 2.50

all assemblies
