CRANKCASE
GN125E 1996 (T) USA (E03)

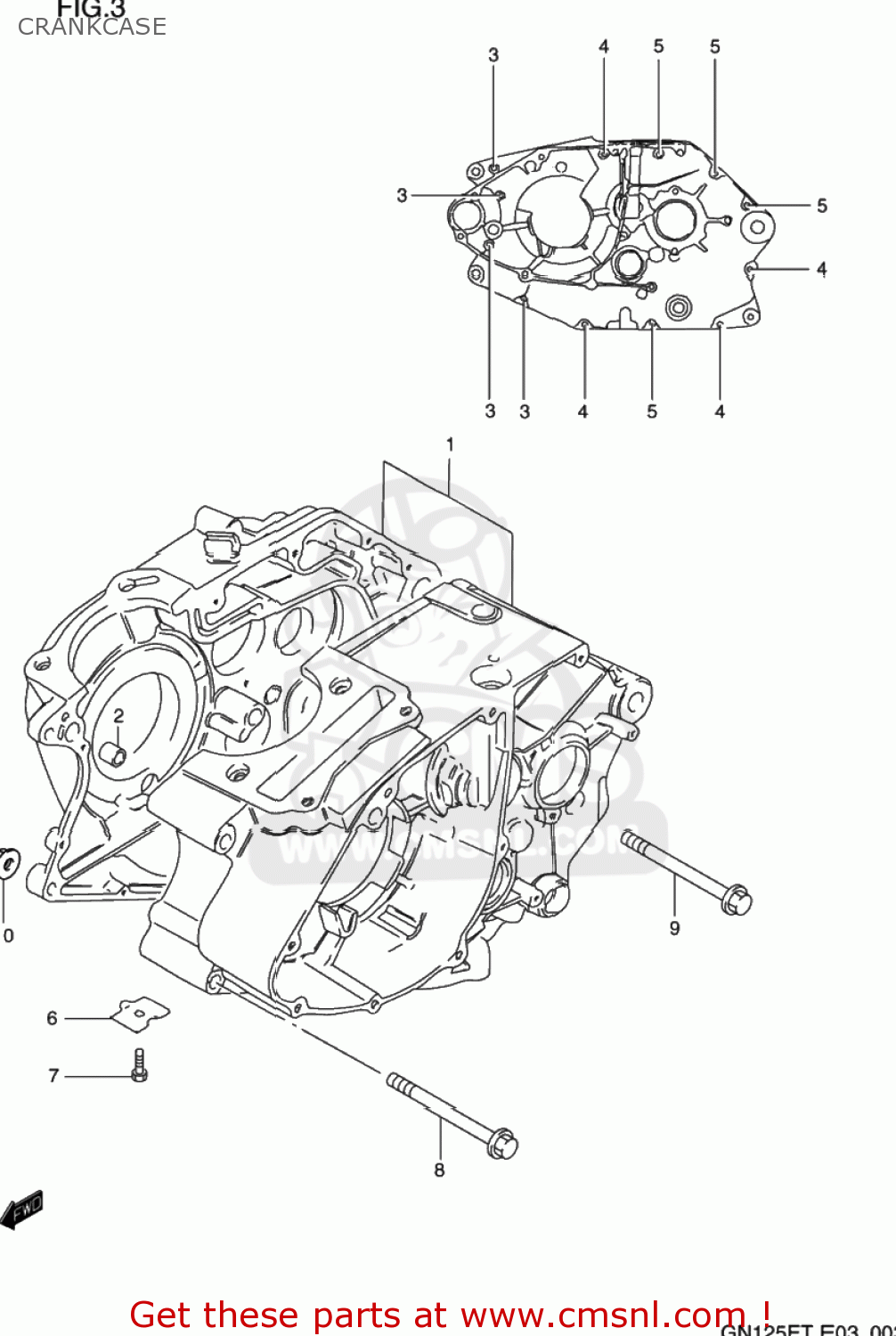

Crankcase diagram GN125E 1996 (T) USA (E03)
CRANKCASE GN125E 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130005301
ref: 1-1
CRANKCASE SET
€ 545.50
1-2
1130005302
ref: 1-2
11300-05304
CRANKCASE SET
€ 545.50
1-3
1130005303
ref: 1-3
11300-05304
CRANKCASE ASSEMBLY
€ 545.50
2
0421113189
ref: 2
PIN
€ 2.50
3
0154706557
ref: 3
BOLT
€ 2.50
4
0154706607
ref: 4
BOLT
€ 2.50
5
0154706757
ref: 5
BOLT
€ 2.50
6
1131905200
ref: 6
PLATE,OIL GALLERY PLUG
€ 2.50
7-1
0150006107
ref: 7-1
BOLT
€ 2.00
7-2
0150006103
ref: 7-2
01500-0610B
BOLT
€ 2.00
8
0910308016
ref: 8
BOLT(8X80)
€ 8.00
9
0910308010
ref: 9
BOLT(8X88)
€ 55.50
10
0831931087
ref: 10
NUT
€ 2.50
