STAND
GN125E 1996 (T) USA (E03)

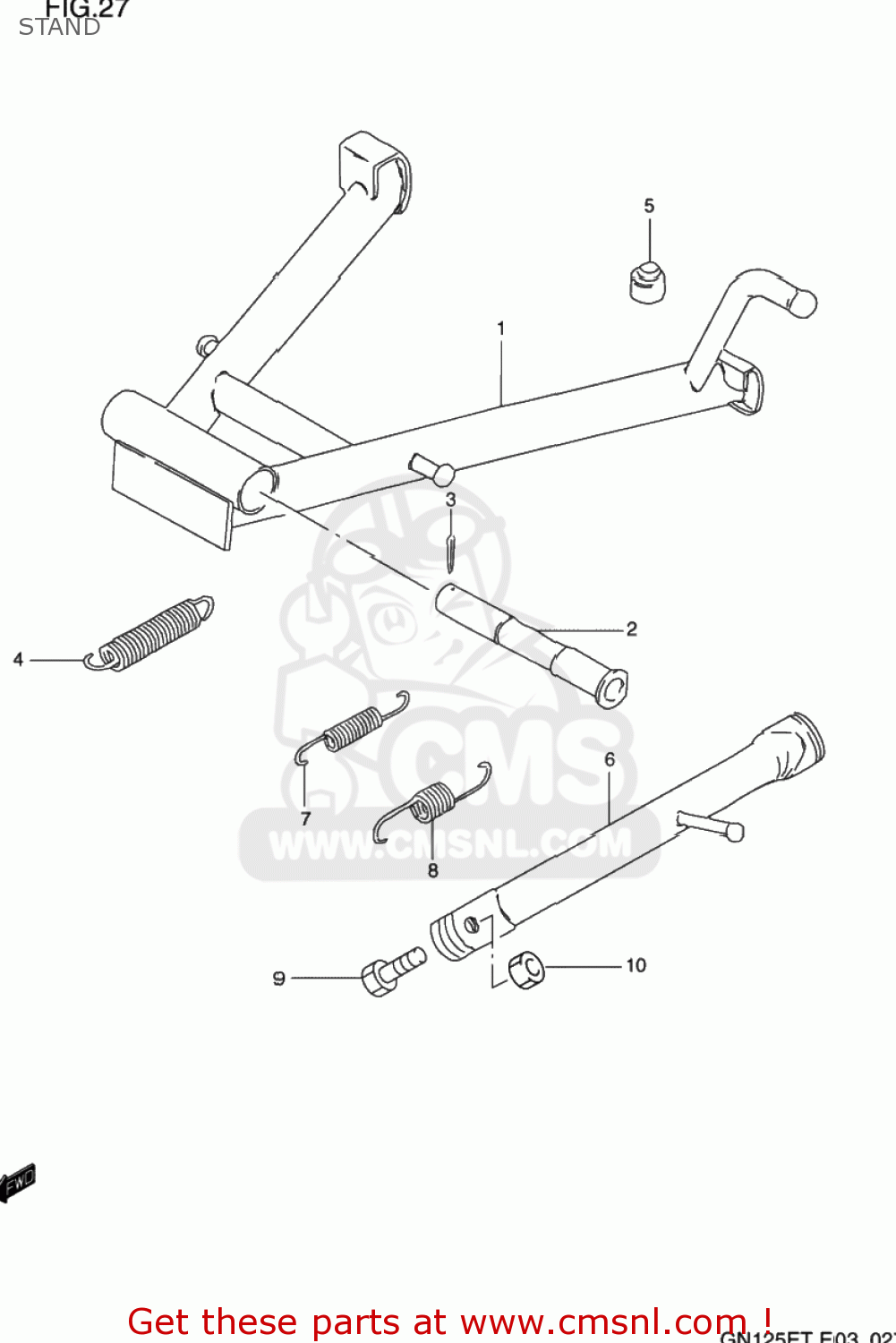

Stand diagram GN125E 1996 (T) USA (E03)
STAND GN125E 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4210005303
ref: 1
STAND,CTR
€ 70.50
2-1
4221136502
ref: 2-1
42211-49F00
SHAFT,CENTER STAND
€ 20.00
2-2
4221136503
ref: 2-2
42211-49F00
SHAFT,CENTER STAND
€ 20.00
2-3
4221136504
ref: 2-3
42211-49F00
SHAFT,CTR STAND
€ 20.00
3
0411130308
ref: 3
04111-3030A
COTTER PIN
€ 1.50
4
0944318006
ref: 4
09443-18006-XC0
SPRING
€ 5.50
5
0932110001
ref: 5
CUSHION
€ 2.50
6
4231005320
ref: 6
STAND,PROP
€ 0.00
7
0944312025
ref: 7
SPRING
€ 18.50
8
0944319006
ref: 8
SPRING
€ 18.00
9-1
0910010067
ref: 9-1
BOLT(10X30)
€ 3.50
9-2
0910010501
ref: 9-2
BOLT(10X30)
€ 2.50
9-3
0910010187
ref: 9-3
BOLT(10X34)
€ 4.50
10-1
0831000107
ref: 10-1
NUT
€ 2.50
10-2
0914010043
ref: 10-2
NUT
€ 2.00
10-3
0915910060
ref: 10-3
NUT
€ 2.00
