GN125E 1996 (T) USA (E03)

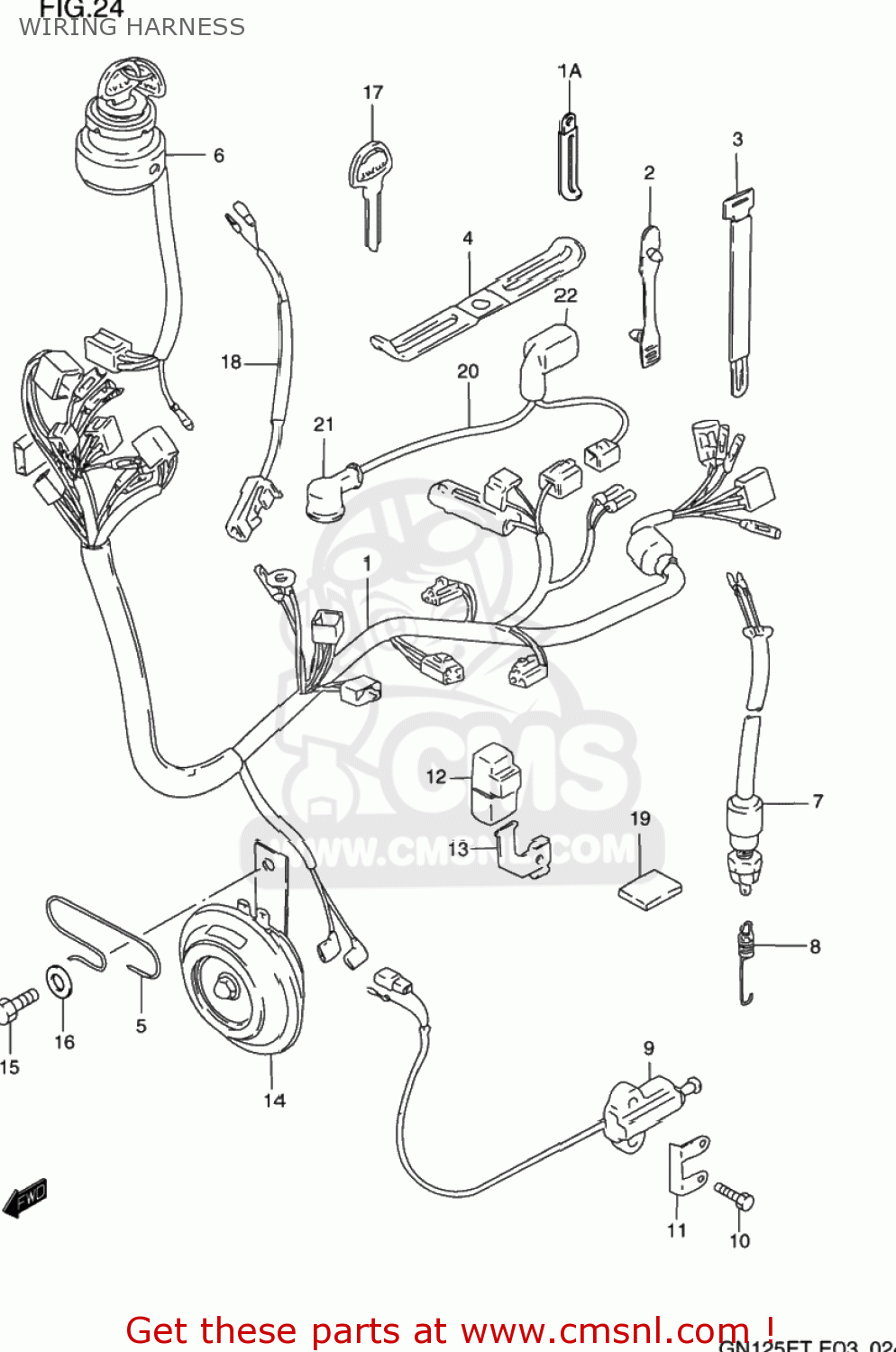

Wiring harness diagram GN125E 1996 (T) USA (E03)
WIRING HARNESS GN125E 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1A
0940406420
ref: 1A
CLAMP
€ 2.50
1-1
3661005480
ref: 1-1
HARNESS,WIRING
€ 0.00
1-2
3661005481
ref: 1-2
HARNESS,WIRING
€ 0.00
1-3
36610053C0
ref: 1-3
HARNESS,WIRING
€ 0.00
2
0940705403
ref: 2
CLAMP,L:88
€ 1.50
3-1
0940714301
ref: 3-1
09407-18301
CLAMP
€ 6.00
3-2
0940714403
ref: 3-2
CLAMP(L:125)
€ 2.50
3-3
0940718301
ref: 3-3
CLAMP
€ 6.00
3-4
0940718403
ref: 3-4
09407-18402
CLAMP L:165
€ 2.50
3-5
0940725301
ref: 3-5
CLAMP(L:250)
€ 4.50
3-6
0940725401
ref: 3-6
CLAMP(L:235)
€ 4.00
4-1
3665105300
ref: 4-1
36651-05301
CLAMP,WIRING HARNESS
€ 5.00
4-2
3665105301
ref: 4-2
CLAMP,STARTER MOTOR LEAD
€ 5.00
5
3661937300
ref: 5
36619-05300
CLAMP,WIRING HARNESS
€ 0.00
6
3711033021
ref: 6
SWITCH ASSY,IGNITION
€ 73.50
7-1
3774048071
ref: 7-1
SWITCH ASSY,STOP LAMP
€ 22.00
7-2
3774045D00
ref: 7-2
37740-31D00
SWITCH ASSY,STOP LAMP
€ 20.50
7-3
3774031D00
ref: 7-3
SWITCH ASSY,STOP LAMP
€ 20.50
8
0944306078
ref: 8
SPRING
€ 3.00
9-1
3784011D00
ref: 9-1
37840-11X50
SWITCH ASSEMBLY,SIDE STAND
€ 76.00
9-2
3784011D10
ref: 9-2
37840-11X50
SWITCH ASSEMBLY,SIDE STAND
€ 76.00
9-3
3784011X50
ref: 9-3
SWITCH ASSY,SIDE STAND
€ 76.00
10-1
0151706204
ref: 10-1
01550-0620A
BOLT 6X20
€ 2.50
10-2
0155006203
ref: 10-2
01550-0620A
BOLT
€ 2.50
11
3784114D00
ref: 11
PROTECTOR,SIDE STAND SWITCH
€ 4.50
12-1
3874024B10
ref: 12-1
38740-24X50
RELAY ASSEMBLY
€ 37.50
12-2
3874024X50
ref: 12-2
RELAY ASSY
€ 37.50
13
3874105300
ref: 13
BRACKET,SIDE STAND RELAY
€ 4.50
14-1
3850038360
ref: 14-1
38500-38361
HORN ASSEMBLY
€ 29.00
14-2
3850038361
ref: 14-2
HORN ASSY
€ 29.00
15-1
0110708165
ref: 15-1
01500-0816B
BOLT
€ 2.00
15-2
0155008163
ref: 15-2
01550-0816A
BOLT
€ 3.00
15-3
0155008123
ref: 15-3
01550-0812A
BOLT
€ 3.50
16
0832211084
ref: 16
08322-0108A
WASHER
€ 1.50
17
3714649300
ref: 17
KEY,BLANK
€ 13.00
18
3685205300
ref: 18
WIRE,CLUTCH SWITCH LEAD
€ 25.00
19
3692010B00
ref: 19
TAPE
€ 3.00
20
33820053A0
ref: 20
WIRE,BATTERY PLUS LEAD
€ 34.00
21
3186110D00
ref: 21
CAP,STARTER RELAY
€ 4.00
22
3362443500
ref: 22
CAP,BATTERY PLUS TERMINAL
€ 3.50
