GN125E 1996 (T) USA (E03)

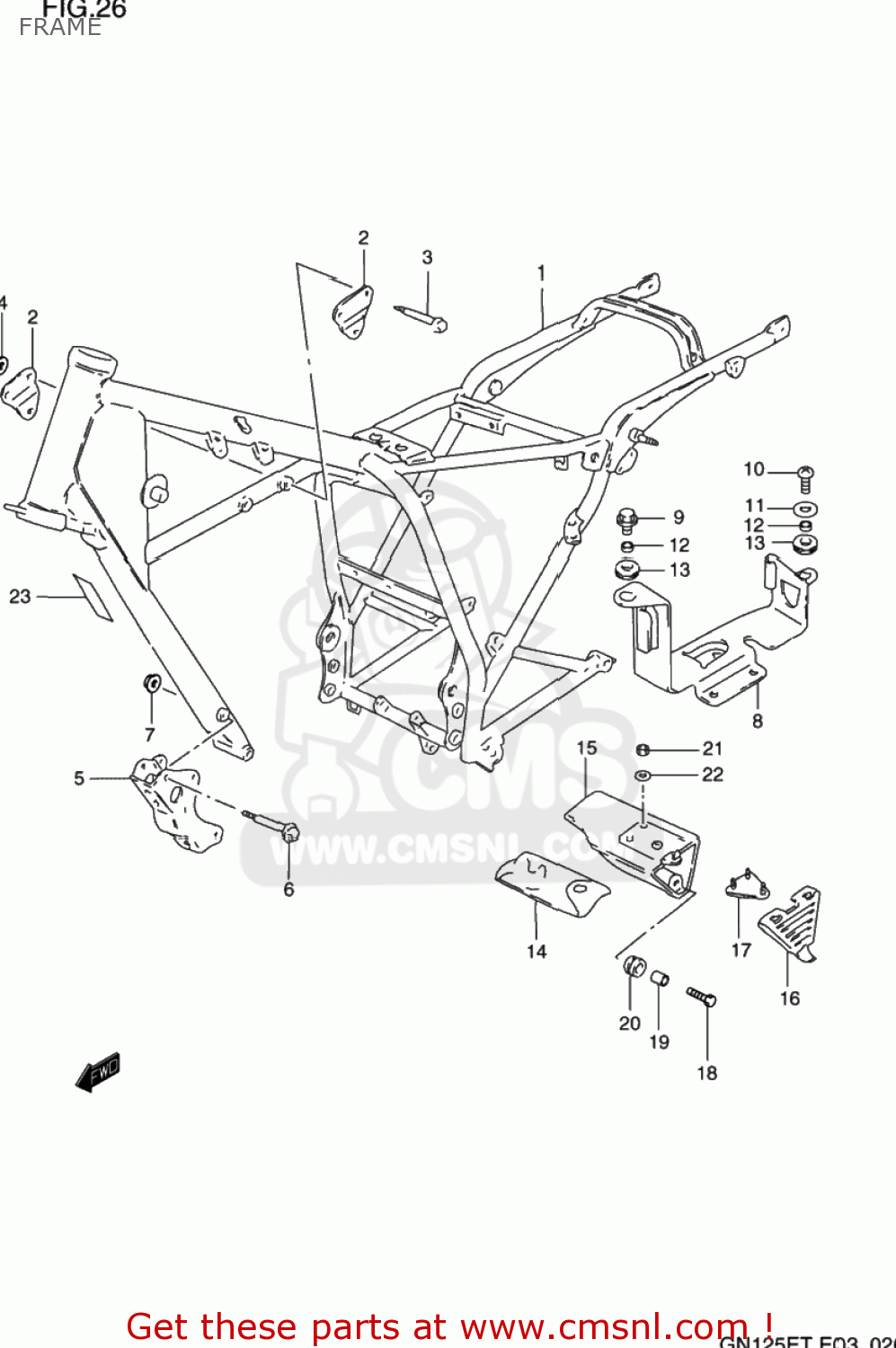

Frame diagram GN125E 1996 (T) USA (E03)
FRAME GN125E 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110005390019
ref: 1-1
41100-05392-019
FRAME
€ 332.00
1-2
4110005391019
ref: 1-2
41100-05392-019
FRAME
€ 332.00
1-3
4110005392019
ref: 1-3
FRAME
€ 332.00
2-1
4199105300
ref: 2-1
PLATE,ENGINE MOUNTING
€ 3.50
2-2
4199005300
ref: 2-2
PLATE,ENGINE MOUNTING,UPPER
€ 18.50
2-3
4199105300
ref: 2-3
PLATE,ENGINE MOUNTING
€ 3.50
3
0910308081
ref: 3
BOLT(8X50)
€ 3.50
4
0831931087
ref: 4
NUT
€ 2.50
5
4199205300
ref: 5
BRACKET,ENGINE MOUNTING LWR
€ 9.00
6-1
0151708658
ref: 6-1
01550-08657
BOLT 8X65
€ 3.00
6-2
0155008657
ref: 6-2
BOLT
€ 3.00
7
0831931087
ref: 7
NUT
€ 2.50
8
4154038301
ref: 8
HOLDER,BATTERY
€ 18.50
9-1
0911606008
ref: 9-1
09116-06168
BOLT 6X16
€ 2.50
9-2
0911606168
ref: 9-2
BOLT(6X16)
€ 2.50
10
0912906003
ref: 10
SCREW(6X21)
€ 2.00
11
0916006027
ref: 11
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
12
0918006038
ref: 12
SPACER(6.1X9X7.5)
€ 2.00
13
0932008021
ref: 13
CUSHION
€ 4.00
14-1
0980000245
ref: 14-1
09800-21021
TOOL SET
€ 33.00
14-2
0980021020
ref: 14-2
TOOL ASSY
€ 33.50
15
4743105300
ref: 15
BOX,TOOL
€ 15.00
16
4743205300
ref: 16
CAP,TOOL BOX
€ 2.50
17
4744005301
ref: 17
PLATE,TOOL HOLDER
€ 3.00
18-1
0911606008
ref: 18-1
09116-06168
BOLT 6X16
€ 2.50
18-2
0911606168
ref: 18-2
BOLT(6X16)
€ 2.50
19
0918006038
ref: 19
SPACER(6.1X9X7.5)
€ 2.00
20-1
0932008007
ref: 20-1
09320-08021
CUSHION
€ 4.00
20-2
0932008021
ref: 20-2
CUSHION
€ 4.00
21-1
0831000067
ref: 21-1
NUT
€ 2.50
21-2
0831610063
ref: 21-2
08316-1006B
NUT
€ 2.50
22
0832201067
ref: 22
WASHER
€ 2.00
23-1
1879305310
ref: 23-1
LABEL
€ 0.00
23-2
1879405310
ref: 23-2
LABEL
€ 0.00
