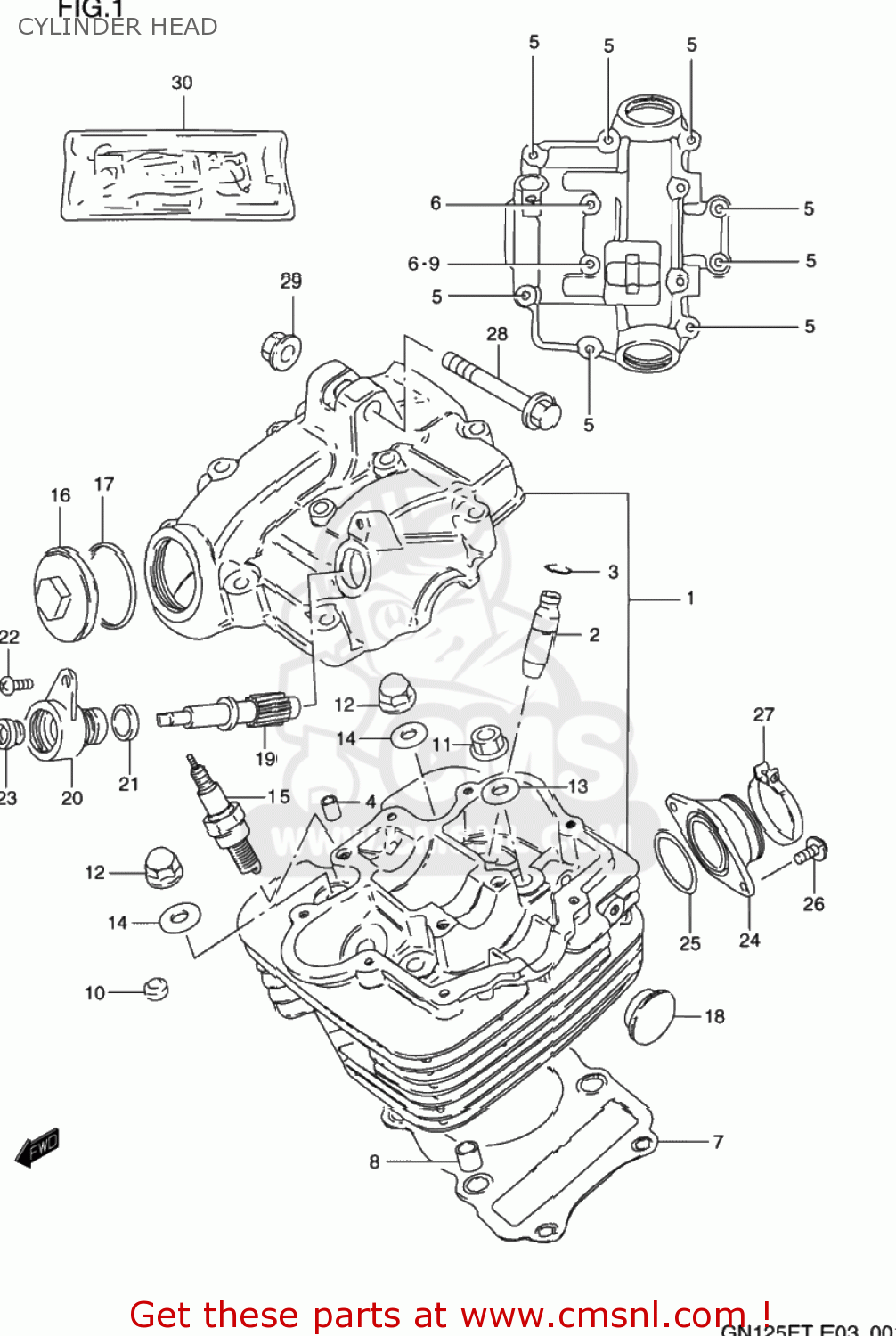

CYLINDER HEAD

ref

part #

description

quantity

1

1110005263
ref: 1

HEAD ASSY,CYLINDER

€ 727.50

2

1111505270
ref: 2

GUIDE,VALVE

€ 18.50

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0920608001
ref: 4

PIN(6.2X8X11)

€ 2.00

5

0155006357
ref: 5

BOLT

€ 2.50

6

0155006607
ref: 6

BOLT

€ 2.50

7

1114105201
ref: 7
11141-05202

GASKET,CYLINDER HEAD (NAS)

€ 7.50

8

0421111169
ref: 8

PIN

€ 2.00

9

0916806023
ref: 9

GASKET(5.8X13X1.2) (NAS)

€ 2.00

10

1115145000
ref: 10

PAD,CYLINDER HEAD

€ 3.00

11-1

0831610087
ref: 11-1

NUT

€ 2.50

11-2

0831610083
ref: 11-2
08316-1008B

NUT

€ 3.00

12

0915908074
ref: 12

NUT

€ 7.00

13

0916008039
ref: 13

WASHER(8.5X19X2.3)

€ 2.00

14-1

0916808012
ref: 14-1
09168-08013

GASKET (NAS)

€ 4.50

14-2

0916808021
ref: 14-2

GASKET(8.5X17X2.3) (NAS)

€ 3.00

15-1

0948200144
ref: 15-1

SPARK PLUG D8EA

€ 3.50

15-2

0948200145
ref: 15-2
09482-00223

SPARK PLUG X24ES-U

€ 3.50

16

1117537111
ref: 16

CAP,INSPECTION HOLE

€ 14.00

17

0928030001
ref: 17

O RING(D:3,ID:29.5)

€ 2.00

18

0924122002
ref: 18

PLUG(OD:22.5)

€ 5.50

19

2643105201
ref: 19
26431-05210

GEAR,TACHOMETER DRIVEN

€ 21.50

20

2644149000
ref: 20

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

21

2645145000A
ref: 21

SEAL,TACHOMETER DRIVEN

€ 4.50

22

0912805101
ref: 22

SCREW(5X12)

€ 1.50

23

0928905002
ref: 23

SEAL,OIL(5X12X8)

€ 11.00

24

1311005300
ref: 24
13101-05300

PIPE,INTAKE

€ 33.50

25

0928032006
ref: 25

O RING(D:2.4,ID:31.7)

€ 2.50

26-1

0211236165
ref: 26-1
02112-3616A

SCREW

€ 2.50

26-2

0211236163
ref: 26-2
02112-3616A

SCREW

€ 2.50

27

0940244208
ref: 27

CLAMP

€ 5.50

28

0910308081
ref: 28

BOLT(8X50)

€ 3.50

29

0831931087
ref: 29

NUT

€ 2.50

30-1

1140105860
ref: 30-1
11401-05864

GASKET SET (NAS)

€ 79.50

30-2

1140105861
ref: 30-2
11401-05864

GASKET SET (NAS)

€ 79.50

30-3

1140105862
ref: 30-3
11401-05864

GASKET SET (NAS)

€ 79.50

all assemblies
