CYLINDER
GN125E 1996 (T) USA (E03)

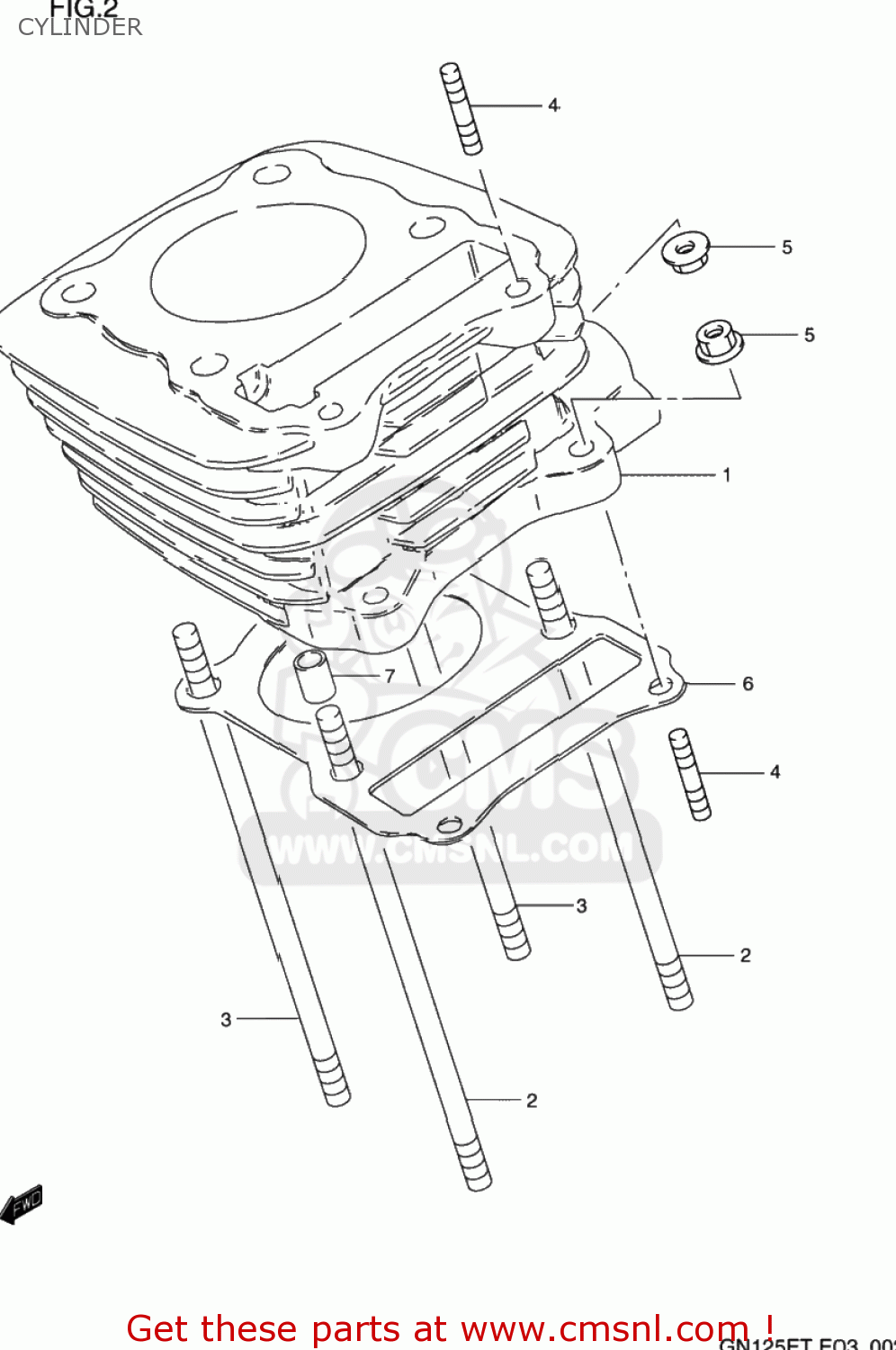

Cylinder diagram GN125E 1996 (T) USA (E03)
CYLINDER GN125E 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121005201
ref: 1-1
11210-05203-0F0
CYLINDER
€ 255.50
1-2
1121005202
ref: 1-2
11210-05203-0F0
CYLINDER
€ 255.50
2
0910808062
ref: 2
BOLT,STUD
€ 4.50
3
0910808089
ref: 3
BOLT,STUD
€ 6.00
4
0142106257
ref: 4
BOLT,STUD
€ 2.50
5-1
0915906017
ref: 5-1
08319-31067
NUT
€ 2.50
5-2
0831610067
ref: 5-2
NUT
€ 2.00
6-1
1124105200
ref: 6-1
11241-05311
GASKET,CYLINDER (MCA)
€ 4.50
6-2
1124105310
ref: 6-2
11241-05311
GASKET,CYLINDER (NAS)
€ 4.50
6-3
1124105311
ref: 6-3
GASKET,CYLINDER (NAS)
€ 4.50
7
0421111149
ref: 7
PIN
€ 2.00
