GEAR SHIFTING
GN125E 1996 (T) USA (E03)

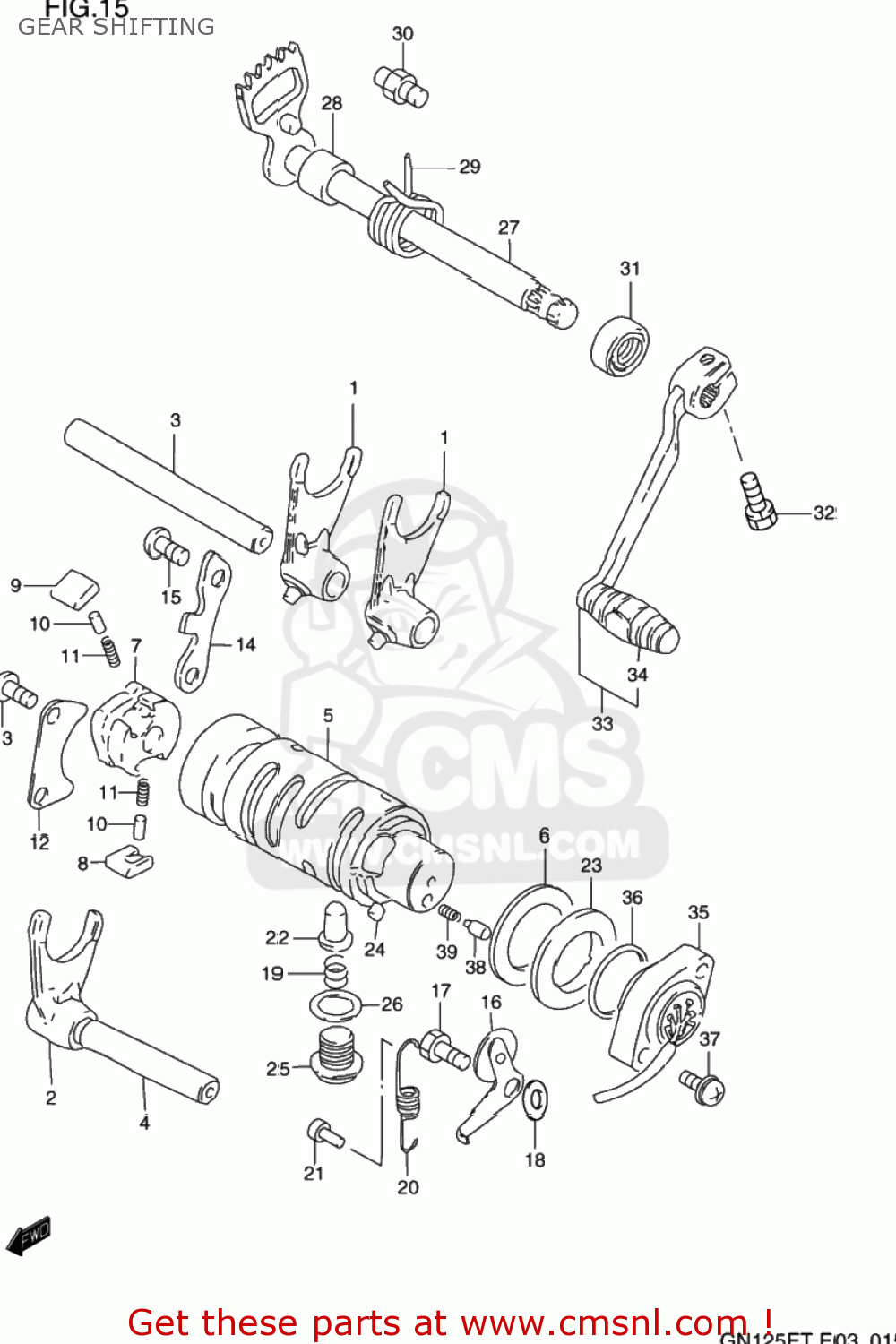

Gear shifting diagram GN125E 1996 (T) USA (E03)
GEAR SHIFTING GN125E 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2522108300
ref: 1
FORK,GEAR SHIFT NO.2
€ 54.50
2
2523105201
ref: 2
FORK,GEAR SHIFT NO.3
€ 54.50
3-1
2541116701
ref: 3-1
SHAFT,GEAR SHIFT FORK(L:109)
€ 11.50
3-2
2541105200
ref: 3-2
25411-16701
SHAFT,GEAR SHIFT FORK
€ 11.50
3-3
2541105201
ref: 3-3
SHAFT,GEAR SHIFT FORK
€ 11.50
4-1
2542135401
ref: 4-1
25421-35410
SHAFT,GEAR SHIFT FORK
€ 19.00
4-2
2542135402
ref: 4-2
25421-35410
SHAFT,GEAR SHIFT FORK
€ 19.00
4-3
2542135403
ref: 4-3
25421-35410
SHAFT,GEAR SHIFT FORK
€ 19.00
5
2531005300
ref: 5
25310-05330
CAM,GEAR SHIFT
€ 75.00
6
0821125401
ref: 6
09181-25251
WASHER,THRUST
€ 2.50
7
2532231301
ref: 7
25322-31310
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533130001
ref: 12
LIFTER,GEAR SHIFT POLE
€ 3.50
13
0212206123
ref: 13
02122-0612A
SCREW
€ 3.00
14
2534105200
ref: 14
GUIDE,GEAR SHIFT CAM
€ 6.50
15
0212206123
ref: 15
02122-0612A
SCREW
€ 3.00
16-1
2535005200
ref: 16-1
STOPPER,GEAR SHIFTING
€ 8.00
16-2
2535044A00
ref: 16-2
STOPPER,GEAR SHIFT CAM
€ 8.00
17-1
0911106019
ref: 17-1
09111-06054
BOLT
€ 1.50
17-2
0911106054
ref: 17-2
BOLT(6X14.6)
€ 1.50
18
0821106141
ref: 18
WASHER
€ 2.50
19
0944011016
ref: 19
SPRING
€ 7.50
20-1
0944308012
ref: 20-1
SPRING
€ 3.00
20-2
0944308044
ref: 20-2
SPRING
€ 1.50
21
0922304001
ref: 21
RIVET
€ 1.50
22
2535130010
ref: 22
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
23
2538145400
ref: 23
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
24-1
0621104063
ref: 24-1
04221-04069
PIN 4X6
€ 2.00
24-2
0422104069
ref: 24-2
PIN
€ 2.00
25-1
0924714012
ref: 25-1
09247-14026
PLUG (14X12)
€ 3.50
25-2
0924714026
ref: 25-2
PLUG(14X12)
€ 3.50
26-1
0916814004
ref: 26-1
GASKET(14X19.2X2) (NAS)
€ 2.50
26-2
0916814002
ref: 26-2
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
27
2551005201
ref: 27
SHAFT,GEAR SHIFT
€ 42.50
28
0918012068
ref: 28
SPACER(12X20X15.3)
€ 3.00
29
0944426013
ref: 29
SPRING
€ 3.50
30
2567101000
ref: 30
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
31
0928512002
ref: 31
09285-12006
OIL SEAL
€ 7.00
32-1
0910006091
ref: 32-1
01500-06207
BOLT
€ 2.00
32-2
0110706207
ref: 32-2
01500-06207
BOLT
€ 2.00
32-3
0150006203
ref: 32-3
01500-0620A
BOLT
€ 2.00
33
2560005320
ref: 33
LEVER ASSY,GEAR SHIFT
€ 33.50
34
2565216500
ref: 34
RUBBER,GEAR SHIFT PEDAL
€ 4.00
35
3772044700
ref: 35
BASE ASSY,GEAR SHIFT TERMINAL
€ 83.50
36
0928026003
ref: 36
09280-26005
O-RING (D:2.4 ID:26.2)
€ 2.50
37
0211275203
ref: 37
02112-7520A
SCREW
€ 3.00
38
0920905011
ref: 38
PIN(5X15.5)
€ 2.00
39
0944004010
ref: 39
SPRING
€ 1.50
