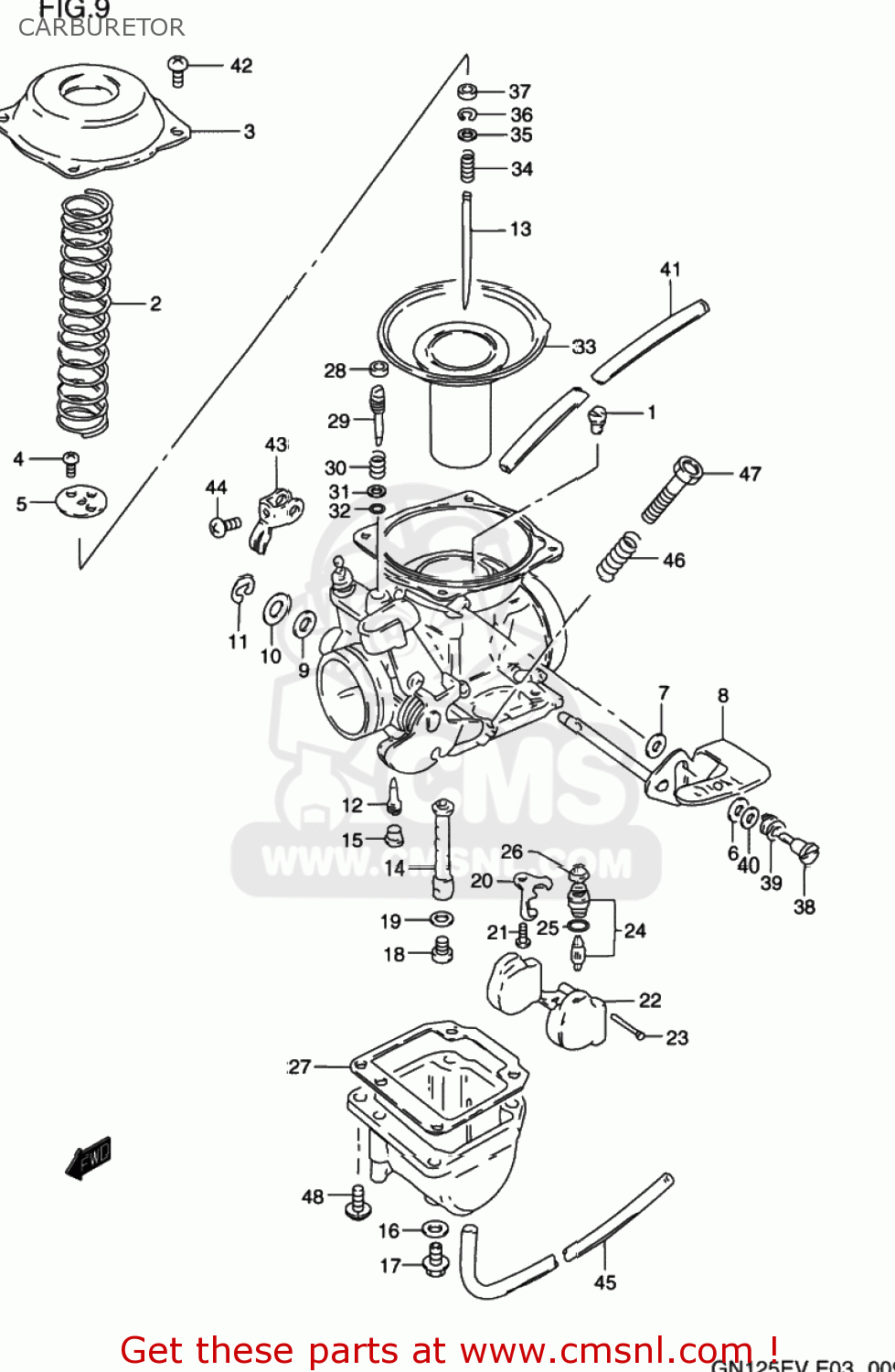

CARBURETOR

ref

part #

description

quantity

1320005302
ref:
13200-05303

CARBURETOR ASSEMBLY

€ 144.50

1320005402
ref:

CARBURETOR ASSEMBLY

€ 145.50

1

0949136005
ref: 1

JET,MAIN(180)

€ 9.50

2

1350333200
ref: 2

SPRING

€ 8.50

3

1350233210
ref: 3

COVER

€ 19.50

4

0211233083
ref: 4
02112-3308A

SCREW

€ 2.00

5

1338937400
ref: 5

PLATE

€ 5.50

6

1343105300
ref: 6

PACKING (NAS)

€ 5.50

7

0916004015
ref: 7

WASHER(4.1X12X0.8)

€ 2.00

8

1341005300
ref: 8

SHAFT ASSY,STARTER

€ 19.00

9

1365151010
ref: 9

SEAL

€ 4.00

10

1355747070
ref: 10

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

11

1361744080
ref: 11

E RING

€ 3.50

12

0949235008
ref: 12

JET,PILOT(35)

€ 7.50

13-1

1338305300
ref: 13-1

NEEDLE,JET

€ 0.00

13-2

1338305400
ref: 13-2

NEEDLE,JET

€ 0.00

14-1

0949400370
ref: 14-1

JET,NEEDLE(P-2)

€ 21.00

14-2

0949400740
ref: 14-2

JET,NEEDLE (O-8)

€ 0.00

15

1335744080
ref: 15

PLUG,NEEDLE JET

€ 4.50

16

1324644080
ref: 16

GASKET (NAS)

€ 3.50

17

1324744080
ref: 17

PLUG,DRAIN

€ 9.50

18-1

0949120012
ref: 18-1

JET,MAIN(102.5)

€ 8.50

18-2

0949197003
ref: 18-2

JET,MAIN(97.5)

€ 8.50

19

1333244080
ref: 19
13382-03110

WASHER,NEEDLE NOZZLE

€ 2.50

20

1337339110
ref: 20

PLATE

€ 6.50

21

0211204063
ref: 21
02112-0406B

SCREW 4X6

€ 2.00

22

1325005300
ref: 22

FLOAT

€ 30.00

23

1325492311
ref: 23

PIN,FLOAT

€ 2.00

24

1337044500
ref: 24

VALVE ASSY,NEEDLE

€ 40.50

25

1337444080
ref: 25
13374-35C00

O-RING,NEEDLE VALVE

€ 6.00

26

1337684110
ref: 26
13376-19F00

FILTER

€ 6.50

27

1325105400
ref: 27
13251-20E20

GASKET,FLOAT CHAMBER (NAS)

€ 12.00

28

1328105A00
ref: 28

PLUG

€ 3.50

29

1327945400
ref: 29

SCREW,PILOT

€ 8.00

30

1326847070
ref: 30

SPRING

€ 5.00

31

1329129900
ref: 31

WASHER

€ 2.00

32

1329529900
ref: 32

O RING,PILOT AIR SCREW

€ 4.00

33

13500053D0
ref: 33

DIAPHRAGM ASSY

€ 203.50

34-1

1338344030
ref: 34-1

NEEDLE JET

€ 4.50

34-2

1338832400
ref: 34-2

SPRING

€ 0.00

35

1338244030
ref: 35

WASHER

€ 3.50

36

1339410010
ref: 36

CLIP

€ 4.50

37

1338747010
ref: 37

RING

€ 7.50

38

1343833110
ref: 38

SCREW

€ 5.50

39

1342643010
ref: 39

SPRING

€ 4.50

40

1361543010
ref: 40

WASHER,STARTER SHAFT

€ 2.50

41

0935250823600
ref: 41
44420-44AR0

HOSE(5X8.2X600)

€ 13.00

42

0211205083
ref: 42
02112-0508A

SCREW

€ 2.00

43

1342205300
ref: 43

LEVER

€ 0.00

44

1360531210
ref: 44

SCREW

€ 3.00

45-1

0935135653600
ref: 45-1

HOSE(3.5X6.5X600)

€ 5.50

45-2

0935535755600
ref: 45-2

HOSE(3.5X7.5X600)

€ 10.00

46

1326837420
ref: 46

SPRING,THROTTLE SCREW

€ 3.50

47

1326737100
ref: 47
13267-25D00

SCREW,THROTTLE STOP

€ 9.00

48

1360104148
ref: 48

SCREW

€ 2.50
