SEAT
GN125E 1997 (V) USA (E03)

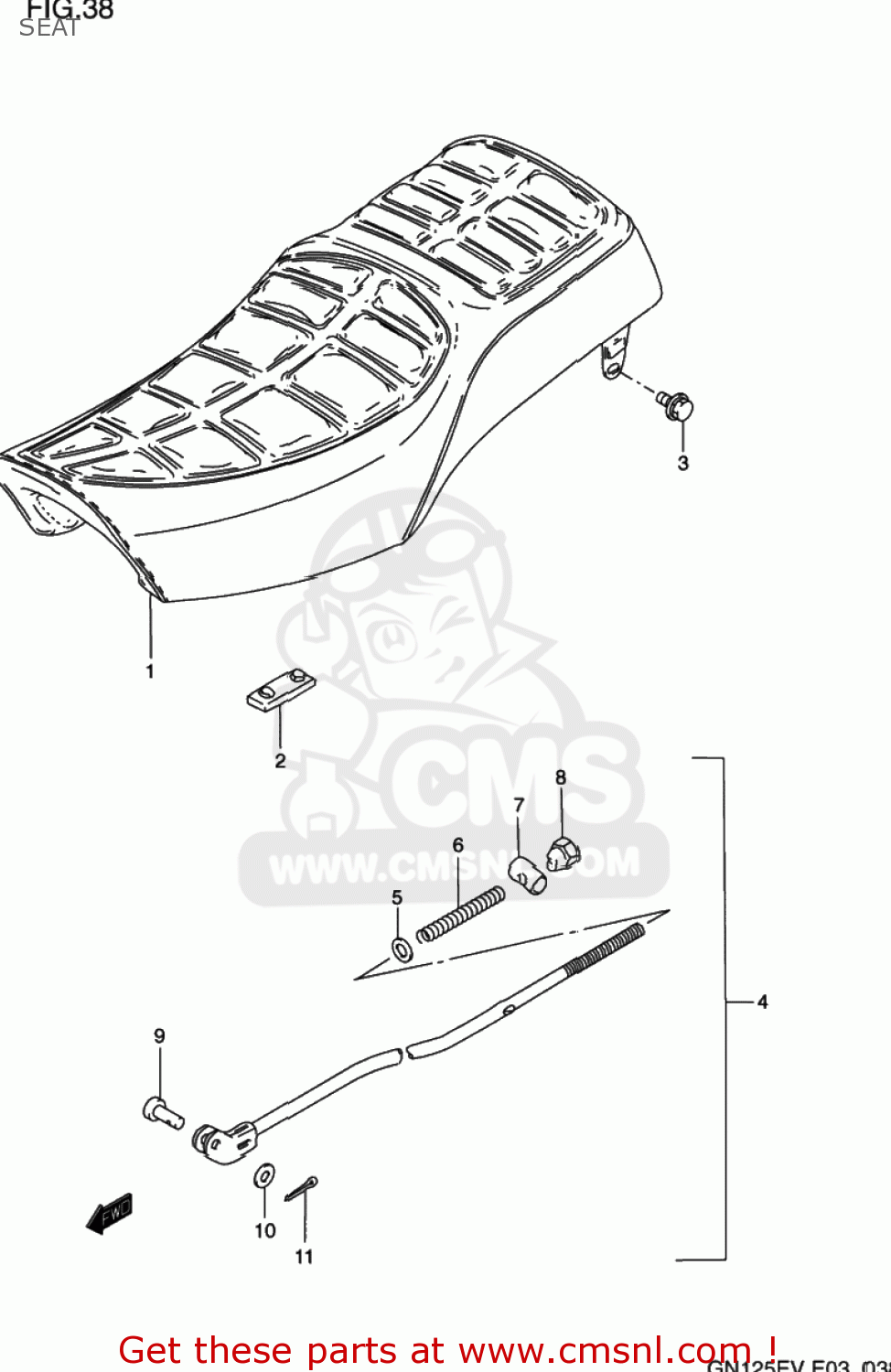

Seat diagram GN125E 1997 (V) USA (E03)
SEAT GN125E 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
451000532148H
ref: 1
SEAT ASSY
€ 287.00
2
0932108009
ref: 2
CUSHION
€ 4.00
3
0155008163
ref: 3
01550-0816A
BOLT
€ 3.00
4
4330026501
ref: 4
ROD ASSY,RR BRAKE
€ 18.50
5
0832201063
ref: 5
08322-0106B
WASHER
€ 2.00
6
0944009004
ref: 6
SPRING
€ 2.00
7
0920911002
ref: 7
PIN(11X18)
€ 2.00
8
0915006014
ref: 8
09150-06010
NUT
€ 3.50
9
0920006013
ref: 9
PIN(L:13.5)
€ 2.00
10
0832201063
ref: 10
08322-0106B
WASHER
€ 2.00
11
0411120208
ref: 11
04111-2020A
PIN 20X20
€ 1.50
