FRONT MASTER CYLINDER

GN125E 1997 (V) USA (E03)

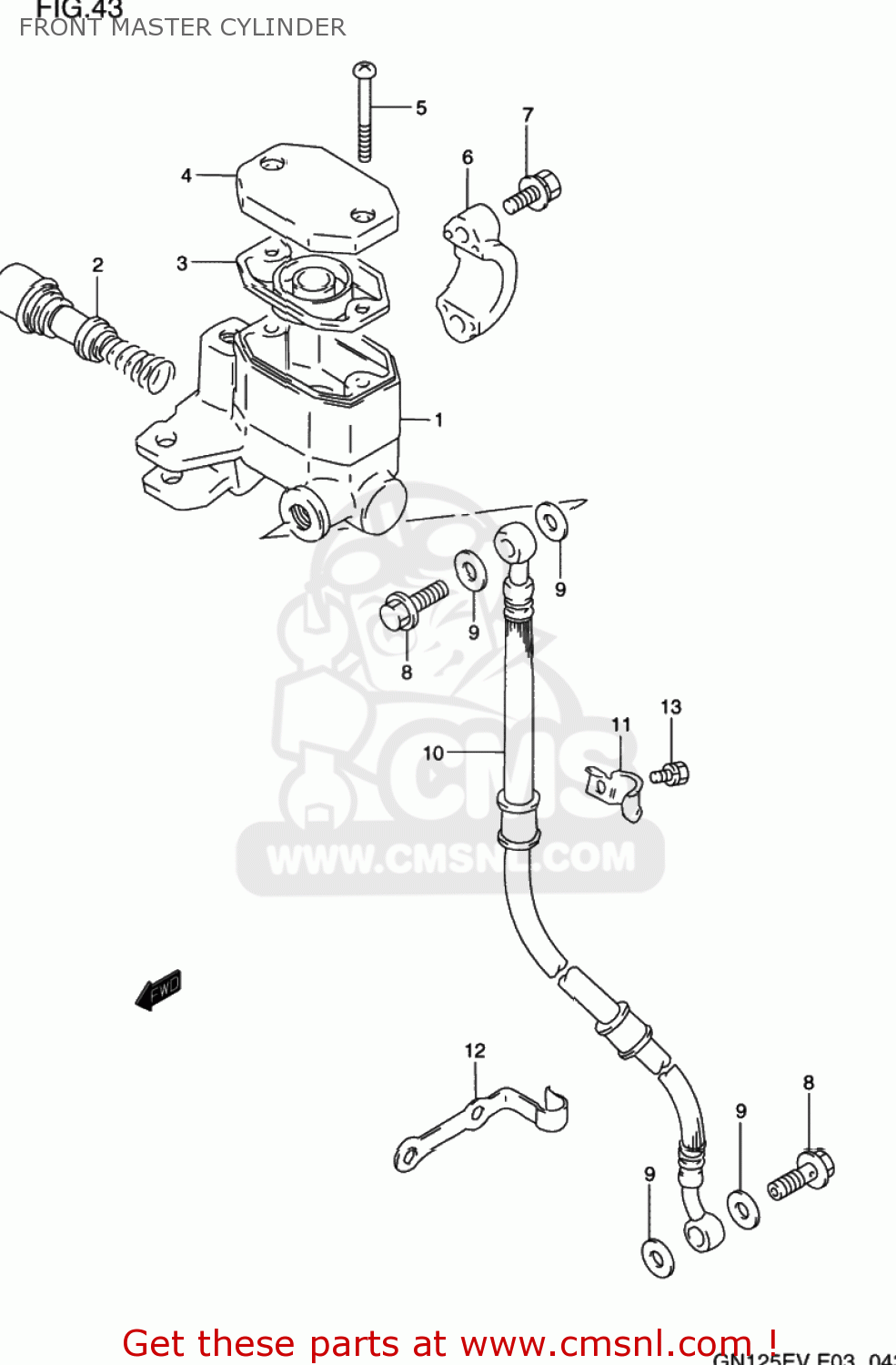

Front master cylinder diagram GN125E 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

5960005360
ref: 1

CYLINDER ASSY,FR MASTER

€ 263.00

5960004810
ref: 2

PISTON/CUP SET

€ 37.50

5966736500
ref: 3

DIAPHRAGM

€ 8.00

5966936510
ref: 4

CAP

€ 9.00

5969136500
ref: 5

SCREW

€ 1.50

5967105300
ref: 6

HOLDER

€ 13.00

5967519C00
ref: 7

BOLT(6X25)

€ 3.00

0936010039
ref: 8
09360-10061

BOLT UNION

€ 6.50

0916110009
ref: 9

WASHER(10X15X1.5)

€ 2.00

5948005350
ref: 10

HOSE,FR BRAKE

€ 86.50

5924639100
ref: 11

CLAMP,BRAKE HOSE

€ 5.00

5926811300
ref: 12

CLAMP,BRAKE HOSE

€ 5.50

0157006123
ref: 13
01570-0612A

BOLT

€ 1.50
