CRANKCASE

GN125E 1997 (V) USA (E03)

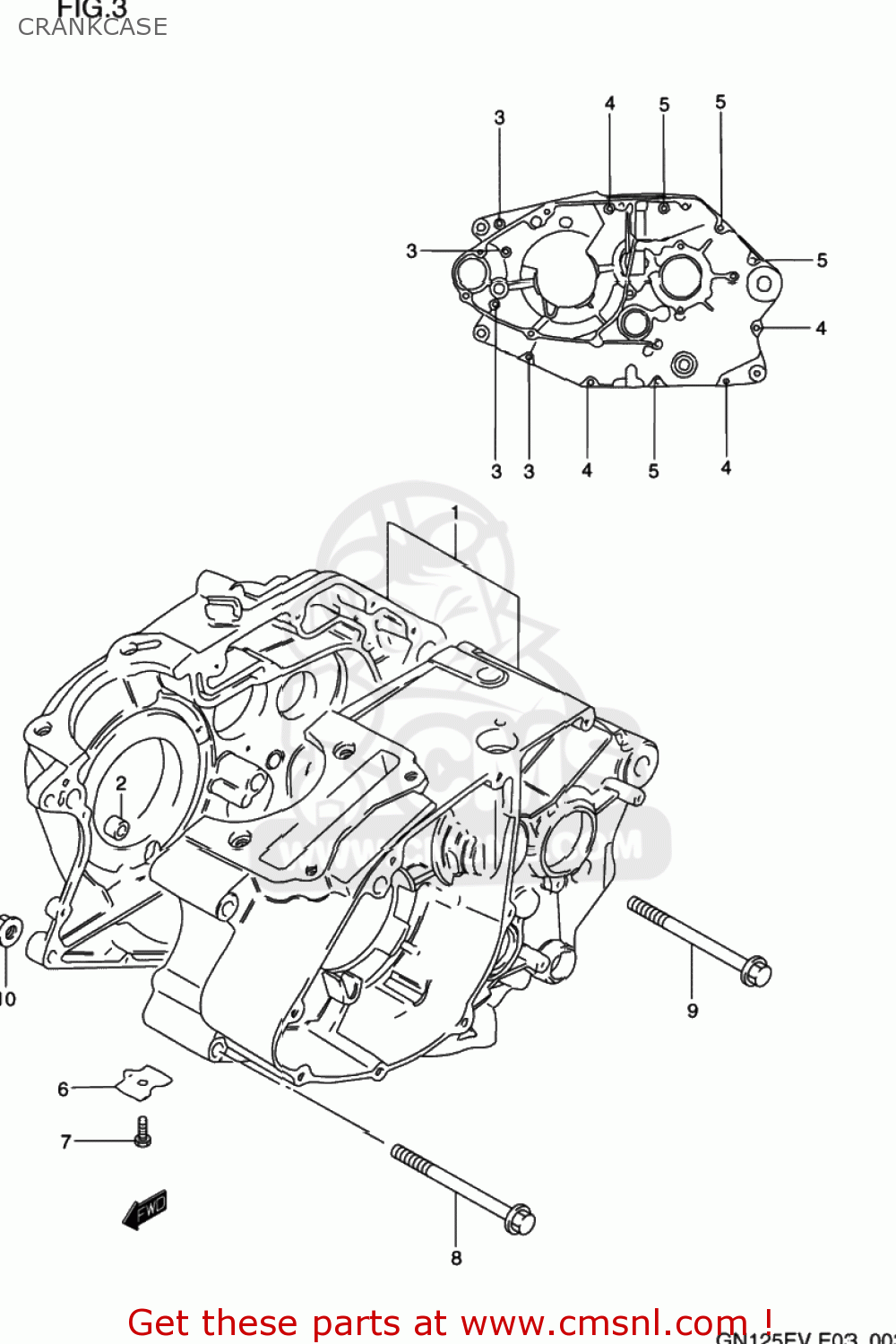

Crankcase diagram GN125E 1997 (V) USA (E03)

CRANKCASE GN125E 1997 (V) USA (E03)

CRANKCASE GN125E 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1130005303
ref: 1
11300-05304

CRANKCASE ASSEMBLY

€ 545.50

2

0421113189
ref: 2

PIN

€ 2.50

3

0154706557
ref: 3

BOLT

€ 2.50

4

0154706607
ref: 4

BOLT

€ 2.50

5

0154706757
ref: 5

BOLT

€ 2.50

6

1131905200
ref: 6

PLATE,OIL GALLERY PLUG

€ 2.50

7

0150006103
ref: 7
01500-0610B

BOLT

€ 2.00

8

0910308016
ref: 8

BOLT(8X80)

€ 8.00

9

0910308010
ref: 9

BOLT(8X88)

€ 55.50

10

0831931087
ref: 10

NUT

€ 2.50
