HEADLAMP

GN125E 1997 (V) USA (E03)

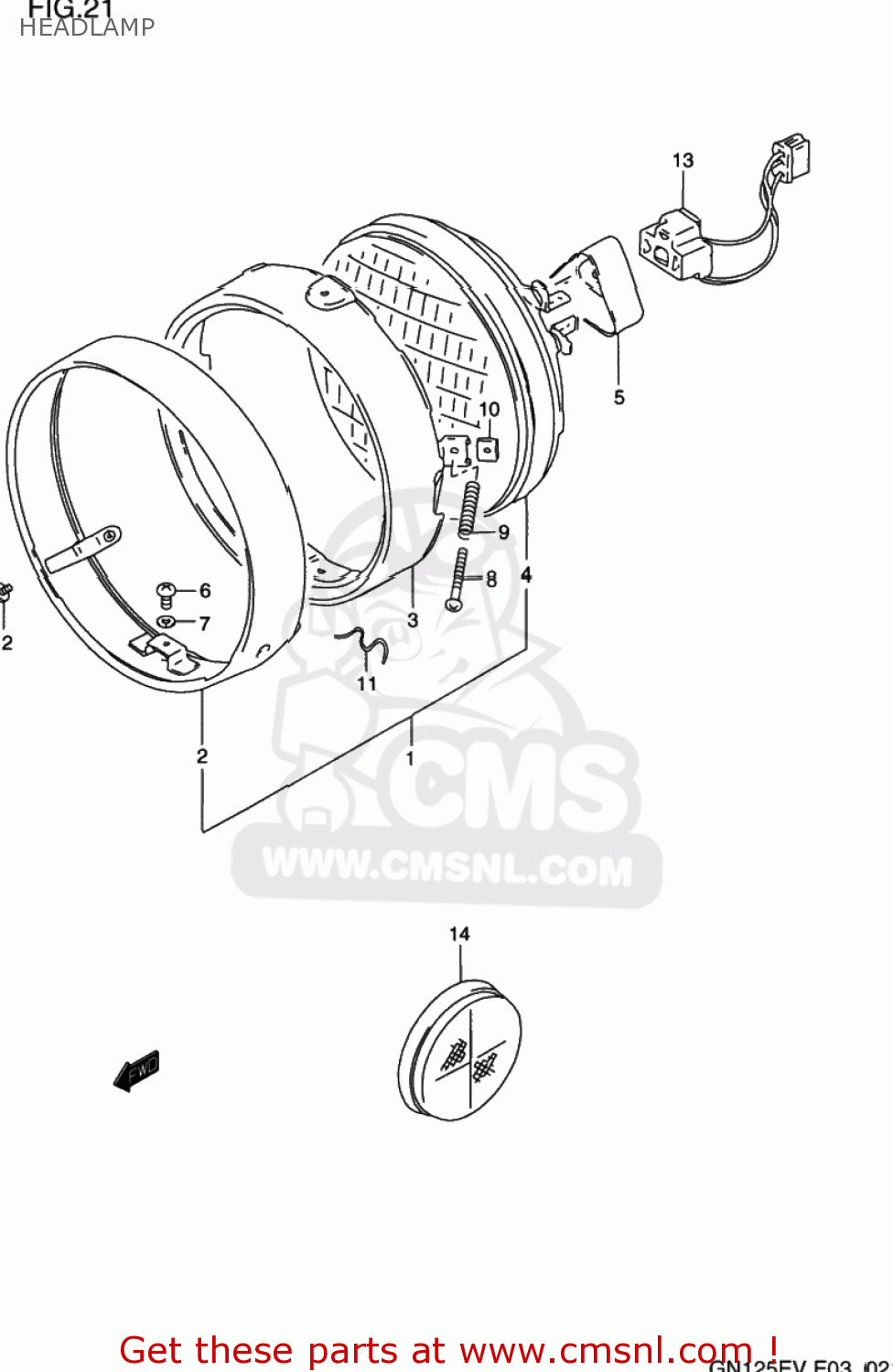

Headlamp diagram GN125E 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

3510044250
ref: 1
35100-44251

LAMP ASSEMBLY,HEAD

€ 124.00

3511144250
ref: 2

RIM

€ 34.50

3512729610
ref: 3

RETAINER

€ 15.50

3512144250
ref: 4
35100-44251

LAMP UNIT

€ 124.00

3517329610
ref: 5

COVER

€ 3.00

3513629610
ref: 6

SCREW

€ 3.00

0832101057
ref: 7
08321-0105A

WASHER,LOCK

€ 2.00

3515131610
ref: 8

SCREW

€ 4.00

3515433630
ref: 9

SPRING

€ 2.50

3515215611
ref: 10

NUT

€ 3.50

3512829611
ref: 11

SPRING,HEAD LAMP UNIT

€ 3.50

0212205127
ref: 12

SCREW

€ 2.50

3685330500
ref: 13

LEAD WIRE,HEADLAMP

€ 13.00

3595049080
ref: 14

REFLEX REFLECTOR,RR

€ 17.50
