REAR COMBINATION

GN125E 1997 (V) USA (E03)

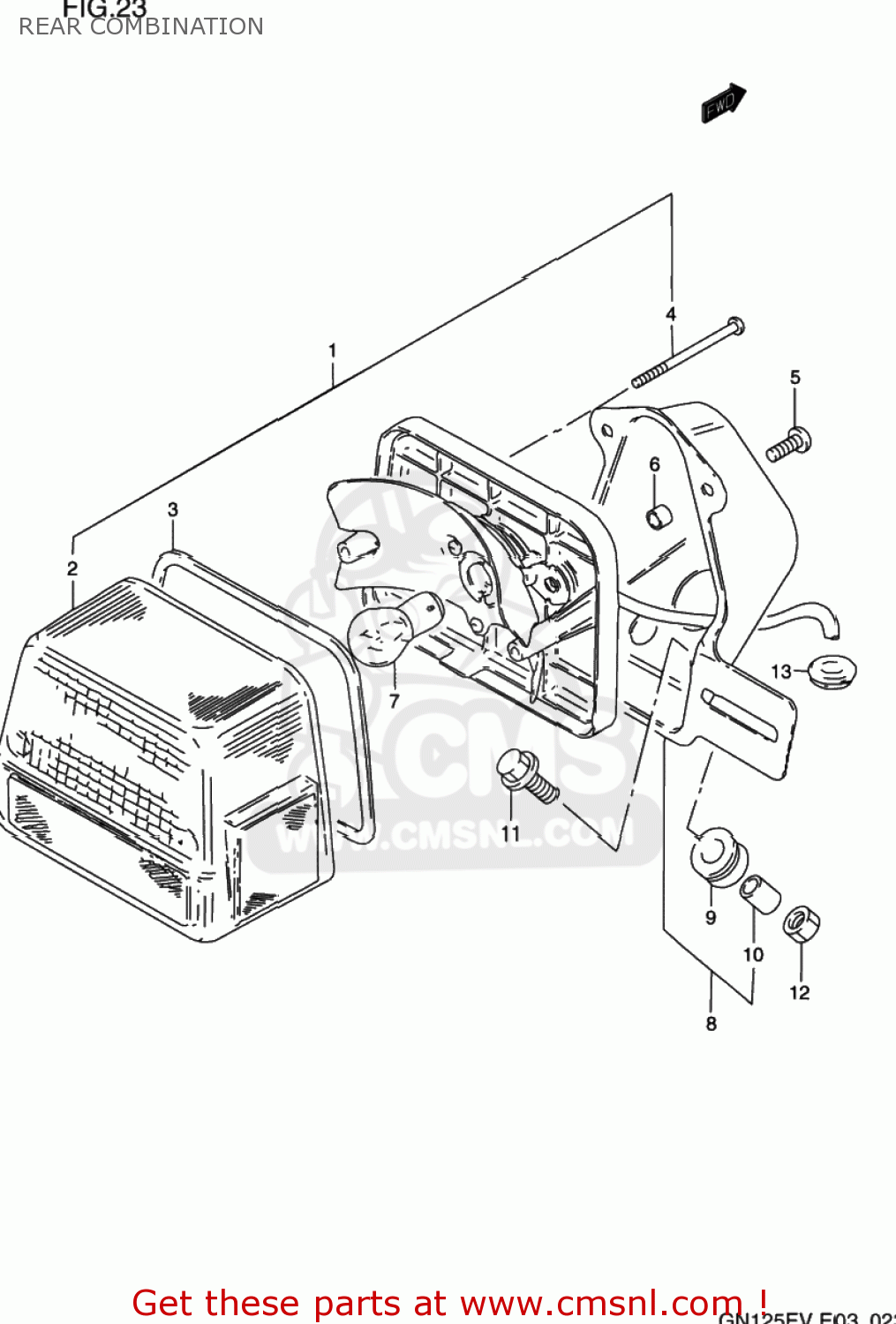

Rear combination diagram GN125E 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

LAMP UNIT,RR COMBNATION

€ 88.00

3571249130
ref: 2

LENS

€ 49.00

3571349130
ref: 3

GASKET (NAS)

€ 5.50

3572344130
ref: 4

SCREW

€ 1.50

0211205167
ref: 5

SCREW

€ 2.50

3576639210
ref: 6

SPACER

€ 0.00

0947112035
ref: 7

BULB(12V23W)

€ 5.50

3573049130
ref: 8

BRACKET UNIT,TAIL LAMP

€ 0.00

3576522210
ref: 9

CUSHION

€ 4.00

3576637120
ref: 10

SPACER

€ 2.50

0911606093
ref: 11

BOLT(6X25)

€ 2.00

0831000063
ref: 12
08310-0006A

NUT 6MM

€ 2.00

0930809004
ref: 13

GROMMET

€ 0.00
