AIR CLEANER
GN125U 1999 (X) GERMANY (E22)

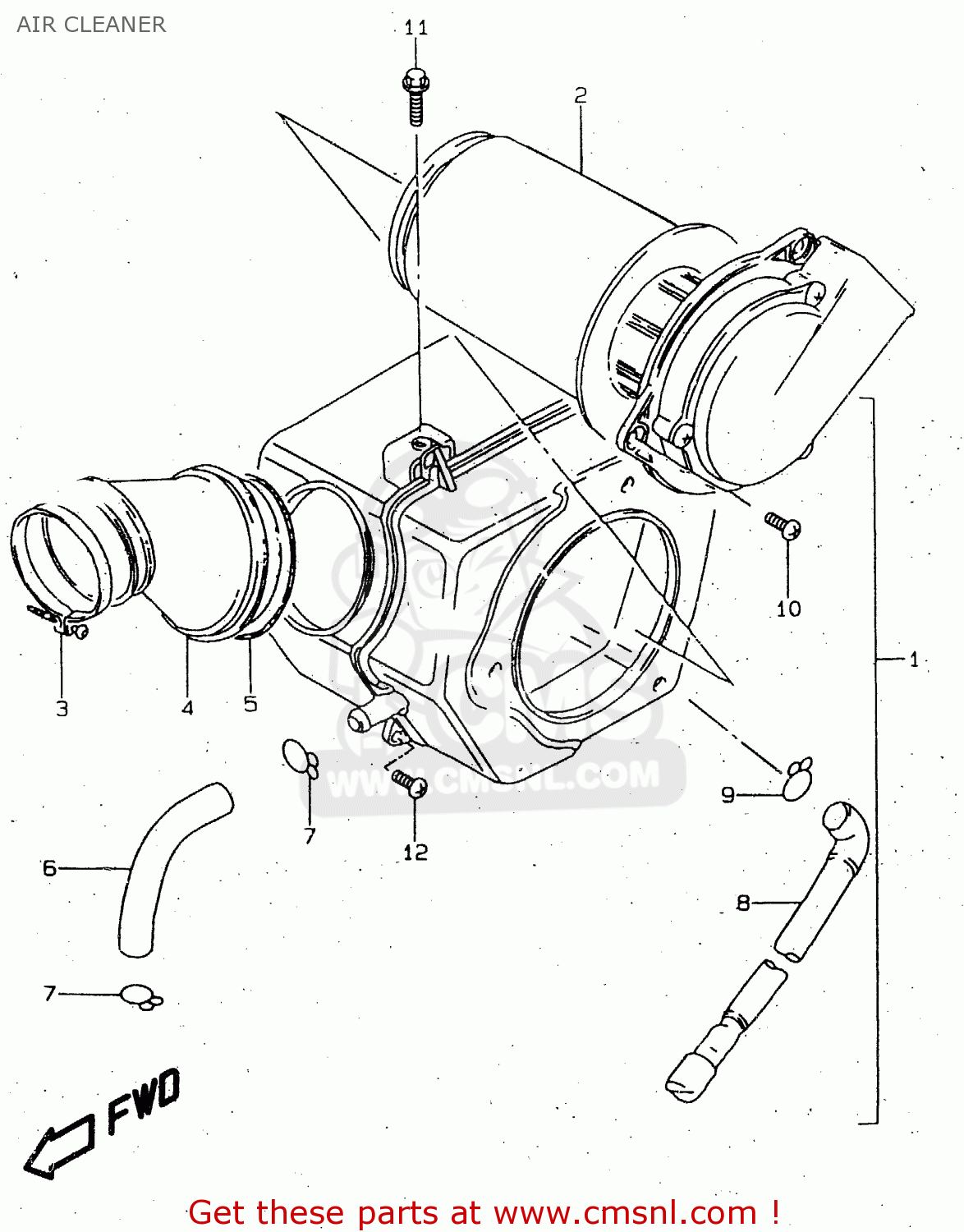

Air cleaner diagram GN125U 1999 (X) GERMANY (E22)
AIR CLEANER GN125U 1999 (X) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1370005302
ref: 1
CLEANER ASSY,AIR
€ 119.00
1
1370005380
ref: 1
E18,E22
CLEANER ASSY,AIR
€ 126.00
2
1378038301
ref: 2
FILTER
€ 21.50
3
0940256208
ref: 3
CLAMP
€ 3.50
4
1388105300
ref: 4
TUBE,OUTLET
€ 21.00
5
1382638300
ref: 5
CLAMP,AIR CLEANER SIDE
€ 3.00
6
1385305300
ref: 6
TUBE,BREATHER
€ 13.00
6
1385005380
ref: 6
E18,E22
TUBE,BREATHER
€ 13.00
7
0940114401
ref: 7
CLIP
€ 2.00
8
1387021308
ref: 8
TUBE,DRAIN
€ 16.50
9
0940113409
ref: 9
CLIP
€ 2.50
10
0214205127
ref: 10
SCREW
€ 1.50
11
0158006163
ref: 11
BOLT
€ 2.50
12
0214206163
ref: 12
MODEL V
SCREW
€ 2.50
12
0158006163
ref: 12
MODEL W/X
BOLT
€ 2.50
