HANDLE SWITCH

GN125U 1999 (X) GERMANY (E22)

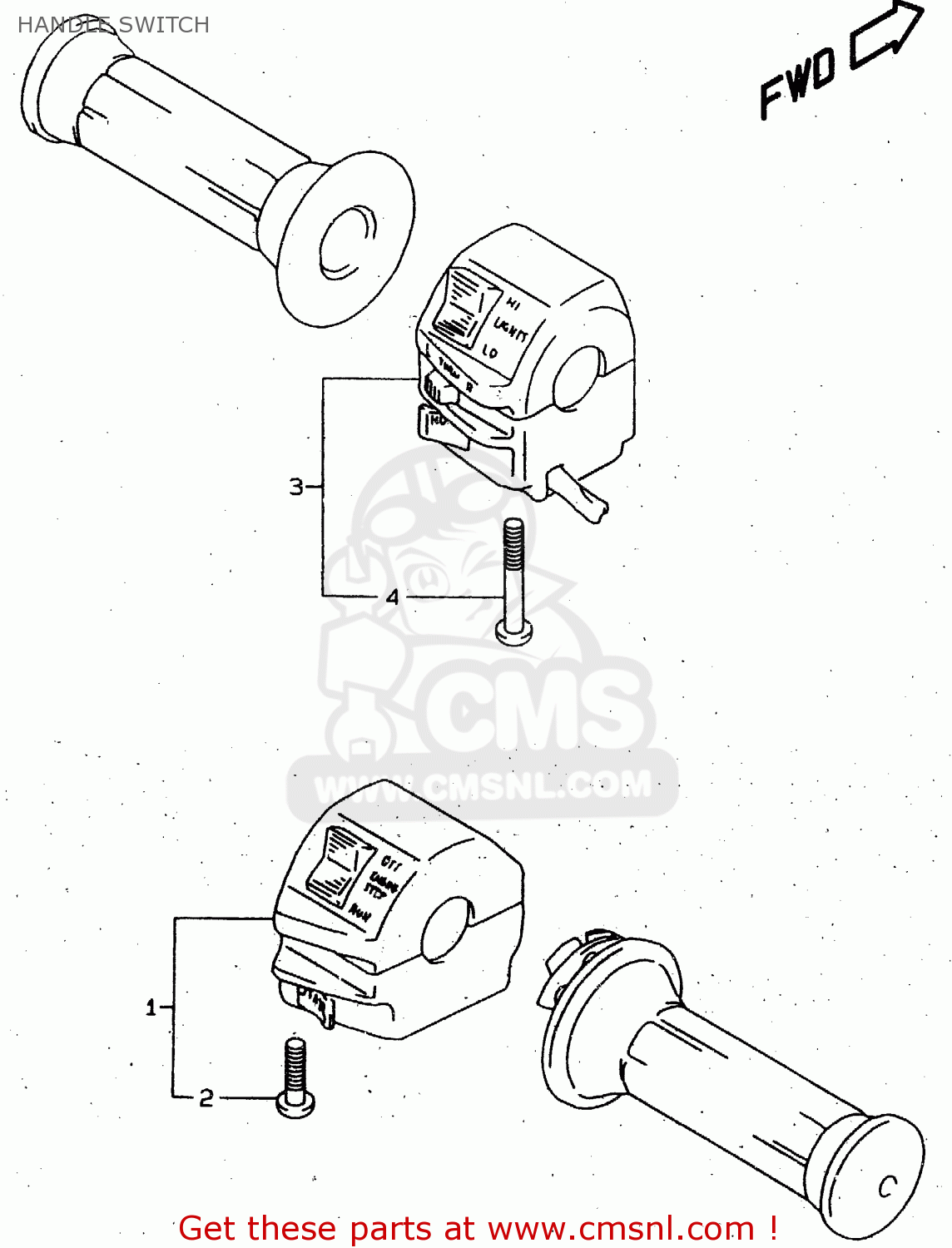

Handle switch diagram GN125U 1999 (X) GERMANY (E22)

HANDLE SWITCH GN125U 1999 (X) GERMANY (E22)

HANDLE SWITCH GN125U 1999 (X) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

3720045C03
ref: 1
GN125V/W

SWITCH ASSY,HANDLE,R

€ 129.00

1

3720045C12
ref: 1
GN125EV/EW

SWITCH ASSY,HANDLE,R

€ 92.50

2

0211205453
ref: 2

SCREW

€ 4.00

3

3740006B12
ref: 3

SWITCH ASSEMBLY,HANDLE,LEFT

€ 102.00

4

0211205453
ref: 4

SCREW

€ 4.00
