FRONT MASTER CYLINDER

GN125U 1999 (X) GERMANY (E22)

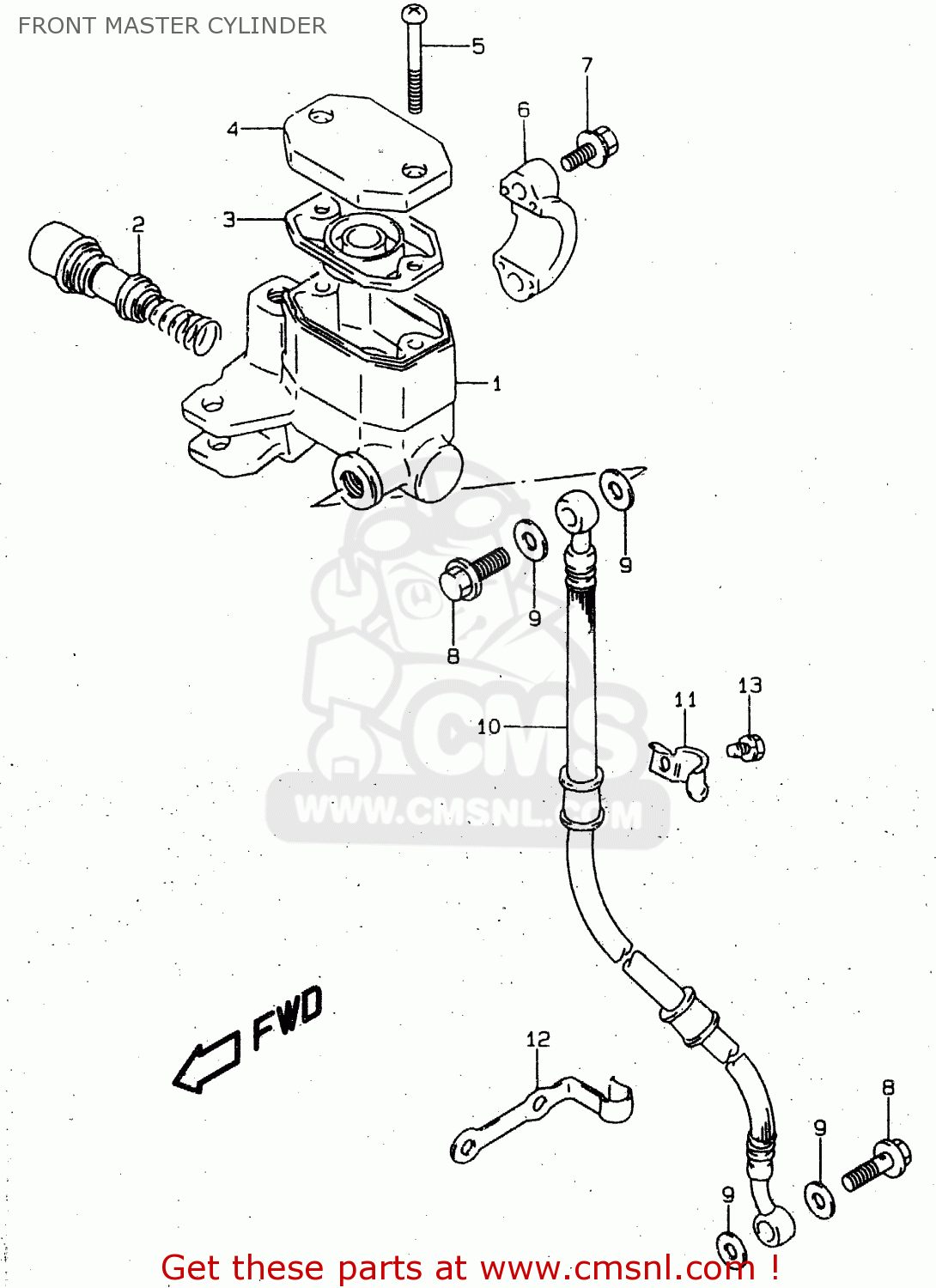

Front master cylinder diagram GN125U 1999 (X) GERMANY (E22)

FRONT MASTER CYLINDER GN125U 1999 (X) GERMANY (E22)

FRONT MASTER CYLINDER GN125U 1999 (X) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

5960005360
ref: 1

CYLINDER ASSY,FR MASTER

€ 263.00

2

5960004810
ref: 2

PISTON/CUP SET

€ 37.50

3

5966736500
ref: 3

DIAPHRAGM

€ 8.00

4

5966936510
ref: 4

CAP

€ 9.00

5

5969136500
ref: 5

SCREW

€ 1.50

6

5967105300
ref: 6

HOLDER

€ 13.00

7

5967519C00
ref: 7

BOLT(6X25)

€ 3.00

8

0936010039
ref: 8

BOLT UNION

€ 6.50

9

0916110009
ref: 9

WASHER(10X15X1.5)

€ 2.00

10

5948005350
ref: 10

HOSE,FR BRAKE

€ 86.50

11

5924639100
ref: 11

CLAMP,BRAKE HOSE

€ 5.00

12

5926811300
ref: 12

CLAMP,BRAKE HOSE

€ 5.50

13

0157006123
ref: 13

BOLT

€ 1.50
