GEAR SHIFTING
GN125U 1999 (X) GERMANY (E22)

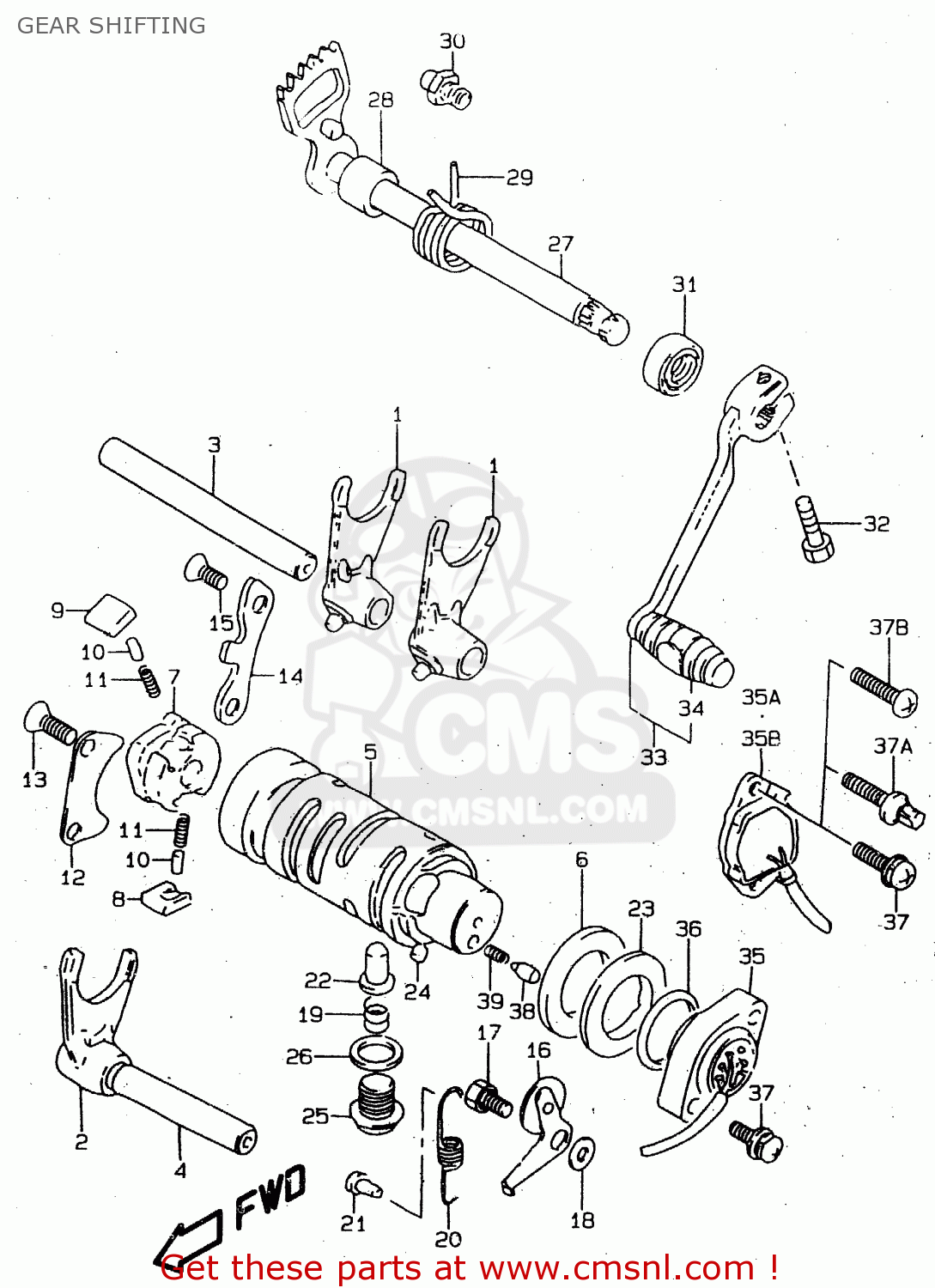

Gear shifting diagram GN125U 1999 (X) GERMANY (E22)
GEAR SHIFTING GN125U 1999 (X) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
2522108300
ref: 1
FORK,GEAR SHIFT NO.2
€ 54.50
2
2523105201
ref: 2
FORK,GEAR SHIFT NO.3
€ 54.50
3
2541116701
ref: 3
<-25411-05201
SHAFT,GEAR SHIFT FORK(L:109)
€ 11.50
4
2542135403
ref: 4
SHAFT,GEAR SHIFT FORK
€ 19.00
5
2531005300
ref: 5
CAM,GEAR SHIFT
€ 75.00
6
0918125251
ref: 6
SHIM(25X40X1)
€ 2.50
7
2532231310
ref: 7
<-25322-31302
GEAR,GEAR SHIFT CAM DRIVEN
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533130001
ref: 12
LIFTER,GEAR SHIFT POLE
€ 3.50
13
0212206123
ref: 13
SCREW
€ 3.00
14
2534105200
ref: 14
GUIDE,GEAR SHIFT CAM
€ 6.50
15
0212206123
ref: 15
SCREW
€ 3.00
16
2535044A00
ref: 16
STOPPER,GEAR SHIFT CAM
€ 8.00
17
0911106054
ref: 17
BOLT(6X14.6)
€ 1.50
18
0821106141
ref: 18
WASHER
€ 2.50
19
0944011016
ref: 19
L:27
SPRING
€ 7.50
20
0944308044
ref: 20
SPRING
€ 1.50
21
0922304001
ref: 21
RIVET
€ 1.50
22
2535130010
ref: 22
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
23
2538145400
ref: 23
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
24
0422104069
ref: 24
PIN
€ 2.00
25
0924714026
ref: 25
PLUG(14X12)
€ 3.50
26
0916814002
ref: 26
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
27
2551005201
ref: 27
SHAFT,GEAR SHIFT
€ 42.50
28
0918012068
ref: 28
SPACER(12X20X15.3)
€ 3.00
29
0944426013
ref: 29
SPRING
€ 3.50
30
2567101000
ref: 30
STOPPER,GEAR SHIFT CAM
€ 3.00
31
0928512002
ref: 31
OIL SEAL
€ 7.00
32
0150006203
ref: 32
BOLT
€ 2.00
33
2560005320
ref: 33
LEVER ASSY,GEAR SHIFT
€ 33.50
34
2565216500
ref: 34
RUBBER,GEAR SHIFT PEDAL
€ 4.00
35
3772047D00
ref: 35
BASE ASSY,NEUTRAL SW TERMINAL
€ 103.50
35
3772044700
ref: 35
GN125V/W/X E4, GN125
BASE ASSY,GEAR SHIFT TERMINAL
€ 83.50
35A
3773005310
ref: 35A
GN125V/W/X E22
BASE ASSY,GEAR SHIFT TERMINAL
€ 88.50
35B
3773005300
ref: 35B
GN125UV/UW/UX E22
BASE ASSY,GEAR SHIFT TERMINAL
€ 88.00
36
0928026003
ref: 36
O-RING (D:2.4 ID:26.2)
€ 2.50
37
0211275203
ref: 37
SCREW
€ 3.00
37A
0911905022
ref: 37A
GN125UV/UW/UX E22
BOLT
€ 2.00
37B
0214205203
ref: 37B
GN125V/W/X E22
SCREW 5X20
€ 2.00
38
0920905011
ref: 38
PIN(5X15.5)
€ 2.00
39
0944004010
ref: 39
SPRING
€ 1.50
